Quick Details
-
Manufacturer recommended age:
-
14 years and up
-
Processor:
-
STM32G071
-
Support firmware:
-
BLHeli_32||AM32
-
BEC:
-
YES
-
Input voltage:
-
DC 7V-33.6V(2-8S Lipo)
-
Continuous current:
-
120A
-
Maximum current:
-
150A
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SEQURE
-
Model Number:
-
28120(BLHeli_32||AM32)
-
Manufacturer recommended age:
-
14 years and up
-
Processor:
-
STM32G071
-
Support firmware:
-
BLHeli_32||AM32
-
BEC:
-
YES
-
Input voltage:
-
DC 7V-33.6V(2-8S Lipo)
-
Continuous current:
-
120A
-
Maximum current:
-
150A
Parameters of Product:
|
Model |
SQESC 28120 |
|
Processor |
STM32G071 |
|
Input voltage |
DC 7V-33.6V (2-8S Lipo) |
|
Continuous current (good heat dissipation) |
120A |
|
Maximum current (good heat dissipation) |
150A |
|
Support firmware |
AM32||BLHEI_32 |
|
BEC(if any) |
5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A adjustable |
|
Signal protocol |
Dshot (All),PWM,Oneshot,Multishot,etc. |
|
Programming parameter adjustment |
Support |
|
Throttle calibration |
Support |
|
Timing angle setting |
Support |
|
Current detection |
Support |
|
Telemetry signal |
Support |
|
Motor steering settings |
Support |
|
RGB LED color lights |
Support |
|
Power cable(if any) |
14AWG |
|
Application scenarios |
Suitable for multi-axis drones, fixed-wing aircraft models, multi-rotor drones, plant protection machines, model ships, RC model cars, and rock crawlers. |

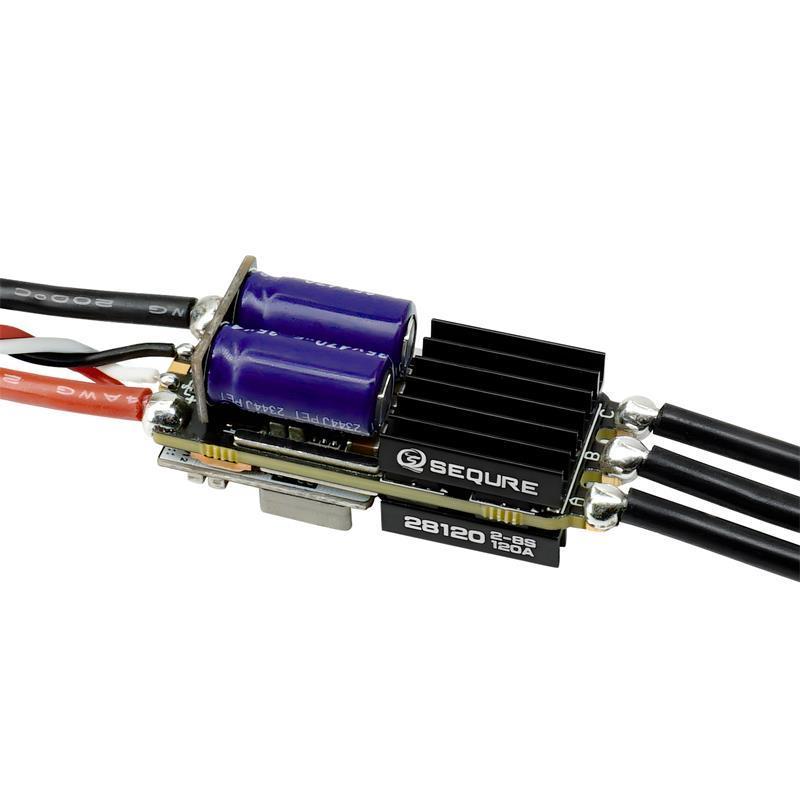

Product Description:
(1) Adopting 32-bit high-performance processor STM32G071, with a working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency.
(2) Adopts high-power MOSFET, and combines with CNC metal radiator, this esc dissipates heat effectively under high current load and works stably & continuously.
(3) Supports multiple protections such as low voltage protection, temperature protection, locked rotor protection, and current protection.
(4) The ESC automatically detects the throttle signal when it is powered on, supports all Dshot signals, and also supports signal protocols such as PWM, Oneshot and Multishot.
(5) Visual programming parameter adjustment tool supports motor timing, throttle calibration, current detection, motor steering, telemetry signal and other settings.
(6) Onboard RGB LED color light settings, multiple LED colors can be customized.
(7)BEC supports adjustable outputs of 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, and 12V/3A, which can directly supply power to external devices such as receivers and servos, making the application of ESC more extensive and flexible .
(8) Widely used in model airplane plant protection machines, multi-rotor drones, RC model ships and cars.
Package:
Size (Including Outer Carton) :200*110*40 mm
Weight (Including Outer Carton) :90.6g
