Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
as per user requirement
-
Dimension(L*W*H):
-
7500*2500*3020mm
-
Weight (KG):
-
13800 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Finished product Type:
-
Hollow blocks/ solid brick / Pave brice
-
Capacity:
-
14000-19000PCS/Day
-
automation:
-
high tech automation
-
Vibration Frequency:
-
2800-4500r/Min
-
Weight:
-
11T
-
Raw material:
-
Cement
-
Product Name:
-
Concrete block making machine paver machine price in pakistan
-
Model:
-
QT10-15F
-
After Warranty Service:
-
Video technical support
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Concrete block making machine
-
Brick Raw Material:
-
Cement
-
Production Capacity (Pieces/8 hours):
-
Other
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Hongfa
-
Voltage:
-
as per user requirement
-
Dimension(L*W*H):
-
7500*2500*3020mm
-
Weight (KG):
-
13800 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Finished product Type:
-
Hollow blocks/ solid brick / Pave brice
-
Capacity:
-
14000-19000PCS/Day
-
automation:
-
high tech automation
-
Vibration Frequency:
-
2800-4500r/Min
-
Weight:
-
11T
-
Raw material:
-
Cement
-
Product Name:
-
Concrete block making machine paver machine price in pakistan
-
Model:
-
QT10-15F
-
After Warranty Service:
-
Video technical support
QT10-15F maquina bloquera automatica paving block making machine interlock bricks maker cinder block making machines for sale
New developed model of

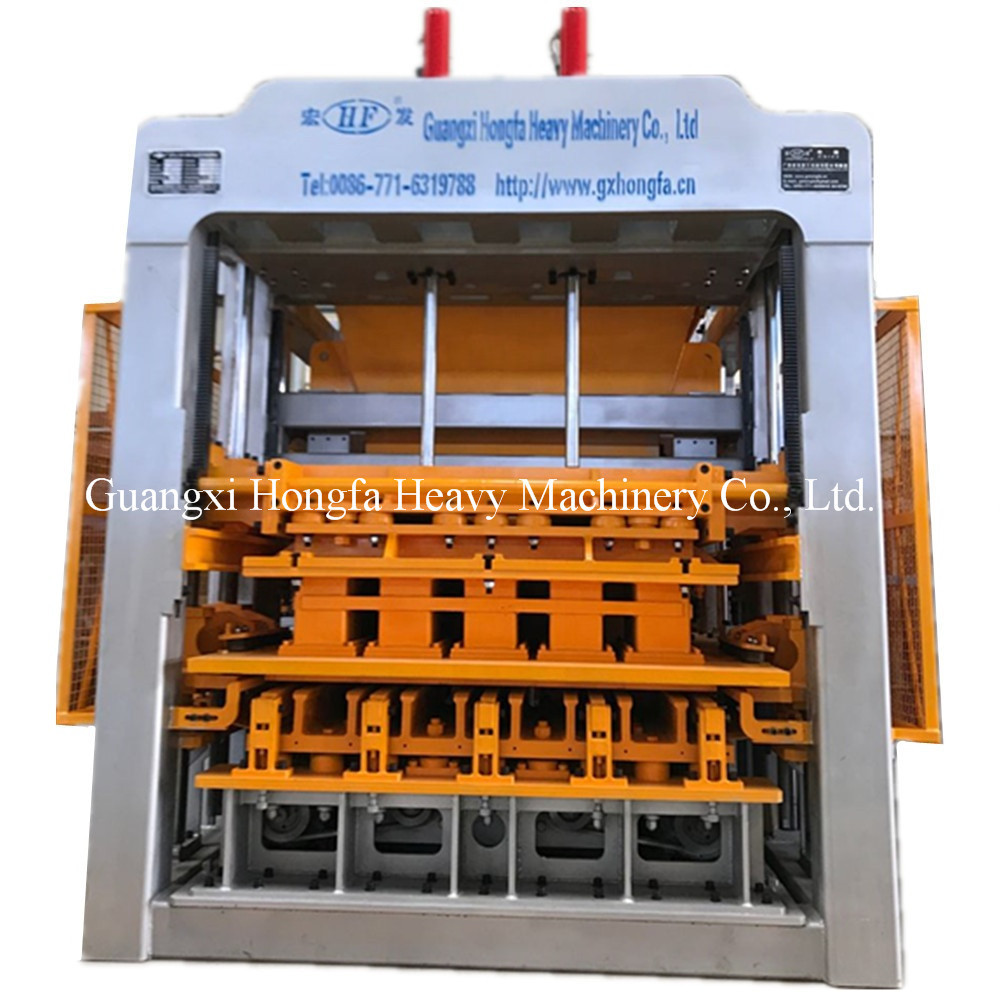

QT10-15F Auto brick maker machine / hydraulic press paving block making machine
1.The main avantage of this brick machine is Super automatic block making machine in higher capacity without the filling material issue in the front row.
2.Moreover, With imported German technology, imported PLC (Siemens) PLC intelligent control component so ensure its quality.Intelligent system, all the brick making process can be programmed.
3.Compact mechanical construction guarantees finished product quality and equipment life and reduces maintenance costs.
QT10-15F maquina bloquera automatica paving block making machine interlock bricks maker cinder block making machines for sale
Product Description
QT10-15F maquina bloquera automatica paving block making machine interlock bricks maker cinder block making machines for sale
A- The advantage of Molding Machine:
1- With Siemens PLC control system and Touch-operating Panel, Double Delta frequency converters, use less labor. Saving 2
5% energy
compared to the same industry in the market.
2-Hydraulic transmission,mechanical vibration, hydraulic pressing and forming are adopted
3- Adopting the advanced forced material-feeding & distributing device, More durable.
4- The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault.
Productivity
| Main Technical Specifications. | |
| OveralDimension | 7500×2500×3020(mm) |
| Rated pressure | 21MPa |
| Main vibration form | Platform vibration |
| Cycle Time | 15-20 seconds |
| Vibrating Frequency | 2800-4500 rolls/minute |
| Motors Power | 49KW |
| Pallet size | 1220*900*25mm/30mm |
Capacity for produce kinds of blocks
| Item | Size(mm) | Molding cycle | Pcs/mould | Pcs/hour | Pcs/8hour | Technical Parameter | |
| Hollow block | 400*200*200 | 15-20s | 10 | 1800-2400 | 14200-19200 | Dimension(mm) | 7500*2100*3020mm |
| Solid block | 240*115*53 | 15-17s | 56 | 11850-13440 | 94900-107500 | Power(kw) | 53 |
| Paving block | 220*110*50 | 20-25s | 35 | 5040-6300 | 40300-50400 | Pallet size (mm) | 1220*900 |
QT10-15F maquina bloquera automatica paving block making machine interlock bricks maker cinder block making machines for sale
B. The control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trained one to the operator.
It could make many kinds of color-faced pavement tiles, color-faced grass-planting bricks and curb bricks, as well hollow blocks and interlocking wall bricks by changing different molds.
QT10-15F maquina bloquera automatica paving block making machine interlock bricks maker cinder block making machines for sale
QT10-15F maquina bloquera automatica paving block making machine interlock bricks maker cinder block making machines for sale
Economic outlook:
Popular building material in the world. Fly ash/sand baking-free brick will gradually replace clay brick (common brick) in the near future.
Kind of successful
QT10-15F maquina bloquera automatica paving block making machine interlock bricks maker cinder block making machines for sale
QT10- 15F hydraulic maquina bloquera paving block making
machine interlock bricks maker cement block making machine
