Quick Details
-
Voltage:
-
220 380 400 V
-
Dimension(L*W*H):
-
2400*1800*900mm
-
Application:
-
furniture
-
Weight (KG):
-
700 KG
-
Power (kW):
-
9kw
-
Max.Cutting Height at 90°(mm):
-
90mm
-
Max.Cutting Height at 45°(mm):
-
60mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Product name:
-
combination table saw
-
Tilting saw blade:
-
45-90 degree
-
Saw working table size:
-
220*1200mm
-
speed of main saw blade:
-
4500-6000rpm/min
-
Planer working table size:
-
300*1500mm
-
Thicknesser working table size:
-
300*660mm
-
Shaper working table size:
-
220*1000mm
-
Mortiser working table size:
-
250*500mm
-
Weight:
-
700kgs
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WFSEN
-
Usage:
-
Saw ,Shaper, Mortiser, Planer, Thicknesser
-
Voltage:
-
220 380 400 V
-
Dimension(L*W*H):
-
2400*1800*900mm
-
Application:
-
furniture
-
Weight (KG):
-
700 KG
-
Power (kW):
-
9kw
-
Max.Cutting Height at 90°(mm):
-
90mm
-
Max.Cutting Height at 45°(mm):
-
60mm
-
Max. Length of Workpiece (mm):
-
3200mm
-
Product name:
-
combination table saw
-
Tilting saw blade:
-
45-90 degree
-
Saw working table size:
-
220*1200mm
-
speed of main saw blade:
-
4500-6000rpm/min
-
Planer working table size:
-
300*1500mm
-
Thicknesser working table size:
-
300*660mm
-
Shaper working table size:
-
220*1000mm
-
Mortiser working table size:
-
250*500mm
-
Weight:
-
700kgs
WFSEN 5 in 1 3in1 horizontal wood woodworking combinate multifunction table saw machine with planer

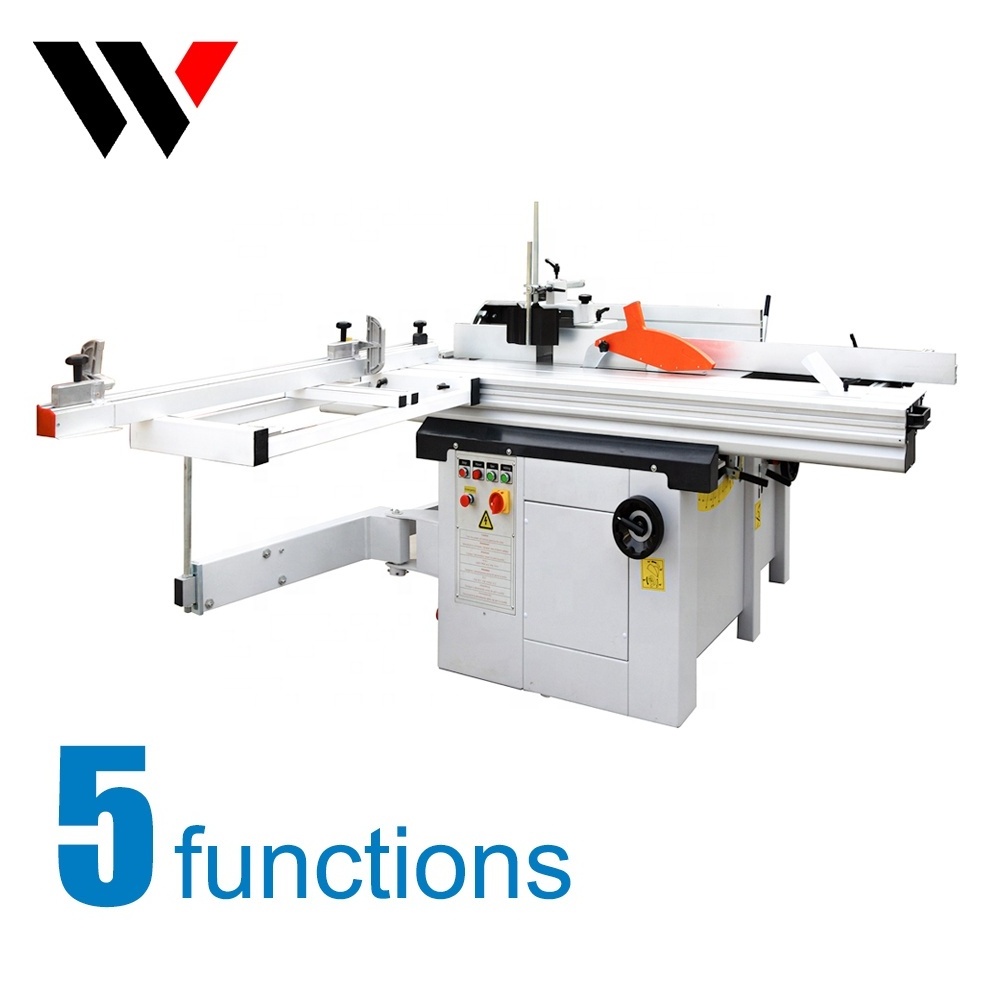

MJ300T/400S Combination table saw
5 Functions: Saw + Planer + Thincknesser + Shaper + Mortiser
|
|
|
Vertical panel saw Horizontal band saw Horizontal panel saw
Full auto edge banding machine CNC Router Hot Press
|
|
Wide belt sanding mahcine Brush polishing machine Cold press
D ovetail tenoner machine Hinge drill machine Dust collector
Vacuum membrance press machine Manual edge bander 4 side planer moulder
——— Technical Parameter
| Model | MJ300T /400S | ||
| 5 Functions | Saw ,Shaper, Mortiser, Planer, Thicknesser | ||
| Saw 90°/45° | |||
| Blade diameter | 300*30mm | Cutting width parallel fence | 500/730mm |
| Engraver blade diameter | 90*22mm | Sliding table size | 1250/1800mm |
| Working tables | 220*1000mm/326*1112mm | Shaft rotationn speed engraver | 4500/7000r.p.m |
| Planer | |||
| Cutter block diameter | 70mm | Max table adjustment | 4mm |
| Working tables |
300*1500mm/400*1800mm |
Shaft rotation speed |
5700r.p.m |
|
Thicknesser |
|||
|
Feed speed |
7m/min | Working height | 4-220(mm) |
|
Working tables |
300*660mm/400*760mm | Max.cutting height | 4mm |
|
Shaper |
|||
|
Standard shaft diameter |
30/35/50mm | Shaft vertical stroke | 115mm |
|
Working tables |
220*1000mm/290*1112mm | Max.tool diameter | 180mm |
|
Motiser |
|||
|
Longitu dinal stroke |
205mm | Trasveral stroke | 95mm |
|
Vertical stroke |
90mm | Churck | 0-16mm |
|
Total |
|||
|
Power |
3*2.2kw/3*3kw |
Weight | 700kgs/800kgs |
|
Overall size |
1700*1200*1100mm/2000*1300*1100mm |
||
——— Functions show
Multi functional electric combined combination wood saw planer thicknesser mortiser working machine
Multi functional electric combined combination wood saw planer thicknesser mortiser working machine
Multi functional electric combined combination wood saw planer thicknesser mortiser working machine
