Quick Details
-
Material:
-
Zinc Alloy Body
-
Color:
-
Silver/ Golden/ Bronze/ Black/ White
-
Type:
-
Cabinet lock, Locker lock
-
Card Type:
-
IC/RF/METIC/M1 Card
-
Unlocking Way:
-
Cards+Code
-
Low Voltage warming:
-
Yes
-
Warranty:
-
1 year, lifetime maintenance
-
Certification:
-
CE FCC ROHS
-
Application:
-
Hotel/Apartment/Modern Office/Campus/Dormitory
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Tediton
-
Model Number:
-
H08
-
Material:
-
Zinc Alloy Body
-
Color:
-
Silver/ Golden/ Bronze/ Black/ White
-
Type:
-
Cabinet lock, Locker lock
-
Card Type:
-
IC/RF/METIC/M1 Card
-
Unlocking Way:
-
Cards+Code
-
Low Voltage warming:
-
Yes
-
Warranty:
-
1 year, lifetime maintenance
-
Certification:
-
CE FCC ROHS
-
Application:
-
Hotel/Apartment/Modern Office/Campus/Dormitory

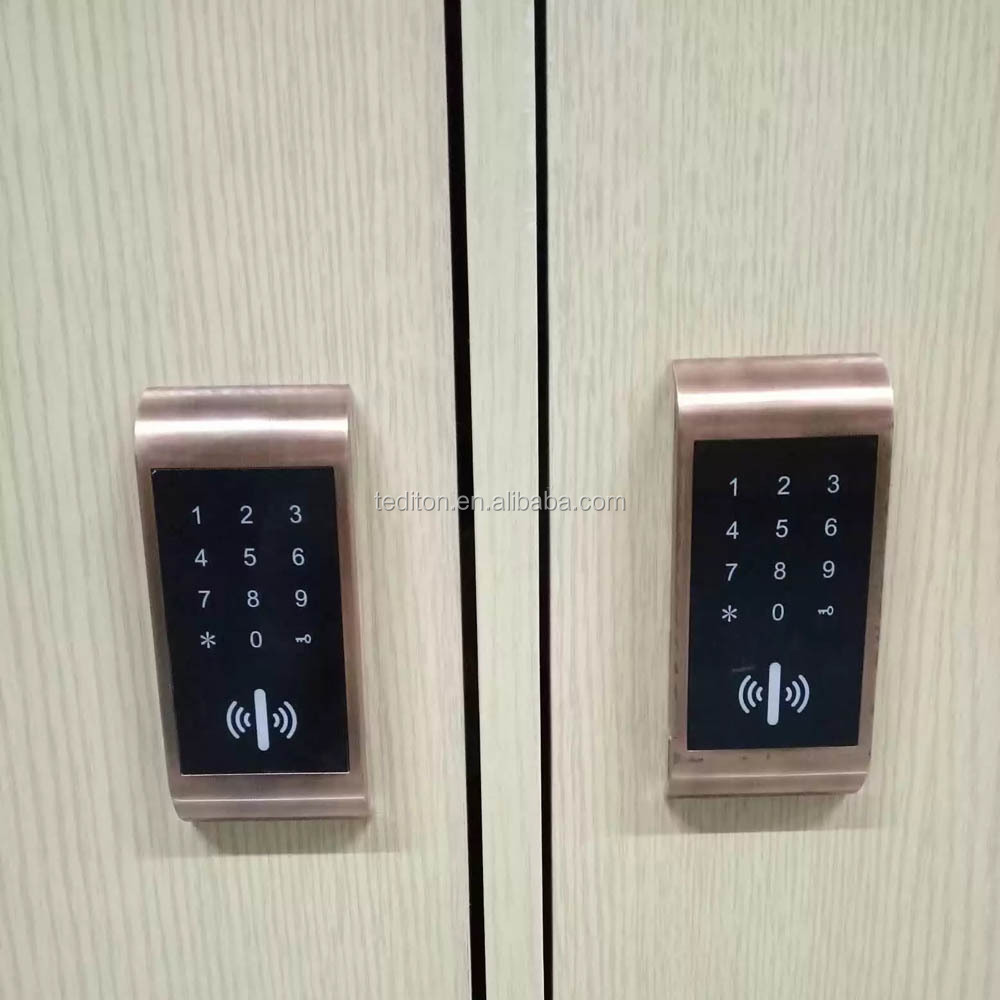

Electronic Keyless Smart Combination Code Locker Locks For Spa Hotel Gym Locker
FEATURES
1. Single card unlocking or double card unlocking both available
2. With rebound function
3. Card in plastic wristband or watchband – waterproof, moisture proof, anti-corrosion
4. External power supply for emergency unlocking.
5. Mechanical keys available in some certain case
TECHNICAL PARAMETER
|
Material |
Zinc Alloy |
|
Finish |
Chorme Plated/ PVD Gold/ Antique Brass/Red Patina |
|
Unlocking Card |
TM/ EM/ M1 card one/ ID |
|
Unlocking methods |
Single card/ Double cards |
|
Four level management |
Master card, manager card, service card, guest card. |
|
Starting time |
<1 second |
|
Master card capacity |
1 |
|
Guest card capacity |
16 |
|
Working Voltage |
Direct current 1.5V, 4 pieces of 2A alkaline battery |
|
Battery Life Span |
over 15 months |
|
External power interface |
Yes |
|
Static power consumption |
<5μA |
|
Dynamic power consumption |
About 200 mA |
|
Working temperature |
- 30 to 80 degreed celsius |
|
Working humidity |
<95% |
|
The battery lift |
Open door for 1000times |
|
Working Humidity |
≤ 80% |
|
Lock Weight |
2.8~3.4kg |
|
Warranty |
1 year, lifetime maintenance |
PRODUCT DETAILS
COLOR OPTIONS
ACCESSORIES ADN INSTALLATION
S etting Methods (the factory has set up a good card, if you need to reset click 6 step method)
1.
Manage card
:
the card can be directly open the lock.(the factory has been set up card)
2.
Single card to open the door
:
touch the manage card → blue lights flashing → touch the guest card → after stop flashing →the guest card to open the door.
* Note: if set up a new guest card, the new guest card to open the door, previous guest card cannot open the door.
3.
Clear all Settings
:
Manage card touch 5 times, sound - drops 2 long ring with blue lights flash 2 times, all the unlocking information all set to empty.
*Note: only keep manage card function.
4.
Through the initialize button to empty all information
:
Through a hole on the back of the lock core, using tools button switch 2 seconds, di a sound blue lights flashing, after the lights went out all the information to empty. According to the first step after (empty set can use)
Waterproof Smart wristband options
