Quick Details
-
Product name:
-
12000rpm Medical Lab Hematocrit Centrifuge
-
Applications:
-
Hospitals,Veterinary clinics,Food labs,Universities & colleges
-
Max.Speed:
-
16500rpm
-
Max.RCF:
-
19480xg
-
Max.Capacity:
-
10*5ml
-
Matched Rotors:
-
Fixed angle rotors + Capillary rotor
-
Display:
-
LCD
-
Certification:
-
CE, ISO13485,ISO9001, SFDA
-
Speed accuracy:
-
±10r/min
-
Noise:
-
Less Than 55 dB(A)
Quick Details
-
Brand Name:
-
MKE
-
Model Number:
-
TG16W
-
Place of Origin:
-
Hunan, China
-
Product name:
-
12000rpm Medical Lab Hematocrit Centrifuge
-
Applications:
-
Hospitals,Veterinary clinics,Food labs,Universities & colleges
-
Max.Speed:
-
16500rpm
-
Max.RCF:
-
19480xg
-
Max.Capacity:
-
10*5ml
-
Matched Rotors:
-
Fixed angle rotors + Capillary rotor
-
Display:
-
LCD
-
Certification:
-
CE, ISO13485,ISO9001, SFDA
-
Speed accuracy:
-
±10r/min
-
Noise:
-
Less Than 55 dB(A)
High Speed Lab Clinical Cell Centrifuge Benchtop High Speed Microcentrifuge 12000rpm Medical Lab Hematocrit Centrifuge
Guarantee & Service
✔ All MKE Centrifuge, One-year full unit warranty, 3 years for the compressor, and 5 years for the motor warranty.
✔ An extended warranty option is available for an additional fee.
✔ Factory maintenance includes freight and customs.
✔ Lifelong technical support. Remote technical support and on-site training.
✔ Distributor assistance for installation and maintenance.
Products Description

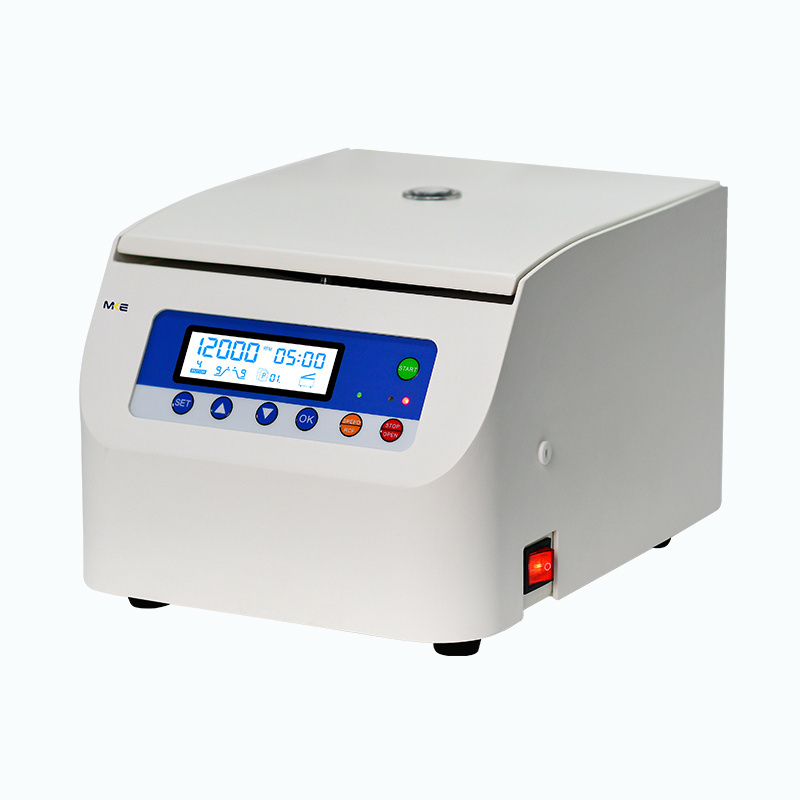

TG16W Benchtop High-Quality
Medical Lab Hematocrit Centrifuge.
The TG16W
Hematocrit centrifuge
is furnished with fixed-angle rotors suitable for 2ml to 5ml microcentrifuge tubes. It finds extensive utility across laboratories, chemical facilities, hospitals, and in any domain requiring high-speed functionality for micro-capacity tasks. Additionally, it features a rotor specially designed for centrifuging micro hematocrit capillary tubes, accommodating up to 24 capillaries per run.
As a versatile laboratory instrument, it serves various purposes, including the separation and processing of small sample volumes. This centrifuge is a staple in laboratories for a multitude of applications such as biological sample separation, DNA analysis, cell culture, and biochemistry tasks.
|
Applications:
|
Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs,
Cell culture labs,Infant stations |
|
Max.Speed
|
16500rpm
|
|
Max.RCF
|
19480xg
|
|
Max.Capacity
|
10*5ml
|
|
Matched Rotors
|
Fixed angle rotors
|
|
Display
|
LED Display
|
|
Model Number:
|
TG16W
|
|
Certification:
|
CE, ISO13485,ISO9001, SFDA
|
Features
· Compact and space-saving High-Speed
Medical Lab Hematocrit Centrifuge.
· Speed range up to 16500 r/min
· Max.RCF: 19480xg
· Max.capacity: 10*5ml
· Microprocessor control with
frequency conversion A.C. motor drive.
· High Speed
Medical Lab Hematocrit Centrifuge
TG16W Features Quiet technology,
"low noise" patent
certificate recognized, the highest speed operation noise is
less than 55 decibels(patent no. ZL201721835868.9).
· High Speed Laboratory
Medical Lab Hematocrit Centrifuge
TG16W has
Three levels of damping system
, 10 kinds of Lifting and lowering speed curve,
30 self-defined operating procedures
can be stored and recalled, can meet different experimental needs.
· LED Display the parameters of Speed, Timer, RCF, Rotors, Program(Memory), Acceleration& Deceleration information and Error code information.
· Easily exchangeable rotors
· Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
· With over-speed, over-temperature, electronic safety door lock and other multi-level protection functions to ensure the safety of man and machine.
· Emergency lid-lock release when power failure.
· Gas hinge for lid drop protection.
Hematocrit centrifuge
Specification
|
Speed range(rpm)
|
0-16500rpm adjustable
|
Time range
|
1-99minutes 59s adjustable
|
|
Max Capacity(ml)
|
10*5ml
|
Speed accuracy
|
±10r/min
|
|
RCF range (xg)
|
0-19480xg adjustable
|
Dimension(mm)
|
340*260*220mm
|
|
Noise(dBA)
|
≦55dB(A)
|
Net weight(without rotor)
|
15KGS
|
|
ACC/DEC
|
1-10 rates
|
Power supply
|
AC220V,50HZ,10A, 400W
|
ACCESSORIES
All rotors are autoclavable and customized.
|
No.
|
Item
|
Capacity
|
Max. speed
|
Max.RCF
|
Note
|
|
NO.1
|
Angle rotor
|
12×1.5/2.2ml
|
16500r/min
|
19175xg
|
PP/PC tube
|
|
|
Adapter
|
12×0.5/0.2ml
|
|
|
PP/PC tube
|
|
NO.2
|
Angle rotor
|
10×5ml
|
16500r/min
|
19480xg
|
PP/PC tube
|
|
|
Adapter
|
10×1.5ml
|
|
|
PP/PC tube
|
|
NO.3
|
Capillary rotor
|
24 pieces
|
12000r/min
|
13684xg
|
Capillary tube
|
The respective max. capacities of the rotors are shown in the tables. Naturally, adapters are available for smaller volumes. Please Contact us directly for more details.
If you cannot find the required adapter, we will gladly make a custom adapter for you.
NO.1
NO.3
NO.2
