Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Drill carriage
-
Certificate:
-
ISO CE
-
Material:
-
Carbon Steel
-
Color:
-
Customer's Request
-
Power:
-
have different
-
Working pressure:
-
0.7-2.5Mpa
-
F.A.D:
-
8-20m³/min
-
Quality:
-
high level
-
Pull up Force:
-
25Kn
-
After service:
-
on online support
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
The Nile
-
Weight:
-
20000 KG
-
Marketing Type:
-
Hot Product 2021
-
Product name:
-
Drill carriage
-
Certificate:
-
ISO CE
-
Material:
-
Carbon Steel
-
Color:
-
Customer's Request
-
Power:
-
have different
-
Working pressure:
-
0.7-2.5Mpa
-
F.A.D:
-
8-20m³/min
-
Quality:
-
high level
-
Pull up Force:
-
25Kn
-
After service:
-
on online support
Product Description
The hole drill rig for open use is an improved device in compliance with national regulations on environmental protection Equipped with the Yuchai double-cylinder engine (China ll). the drill rig meets the national standards for emissions an environment. The flexible derricking mechanism is suitably qualified for horizontal drilling at a low level.

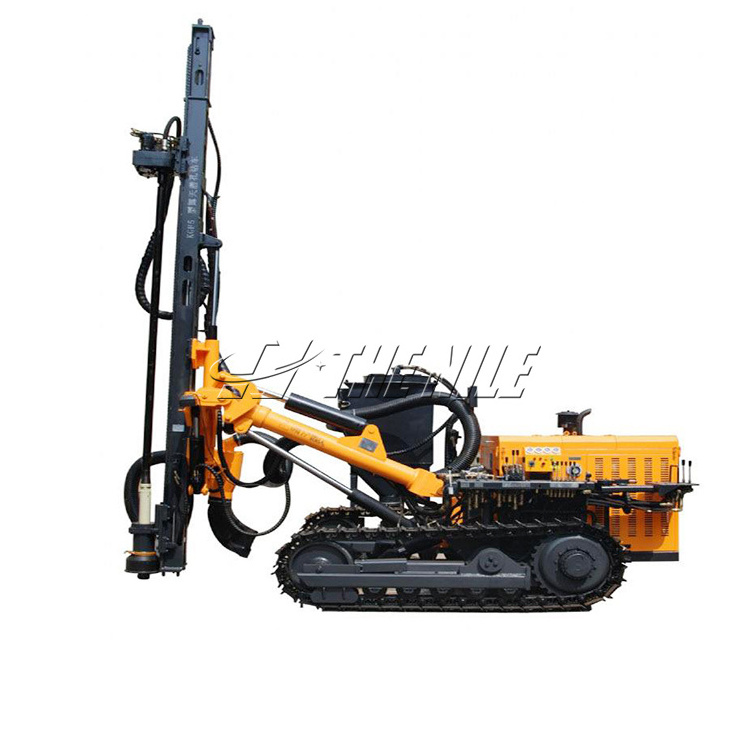

Drill carriage
The hole drill rig for open use is an improved device in compliance with national regulations on environmental protection Equipped with the Yuchai double-cylinder engine . the drill rig meets the national standards for emissions an environment. The flexible derricking mechanism is suitably qualified for horizontal drilling at a low level. The hydraulic system has been proved, leading to increased system flow and rotary speed Moreover, the hydraulic cylinder has been optimized, thus making it more reliable, and the additional ring(plate)makes handling and lifting easier.
The down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment friendly and reliable.
Feature:
1. Has free relaxed fluctuation system, hydraulic lifting device casing.
2. Large working range, strong terrain adaptability, and high efficiency.
3. The side swing mechanism is adopted to realize all-round drilling.
4. The frame part is made of high-strength steel, the overall structure is strong and durable.
5. The tubing drag chain can avoid the friction between the tubing and the guide rail, protect the tubing and increase the service life.
6. The power head part can adjust the rotation speed according to the softness of the rock layer, achieve a smooth high torque output.
Application
Technical Data
|
Main Specifications
|
ZGYX-412A/ZGYX-412A-1-1
|
|
Engine
|
XICHAI 4DW91-50GBG3U 36.8KW/YUCHAI YC4DK80 58KW (Dust collection as standard equipment)
|
|
Drill pipe size
|
Φ60*2000mm
|
|
Hole Dia
|
Φ90-110mm
|
|
Rotation Torque(Max)
|
1650N.m
|
|
Rotation speed
|
70-150rpm
|
|
Working pressure
|
0.7-2.5Mpa
|
|
F.A.D
|
8-20m³/min
|
|
Feed Force
|
15Kn
|
|
Pull up Force
|
25Kn
|
|
Feed type
|
Chain/Cylinder
|
|
Tramming speed(Max)
|
2.5km/h
|
|
Gradient
|
25°
|
|
Total weight
|
3600KGS/4000KGS
|
|
Transportation Dimensions
|
4900*2000*2200mm
|
Packing & Delivery
Standard package in wooden boxes or containers
