Quick Details
-
Ink Type:
-
Eco Solvent Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Acetek
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
L2700mm X W750mm X H720mm
-
Weight:
-
250kG(grossKGKG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
eco printer with dx5 dx11 head
-
Max Print Width:
-
1.6/1.8/2.5/3.2m avaible
-
printing solution:
-
hight resolution 1440dpi
-
head:
-
dx5/dx11/xp600
-
Software:
-
maintop 5.3 or photo print10
-
ink color:
-
C,M,Y,K,LC,LM
-
ink type:
-
Original eco solvent ink
-
net weight:
-
200KG
-
gross weight:
-
250KG
Quick Details
-
Print Dimension:
-
1.6/1.8/1.9/2.5mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Eco Solvent Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Acetek
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
L2700mm X W750mm X H720mm
-
Weight:
-
250kG(grossKGKG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
eco printer with dx5 dx11 head
-
Max Print Width:
-
1.6/1.8/2.5/3.2m avaible
-
printing solution:
-
hight resolution 1440dpi
-
head:
-
dx5/dx11/xp600
-
Software:
-
maintop 5.3 or photo print10
-
ink color:
-
C,M,Y,K,LC,LM
-
ink type:
-
Original eco solvent ink
-
net weight:
-
200KG
-
gross weight:
-
250KG
Product Overview

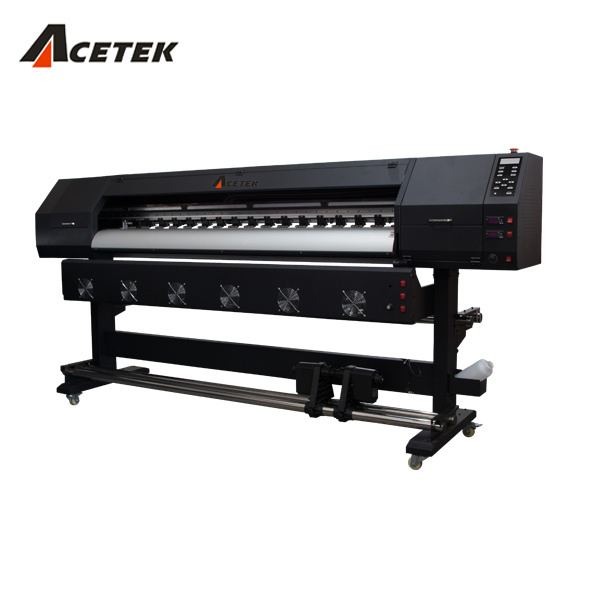

1.8m 3.2m dx5 eco solvent plotter xp600 eco solvent printer price for digital advertising printing
Advantages:
1. 1/2/4 pieces of DX5/XP600 Print heads, 180 nozzles*8 Lines*1, high quality up to 1440dpi
2. Automatic ink maintenance station is more convenient and stable.
3.We are the ONLY one to use Dual Brushless Servo Motor in piezo series’s quality with more than ten years service life
4. 1600/1800/2500/3200mm printing width
FEATURES AT A GLANCE
Left
Right
Back
PRODUCT SPECIFICATIONS
|
No
|
TC1800
|
|
TC1802
|
|
|||
|
print head
|
1 pc of xp600
|
1 pc of dx5
|
2 pcs of xp600
|
2 pcs of dx5
|
|||
|
inks
|
4 color CMYK or
6 color CMYK +LC + LM
|
|
|
|
|||
|
print width
|
1.6m/1.8m
|
|
|
|
|||
|
printing resolution
|
1440 dpi
|
infrared
|
infrared
|
infrared
|
|||
|
printing
speed
|
draft mode: 18 ㎡/h
production mode: 15 ㎡/h
quality mode: 13 ㎡/h
|
|
draft mode: 35 ㎡/h
production mode: 30 ㎡/h
quality mode: 20 ㎡/h
|
|
|||
|
rip
software
|
maintop
photoprint
|
maintop
photoprint
|
maintop
photoprint
|
maintop
photoprint
|
|||
|
power
|
600w
|
600w
|
700w
|
700w
|
|||
|
voltage
|
AC220V/11V 50-60 HZ
|
|
|
|
|||
|
operation system
|
win xp/ win 7
|
|
|
|
|||
|
dimensions
|
2870*703*630mm
200kg
1.3CBM
|
|
3040*890*770mm
250KG
2CBM
|
|
|||
|
infrared
|
no
|
no
|
equipped
|
equipped
|
|||
|
automatic print head cleaning
|
1 set
|
1 set
|
1 set
|
1 set
|
|||
|
heating system
|
1 set
|
1 set
|
1 set
|
1 set
|
|||
|
automatic media feeding system
|
1 set
|
1 set
|
1 set
|
1 set
|
|||
|
automatic media taking-up system
|
1 set
|
1 set
|
1 set
|
1 set
|
|||
|
fans system
|
1 set
|
1 set
|
1 set
|
1 set
|
|||
|
platform suction control
|
1 set
|
1 set
|
1 set
|
1 set
|
|||
|
interface
|
usb
|
|
|
|
|||
PRODUCT CONFIGURATION
leadshine integrated servo motor
media feeding motor
hoson board
hoson is a famous professional brand
(one-year warranty)
Italy Magadyne belt
heating system: three-stage heating
1: pre heating, middle heating: Platen heater are installed inside platform to ensure good ink absorption
2: Post heating: infrared heating tubes and cold drying fans are working together to quickly and fully dry up the finished media.
3: There is a PID temperature controller to control three-stage heating temperature
2: Post heating: infrared heating tubes and cold drying fans are working together to quickly and fully dry up the finished media.
3: There is a PID temperature controller to control three-stage heating temperature
Drying system: 5 drying fans
cold fans are working together with infrared heating to speed up drying of finished printing
Japan THK linear guide rail with mute glider and aluminium beam
look at those little holes which can open and close
automatically. They work
as an
high-suction vacuum
t
o give
negative pressure
suction fan to ensure media is 100% flat. So carriage can move
smoothly and print media cling tightly to platform.
control panel
English& Chinese control panel with error report function.
easy to operate
1500ml bulk ink tank
Continuous ink supply system
integrated aluminium alloy platform
original Japan brand guide rail to guarantee accurate and silent movement of print head carriage
Straightness accuracy: 0.1mm
flatness accuracy: 0.05mm
Straightness accuracy: 0.1mm
flatness accuracy: 0.05mm
Germany IGUS drag chain
High quality and strong
Cleaning system: automatic capping station
can clean and moisturize print head nozzles automatically to make operation and maintenance more convenient.
Laser cutting machine frame
media taking up system rollers
media loading system
pinch roller
firmly press media to protect print heads
print head the height of print heads can be adjusted according to media type.
emergency switch
In case of emergency, press the emergency switch to stop power quickly to print print head.
temperature controller
