Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Different types
-
Weight:
-
800 KG
-
Marketing Type:
-
NEW
-
Warranty of core components:
-
2 years
-
Core Components:
-
Main parts
-
Product name:
-
Gold Trommel Wash Plant
-
Application:
-
alluvial gold washing and separation
-
Quality:
-
high reputation
-
Material:
-
Steel PU etc.
-
Local Service Location:
-
Chile
-
Certification:
-
ISO CE
Quick Details
-
Production Capacity:
-
99%
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
Gelin
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Different types
-
Weight:
-
800 KG
-
Marketing Type:
-
NEW
-
Warranty of core components:
-
2 years
-
Core Components:
-
Main parts
-
Product name:
-
Gold Trommel Wash Plant
-
Application:
-
alluvial gold washing and separation
-
Quality:
-
high reputation
-
Material:
-
Steel PU etc.
-
Local Service Location:
-
Chile
-
Certification:
-
ISO CE
Products Description
Small Scale Gold Mining Equipment Trommel Screen with Sluice Box Carpet Washing Machine
Trommel screen also known as rotary screen, is a kind of mechanical screen machine for separating mineral ore material, mainly used in the gold wash plant and solid waste treatment industry. The trommel controls the mineral separation by the size of the particles, and the separation precision is high.
Gelin Provide different specifications trommel screen with Stationary and Mobile Type;
Sieve size, Layer quantity, Power type, Wheel type... can be customization as required.
Stationary Type:
Gelin Provide different specifications trommel screen with Stationary and Mobile Type;
Sieve size, Layer quantity, Power type, Wheel type... can be customization as required.
Stationary Type:
|
Stationary Type
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Capacity (t/h)
|
Power(kw)
|
Screen Diameter (mm)
|
Screen Length(mm)
|
Input Size (mm)
|
Output Size (mm)
|
Dimension (L*W*H)(mm)
|
Weight
(kg) |
||||||||
|
TW1015
|
50
|
3
|
1000
|
1500
|
≤300
|
0-100
|
2600×1400×1700
|
2200
|
||||||||
|
TW1020
|
100
|
4
|
1000
|
2000
|
|
|
3390×1400×2140
|
2800
|
||||||||
|
TW1225
|
160
|
5.5
|
1200
|
2500
|
|
|
4146×1600×2680
|
4200
|
||||||||
|
TW1530
|
250
|
7.5
|
1500
|
3000
|
|
|
4460×1900×2820
|
5100
|
||||||||
|
TW1545
|
350
|
11
|
1500
|
4500
|
≤400
|
|
5960×1900×3080
|
6000
|
||||||||
|
TW1848
|
450
|
15
|
1800
|
4800
|
|
6500×2350×4000
|
|
7500
|
||||||||
|
TW2055
|
600
|
22
|
2000
|
5500
|
|
7500×2550×4800
|
|
9600
|
||||||||
|
TW2265
|
800
|
30
|
2200
|
6500
|
|
8500×2750×5000
|
|
12800
|
||||||||
|
Note: above parameter is for reference,Screen Size,Layer,etc can be customized as required
|
|
|
|
|
|
|
|
|
||||||||

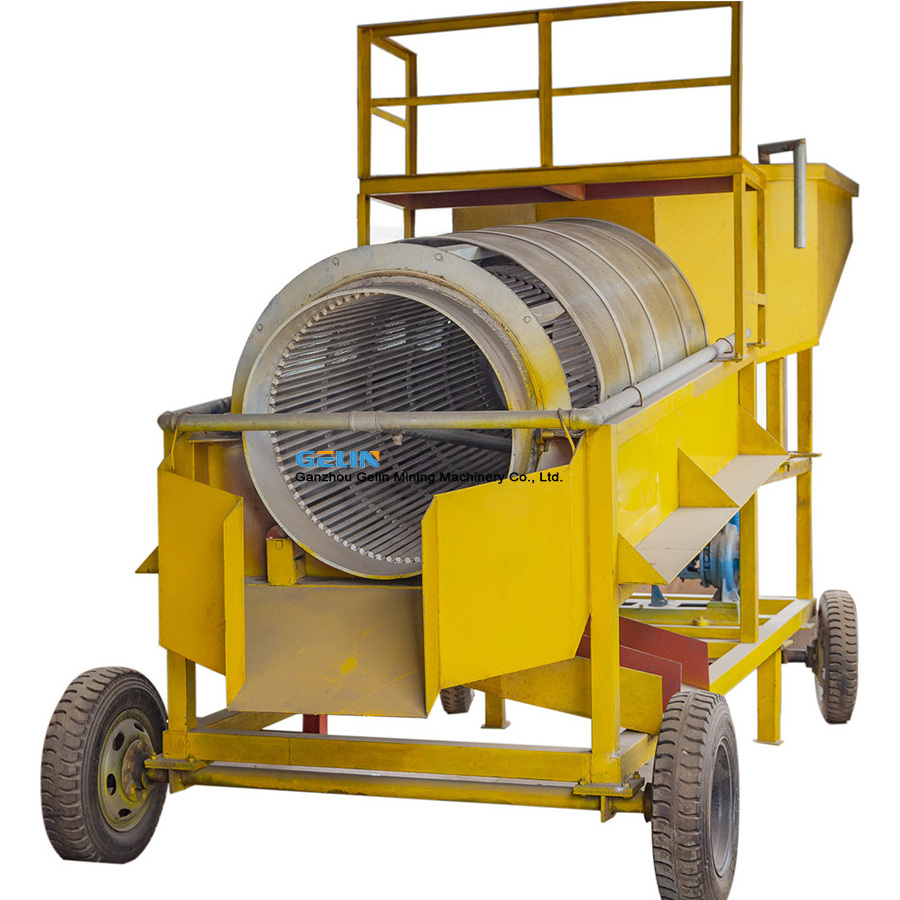

Mobile Type:
|
Mobile Type
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Capacity (t/h)
|
Wheel
|
Water pump
|
Diesel engine/Electric Motor
|
Drum Dia. (mm)
|
Drum Length.
(mm) |
Screen size (mm)
|
Weight
|
||||||||
|
GL510
|
5-15
|
4
|
include
|
Alternative
|
500
|
1300
|
<3-20
|
1200
|
||||||||
|
GL615
|
10-20
|
4
|
include
|
Alternative
|
600
|
1500
|
<3-20
|
1500
|
||||||||
|
GL715
|
20-30
|
4
|
include
|
Alternative
|
600
|
1500
|
<3-20
|
1500
|
||||||||
|
GL815
|
30-40
|
4
|
include
|
Alternative
|
600
|
1500
|
<3-20
|
1500
|
||||||||
|
GL1020
|
40-100
|
4
|
include
|
Alternative
|
1000
|
2000
|
<3-20
|
2300
|
||||||||
|
GL1225
|
100-160
|
4
|
include
|
Alternative
|
1200
|
2500
|
<3-20
|
3000
|
||||||||
|
GL1530
|
150-200
|
4-6
|
include
|
Alternative
|
1500
|
3000
|
<3-20
|
4000
|
||||||||
|
GL1545
|
200-300
|
4-6
|
include
|
Alternative
|
1500
|
4500
|
<3-20
|
4500
|
||||||||
|
GL1848
|
300-450
|
4-6
|
include
|
Alternative
|
1800
|
4800
|
<3-20
|
6000
|
||||||||
|
GL2055
|
400-500
|
4-6
|
include
|
Alternative
|
2000
|
5500
|
<2-20
|
9000
|
||||||||
|
GL2265
|
500-700
|
4-6
|
include
|
Alternative
|
2200
|
6500
|
<2-20
|
12000
|
||||||||
|
Note: above parameter is for reference,Screen Size,Layer,etc can be customized as required
|
|
|
|
|
|
|
|
|
||||||||
PS:
1.If the screen is blocked by twigs or clays or others,then brush-holder rod can be equipped to clear the screen for prevent to clog.
1.If the screen is blocked by twigs or clays or others,then brush-holder rod can be equipped to clear the screen for prevent to clog.
Features
2.Large capacity range from 5t/h to 800t/h;.
3.Easy move around,operation,and maintenance;
4.Low investment,long service life.
Working Principe
When feeding ore material into the drum, the material begins to rotate and tumble inside the drum before calming down
intermittently. This revolution is completed along the length of the drum. Hence, the larger ones tumble to their exit through the rear end of the drum while the finer materials pass through the screen openings and then pass to the downstream process equipment, which can be in various forms, such as gold concentrator, spiral chutes, jig machines, Sluice box with carpet etc.Separation of different materials is done efficiently.
Detailed Photos
Application&Successful Case
- gold mining plant for alluvial gold, placer, gold sand
- gold processing plant for river dirt gold with clay
The basically main machines matching are as below according to different mining condition:
a). Washing trommel+Centrifugal concentrator+Shaking table;
b). Washing trommel+Jig machine(Jigger)+Shaking table;
c). Washing trommel+Sluice box with grass mat(carpet).
a). Washing trommel+Centrifugal concentrator+Shaking table;
b). Washing trommel+Jig machine(Jigger)+Shaking table;
c). Washing trommel+Sluice box with grass mat(carpet).
Packing & Delivery
Packing
Normally the machines are taken apart before delivery and are packed by suitable packing ways, the packing ways are as below:
1.
Nude packing.
2.
Bundle packing.
3.
Grass rope packing.
4.
Water proof packing.
5.
Wooden pallets packing.
6.
Wooden box or carton box packing.
Delivery
Usually the equipments are delivered aboard by
tracks,trains,or container(sea transportation). and some spare parts or very small goods also support to send by express
, our company have built good relationships with large cargo agent and shipping companies which guarantee our products delivered safely and promptly.Sea transportation includes three delivery ways as below:
1.
40HQ container
: used for goods without overlength, overheight and overweight;
2.
FR(Flat Rack) container
:suitable for large equipments with overlength,overheight like ball mill,excavator,etc.
3.
Bulk cargo shipment (LCL)
: used for some goods without loading in full container,normally it requires good packing with marks for safety and easy to be trackable.
Related Products
About Company
Ganzhou Gelin Mining Machinery Co., Ltd
is an over 30 years professional
manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, separation etc. in China.
Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin’s equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc.
Sincerely welcome customers to visit our factory.
One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.
4.Manufacturing the necessary equipments and arrange the shipment.
5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).
After-sale Service
Regularly visit customers to provide after- sale
technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.
FAQ
Q:
Are you a trading company or a factory?
A:
We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000㎡ and office covered 2,500㎡. Welcome to visit our factory at anytime.
Q:
What is your payment terms?
A: By TT( Telegraphic Transfer ) , 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
A: By TT( Telegraphic Transfer ) , 100% or 40% Deposit before production and 60% balance payment will be paid off after sending product pictures and before loading from factory.
Q: How long is the guarantee period of your products?
A:
The guarantee period is 1-2 years, pls ask staff for more details. And we will supply lifelong technical support service and the spare parts at lowest cost.
Q:
Is it possible to produce customized products
?
A: Yes, most of our products are produced as required.
A: Yes, most of our products are produced as required.
Q:
Is it possible to provide sample for your factory to do ore-dressing experiment?
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
A: Yes, engineering consulting is available and we’d like to arrange mineral beneficiation experiment after received your sample and provide the test report.
