Quick Details

Brand Name:: DLSTECH

Product name:: Biomass boiler grate Reciprocating grate boiler for boiler auxiliaries

Keywords:: Mechanical grate,Industrial boiler,Biomass boiler

Application:: Industrial;textile;paint;heating factory

Capacity:: 30T/H

Material:: Heat/Oxidation/Corrosion Resistance

Function:: Heating,Burning,Drying

Size (mm):: Customised sizes

Color:: Customised color

Boiler fuels:: coal;biomass;plants

Brand:: DLSTECH

Quick Details

Type:: boiler grate stoker

Weight (KG):: 5000

Place of Origin:: Liaoning, China

Brand Name:: DLSTECH

Product name:: Biomass boiler grate Reciprocating grate boiler for boiler auxiliaries

Keywords:: Mechanical grate,Industrial boiler,Biomass boiler

Application:: Industrial;textile;paint;heating factory

Capacity:: 30T/H

Material:: Heat/Oxidation/Corrosion Resistance

Function:: Heating,Burning,Drying

Size (mm):: Customised sizes

Color:: Customised color

Boiler fuels:: coal;biomass;plants

Brand:: DLSTECH

Product Description

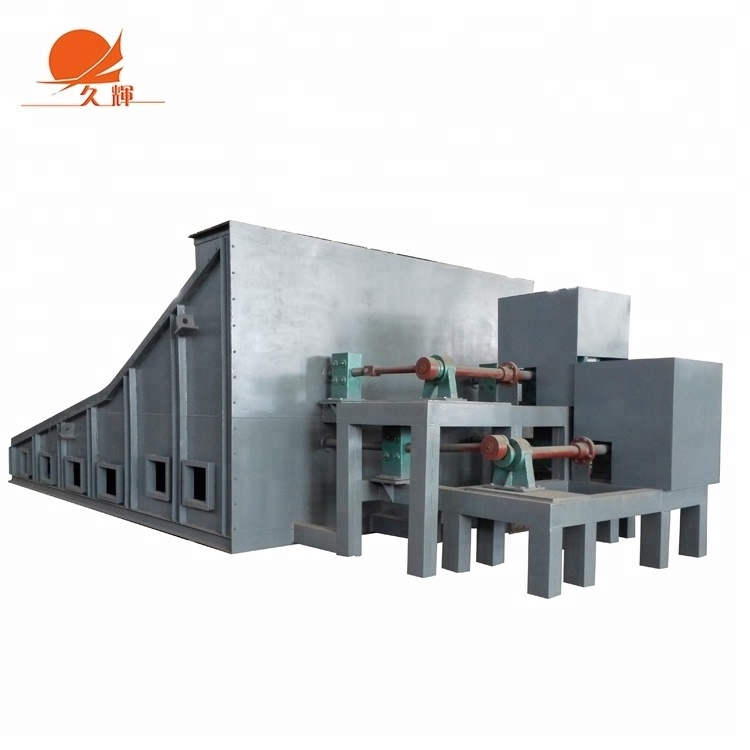

Reciprocating Type Grate Stoker
The grate is stepped and is formed by stacking the same arrangement of fixed grate pieces and movable grate pieces. The movable grate is reciprocated to make the coal move evenly downwards, and the stroke is generally 70-110 mm. When the coal quality is poor, the large stroke is selected.

The coal seam is squeezed, tumbling, agitated as the moving grate moves, and some of the new coal is pushed onto the hot coal seam that has been ignited underneath, while the moving grate sheet returns some of the hot coal particles that have been ignited back to the unburned Underneath the new coal seam, the fuel layer has the characteristics of double-sided ignition. Unlike the chain grate, there is relative movement between the coal seam and the grate. The loose coal seam can increase its gas permeability, and the coal particles squeeze and rub each other. A layer of ash shells wrapped around the hot coal particles is used to help burn off the coke. The reciprocating motion of the grate can break the coke block with weak cohesiveness and has a certain ignition effect.

In short, the inclined reciprocating grate has a simple structure, is easy to process and manufacture, is easy to use and maintain, and has low metal consumption. Compared with the chain grate, it can be adapted to burn inferior fuel, such as type II bituminous coal, class I bituminous coal, lignite, and lean coal.

Advantages And Features:
1.Apply to produce high pressure steam or hot water in range from 3,450-60,000 lbs/h.
2.The structure of fixed and removable grates can greatly increase the combustion efficient of incombustibles material.
3.The humidity of material range is from 30%-50%.
4.The temperature range is from 550ºC-1200ºC.

Technical Parameter

Capacity t/h	Effective Area m2	Effective Width mm	Air Passage	Round Trip mm	Obliquity
4t/h	6.52	1600	7-12%	120-180	User defined
6t/h	7.33	1600	7-12%	120-180
10t/h	13.3	2380	7-12%	120-180
20t/h	21.6	3300	7-12%	90-160
40t/h	39	4580	7-12%	90-160
65t/h	60.3	7024	7-12%	90-160
100t/h	95.1	9464	7-12%	90-160
160t/h	153.4	10636	7-12%	90-160
200t/h	185.7	11854	7-12%	90-160
260t/h	247.5	13766	7-12%	90-160

Company Vision: To become A World-class Energy-saving Combustion Enterprise.

Dalian Sunshine Boiler Auxiliaries Co., Ltd is located in Dalian City. Our branch is located in Wafangdian City,is now one of the largest boiler auxiliary manufacturers in China.

Our company has five workshops and three casting plant, well-equipped,with various auxiliary components can ensure the casting.precision machining,welding equipment more than 200 sets .Our company hhave been cooperated with tsinghua university.Peking University Peking University Professors for years to keep us in a leading position.

PROJECT A (MAY, 2018)

INDONESIA 35T/H FLAKE TYPE CHAIN GRATE INSTALLATION SITE

IN MAY 2018, DALIAN SUNSHINE BOILER AUXILIARIES CO., LTD'S OVERSEAS INSTALLATION TEAM:35T/H FLAKE TYPE CHAIN GRATE INSTALLATION SITE FOR ONE OF THE BEGGEST FACTORY IN INDONESIA IN 2019.

PROJECT B (MAY, 2019)

VIETNAM MARKET-45T/H RECIPROCATING GRATE INSTALLATION SITE

OVERSEA SERVICE TEAM:45T/H RECIPROCATING GRATE INSTALLATION SITE. THIS GRATE BURUS WOODCHIPS AS FUEL, WITH TWO GEAR MOTOR REDUCERS. HIGH HEAT RESISTANCE MATERIAL GRATE CASTINGS. FOR ONE OF THE BIGGEST BOILER MANUFACTURER IN VIETNAM.

PROJECT C (DECEMBER, 2019)

CROSS BEAM TYPE CHAIN GRATE-THE MOST POPULAR GRATE

CHAIN GRATE IS FOR DRYING FUEL, WHICH IS MADE BY DALIAN SUNSHINE BOILER AUXILIARIES CO.,LTD. THIS GRATE WITH HIGH HEAT RESISTANCE MATERIAL GRATE CASTINGS FOR ONE OF THE BIGGEST BEER FACTORY IN MEXICO.

MATERIAL TEST

The manufacturing of the chain grate is in accordaned with the standard of "JB/T 3271-2002".
All high-temperature materials grate will be inspected strictly before leaving the factory.

Certificate of utility model patent

Instead of traditional structure, we improved and greated one type of big flake chain grate with duide block structure dricing system.

Name: Coal feeder/ fuel loader for boiler chain grate

Width: 1200mm,

Height: Customized according to Chain Grate.

Capacity: 1ton/h~20t/h Advantages： Small but convenient, Suitable for 1t/h-30t/h chain grate boiler.

Fuel Feed Equipment / Conveyors

Advantages:
This machine is an efficient, fast and stable feeding equipment without vibration. As a bulk material continuous conveying
equipment. Feeder is widely used in coal, metallurgy, electric power, and other industries

Grate parts

.Grate bar for different type of grate, including travelling grate (aka. Flake Type Grate, Chain Grate,Cross-beam Grate), step
grate (Reciprocating Grate),etc

FAQ

1.Q: Can you give us a quotation right now?
A: Sorry, our products are all customized. Please give us your required dimension of capacity. Then we will make a design and quotation for you ASAP.

2. Q: Can you give us your price list?
A: Sorry, we don't have any. Our products are all manufactured according to customers' requirements.
3. Q: What is your MOQ?
A: 1 piece/set.
4. Q: Do you have any one in stock?
A:Yes. For the chain grate parts, we have in stock. Grates assembly are manufactured.
5. Q: Do you accept a special order?
A:Yes, we do. We can manufacture all kinds of casting products and grate,according to your technical drawings.
6. Q: Can you give us the technical drawing and data?
A:We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
7. Q: Do you provide after-sales service?
A: Yes, we do.Our productsare guaranteed for the wearing parts one year.
8. Q: Can your engineer come to our place for installation guide?
A:Yes, we can. We will provide a video and document for installation.And if necessary, we have professional installation team with rich experience, we can send our engineers oversea for installation guide.
