Quick Details
-
Model Number:
-
CG-0197
-
Thickness:
-
5-300MM
-
Size:
-
Customized
-
Name:
-
HDPE UHMW PE Plastic Board With Hole Plastic Sheet
-
Certificate:
-
ISO9001
-
Color:
-
Customized Color
-
Shape:
-
Customized Shape
-
Application:
-
Widely
-
Package:
-
Plastic and Wooden Package
-
Feature:
-
Wear Resistance
-
Quality:
-
High-quality
-
Raw material:
-
100% Virgin HDPE
-
Sample:
-
Avaliable
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
China Hebei
-
Brand Name:
-
KENUO
-
Model Number:
-
CG-0197
-
Thickness:
-
5-300MM
-
Size:
-
Customized
-
Name:
-
HDPE UHMW PE Plastic Board With Hole Plastic Sheet
-
Certificate:
-
ISO9001
-
Color:
-
Customized Color
-
Shape:
-
Customized Shape
-
Application:
-
Widely
-
Package:
-
Plastic and Wooden Package
-
Feature:
-
Wear Resistance
-
Quality:
-
High-quality
-
Raw material:
-
100% Virgin HDPE
-
Sample:
-
Avaliable
Products Description
Complete Specifications Arbitrary Zero Cutting Free cut any thickness or color UHMWPE Sheets
1. Low-temperature resistance In -269℃
2. Low water absorption ＜0.01%
3. High Corrosion resistance
4. High impact resistance
5. UV resistance and long service life
2. Low water absorption ＜0.01%
3. High Corrosion resistance
4. High impact resistance
5. UV resistance and long service life
Properties:
1.Excellent Abrasion-resistance
2.Good self-lubrication and low coefficent of friction.
3.High anti-impact strength and good toughness.
4.Good chemical corrosion resistance can resist almost all mediums such as acid,alcali and salt, but except for concentrated
sulphuric-acid, concentrated nitric and a few organic solvents.
5. inodorous, innoxious and unpenetrable.
6.Good conductibility and ultra-low water absorbability.
7.Good cold resistance property which isn't brittle even if at 176℃ below zero.
1.Excellent Abrasion-resistance
2.Good self-lubrication and low coefficent of friction.
3.High anti-impact strength and good toughness.
4.Good chemical corrosion resistance can resist almost all mediums such as acid,alcali and salt, but except for concentrated
sulphuric-acid, concentrated nitric and a few organic solvents.
5. inodorous, innoxious and unpenetrable.
6.Good conductibility and ultra-low water absorbability.
7.Good cold resistance property which isn't brittle even if at 176℃ below zero.
UHMWPE/HDPE Sheets
Ultra-high molecular weight polyethylene(uhmw-pe) is the molecular weight of more than 1.5 million in PE has excellent properties,
it focused on almost merits of various engineering plastics, such as wear and impact resistance, self lubrication, corrosion
resistance low temperature,sanitation non-toxic, easy adhesion, non-adsorbent, low density and etc.
it focused on almost merits of various engineering plastics, such as wear and impact resistance, self lubrication, corrosion
resistance low temperature,sanitation non-toxic, easy adhesion, non-adsorbent, low density and etc.
Sheet

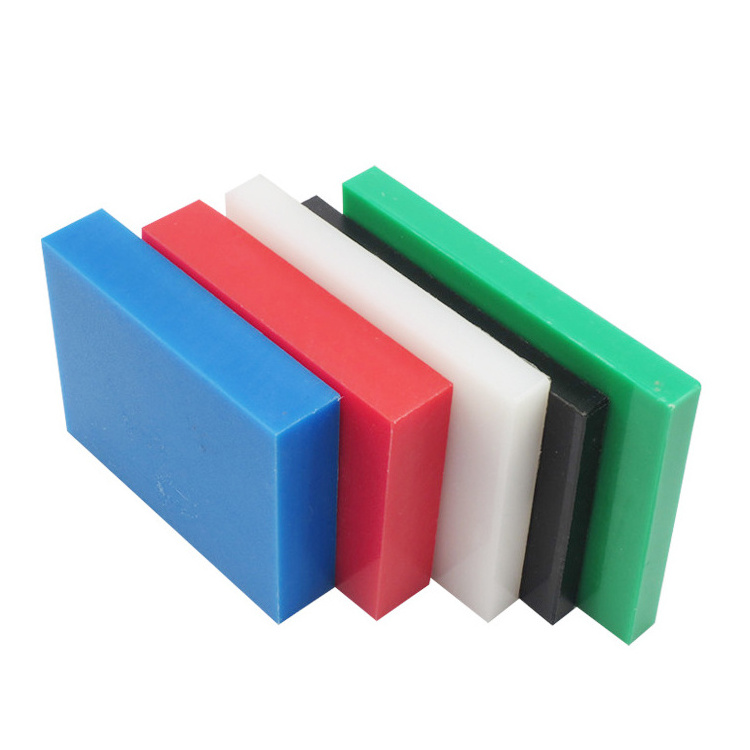

Color：Natural、White、Black、Green、Blue、Yellow、Rice Yellow、Gray and so on. Sheet Size：
1000X2000X(Thickness:5-300mm）、1220X2440X(Thickness:5-300mm) 、1000X1000X(Thickness:5-300mm）、1220X1220X(Thickness:5-300mm)
1000X2000X(Thickness:5-300mm）、1220X2440X(Thickness:5-300mm) 、1000X1000X(Thickness:5-300mm）、1220X1220X(Thickness:5-300mm)
Rod /Tube
(ID)30-1600 X Length(500-1000mm)
|
Property
|
Item No.
|
Unit
|
UHMWPE
|
PA66
|
POM
|
|
1
|
Density
|
g/cm3
|
0.935
|
1.13-1.15
|
1.04
|
|
2
|
Water absorption (23℃ in air)
|
％
|
＜0.01
|
1.5
|
0.25
|
|
3
|
Rift intensity
|
N/cm2
|
29
|
60.7-82.3
|
68.6
|
|
4
|
impulsive intensity(break up)
|
％
|
no damage
|
60-110
|
80-130
|
|
5
|
luos hardness bard
|
|
40
|
85-120
|
120
|
|
6
|
melting point
|
℃
|
136
|
225
|
166
|
|
7
|
hot deformation temperature(0.46MPa)
|
℃
|
85
|
182-244
|
170
|
|
8
|
Expansion coefficient
|
10-4/℃
|
1.5
|
0.8
|
0.81
|
|
9
|
Dielectric constant
|
|
2.3
|
3.4-3.6
|
3.7
|
|
10
|
calculus
|
--
|
Not easy to calculus
|
calculus
|
easy to calculus
|
Good Reputation
Professional Company
Company introduction
Zhangjiakou Kenuo engineering Plastic CO.LTD is established on 2009, located in Zhangjiakou, Hebei province, which is one of the
host places of 2022 Winter Olympic Games and 150KM away from Beijing.Our factory area over 660 thousand square meters, Including 6 thermoplastic manufacture lines with capacity 5400 Tone each, hundreds irregular parts
manufacture lines too. The main products including;
Ultra-high molecular weight (UHMW-PE); Engineering Plastics;Rare-Earth Nylon Product; Polytetrafluoroethylene. The products are widely used in industry, construction industry, ice and snow sports industry,
shipbuilding and Marine transportation industry and other industries.my company set up the goal of high technology, high starting
point and high level at the beginning of the factory. Our products have been widely used all over the world , and also have been exported to Europe, America, Asia, and Africa etc.
host places of 2022 Winter Olympic Games and 150KM away from Beijing.Our factory area over 660 thousand square meters, Including 6 thermoplastic manufacture lines with capacity 5400 Tone each, hundreds irregular parts
manufacture lines too. The main products including;
Ultra-high molecular weight (UHMW-PE); Engineering Plastics;Rare-Earth Nylon Product; Polytetrafluoroethylene. The products are widely used in industry, construction industry, ice and snow sports industry,
shipbuilding and Marine transportation industry and other industries.my company set up the goal of high technology, high starting
point and high level at the beginning of the factory. Our products have been widely used all over the world , and also have been exported to Europe, America, Asia, and Africa etc.
Our Factory
Rich experience in production customized
Specializing in the production of "engineering plastic accessories" of high-tech enterprises, the company has a set of imported production equipment and CNC processing equipment, processing means advanced, strong technical force.
Certifications
The Exhibition
FAQ
Q1. What is the size of the board?
A1. Nylon board: conventional size 1000*2000*(10-100)UHMWPE board
conventional size 1000*2000*(20-100) 1250*3130* 1250*4250 POM board: conventional size 1000*2000*thickness
Q2. Can the board be cut into small pieces?
A2. Regular plates can be cut into small pieces as required
O3. What are the colors of the boards?
A3. Nylon board: beige black, blue other colors can be customized UHMWPE
board white black.green. blue. yellow. other colors can be customized POM board: white, black
Q4. What are your processing equipment?
A4. CNC machining center, CNC lathe, milling machine, engraving
machine, molding machine
Q5. Can you help assembling the product after it is made?
A5. It's okay
Q6.
How many days will the samples be finished? And how about the mass production?
A6.Generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock
