Quick Details
-

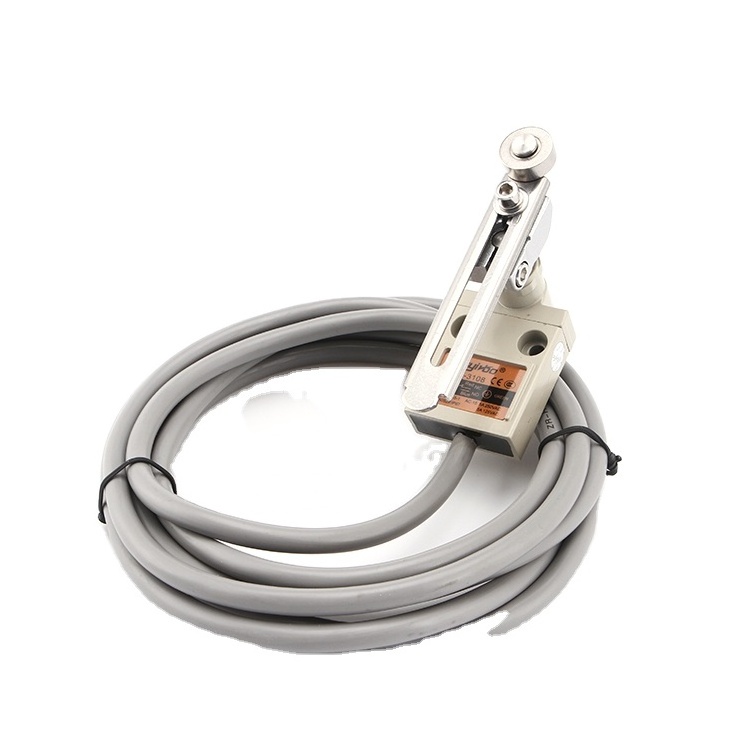

Model Number:
-
XTZ-3108
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-10℃-70℃
-
Max. Current:
-
5A
-
Material:
-
Aluminum
-
Type:
-
Enclosed switch
-
3m cable:
-
waterproof, oil-proof
-
contact form:
-
NC,NO
-
Feature:
-
DPDS
-
Inrush current:
-
N.C:below 24A, N.O:below 12A
-
Certification:
-
CCC, CE
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
XINGBO
-
Model Number:
-
XTZ-3108
-
Protection Level:
-
IP67
-
Operating Temperature:
-
-10℃-70℃
-
Max. Current:
-
5A
-
Material:
-
Aluminum
-
Type:
-
Enclosed switch
-
3m cable:
-
waterproof, oil-proof
-
contact form:
-
NC,NO
-
Feature:
-
DPDS
-
Inrush current:
-
N.C:below 24A, N.O:below 12A
-
Certification:
-
CCC, CE
Features:
DPDS limit switch for multiple applications
Aluminum alloy diecast housing
High mechanical strength
Oil resistance, waterproof and dustproof
Ratings
|
Rated voltage |
Non-inductive Load(A) |
Inductive Load(A) |
||||||
|
Resistance Load |
Lamp Load |
Inductive Load |
Motor Load |
|||||
|
NC |
NO |
NC |
NO |
NC |
NO |
NC |
NO |
|
|
125VAC |
5(0.1) |
1.5 |
0.7 |
3 |
2.5 |
1.3 |
||
|
250VAC |
3 |
1 |
0.5 |
2 |
1.5 |
0.8 |
||
|
8VAC |
5(0.1) |
2 |
5 |
4 |
3 |
|||
|
14VDC |
5(0.1) |
2 |
4 |
4 |
3 |
|||
|
30VDC |
4(0.1) |
2 |
3 |
3 |
3 |
|||
|
125VDC |
0.4 |
0.05 |
0.4 |
0.4 |
0.05 |
|||
|
250VDC |
0.2 |
0.03 |
0.4 |
0.2 |
0.03 |
|||
Characteristics
|
Rated value |
5A 125V, 3A 250VAC |
|
Operation speed |
1mm-2m/s |
|
Operating frequency |
Mechanical: 120 operations/minute Electrical: 30 operations/minute |
|
Contact resistance |
15M Ω Max. (initial value) |
|
Insulation resistance |
100M Ω min. (at 500VDC) |
|
Dielectric strength |
1000VAC, 50/60Hz for 1 minute between terminals of the same polarity |
|
1500VAC. 50/60Hz for 1 minute between current-carrying and non-current-carrying metal parts |
|
|
1500VAC, 50/60Hz for 1 minute between each terminal and ground |
|
|
Vibration |
10-55Hz, 1.5mm double amplitude |
|
Shock |
Mechanical durable: 1,000m/ Sec 2 (about 100G’ S) Malfunction: 50m/ Sec 2 (about 30G’ S) |
|
Ambient temperature |
-10 ℃ - 7 ℃ (with no icing) |
|
Humidity |
95% RH |
|
Life |
Mechanical: 10000,000 operations above (under rated OT) Electrical: 200000 operations above |
|
Weight |
Approx. 360g(cable length 3m) Approx. 540g(cable length 5m) |
|
Protection |
IEC specification: IP67 |
