Quick Details
-
Power:
-
20-150hp
-
Dimension(L*W*H):
-
1330mm*900mm*1200mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Certification:
-
ce
-
Product name:
-
3 point hitch road sweeper
-
Color:
-
Under Client's Instruction
-
Function:
-
Sweeping snow, road
-
working width:
-
1200mmm
-
Type:
-
mounted with tractors
-
Structure weight::
-
180kgs
-
Brush material:
-
PP Mixed Steel
-
brush rotation speed:
-
180 rpm
-
Driveline specification::
-
Motor/pto drive
-
Connecting method with tractor:
-
3-point suspension
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAMPION
-
Model Number:
-
SX120
-
Power:
-
20-150hp
-
Dimension(L*W*H):
-
1330mm*900mm*1200mm
-
After-sales Service Provided:
-
Overseas third-party support available
-
Certification:
-
ce
-
Product name:
-
3 point hitch road sweeper
-
Color:
-
Under Client's Instruction
-
Function:
-
Sweeping snow, road
-
working width:
-
1200mmm
-
Type:
-
mounted with tractors
-
Structure weight::
-
180kgs
-
Brush material:
-
PP Mixed Steel
-
brush rotation speed:
-
180 rpm
-
Driveline specification::
-
Motor/pto drive
-
Connecting method with tractor:
-
3-point suspension
Brief features and introduction
of 3 point hitch road sweeper:
1. SX Series Snow Sweeper for tractor is used for sweeping of thin layer of snow, featured with quick s peed, high efficiency and easy operation. To clear away deep snow, it will be more effective to use it together with snow blade. It's also used in sweeping on road and ground.
2. SX Series Snow Sweeper for tractor is widely used in road, ground, warehous e etc, mainly in sweeping of thin layer of snow, leaves, sand, court etc.
3.The snow sweeper can be matched to tractor,wheel loader,forklift,
4. The snow sweeper powered by hydraulic output of these machin ery,only tractor could be driven by PTO.
5.PP with steel wires brushes.
6.Working width from 1200 to 2500mm
7.Suitable for cleaning road,street,floor and other flat.
3 point hitch road sweeper Technical Parameters:
| Items | SX120 | SX160 |
| Structure weight: | 140kg | 180kg |
| Overall dimension(mm): | 1380*1100*800mm | 1780*1100*800mm |
| Brush wridth(mm) | 1180 | 1580 |
| work efficiency (m2 /hour) | 16800 | 22100 |
| Required tractor power | 20-45 | 50-75 |
| Connecting method with tractor | 3-point suspension | 3-point suspension |
| Driveline specification: | Motor/pto drive | Motor/pto drive |
| Brush material | PP | PP |
| Brush axle material | Seamless steel | Seamless steel |
| brush rotation speed | 180 rpm | 180 rpm |
| Brush diameter | 560mm | 560mm |
| CBM per package(m): | 0.9 | 1.15 |
| Items | SX180 | SX200 |
| Structure weight: | 200kg | 260Kg |
| Overall dimension(mm): | 1980*1100*800mm | 2200*1200*800 |
| Brush wridth(mm) | 1780 | 1900 |
| work efficiency (m2 /hour) | 24800 | |
| Required tractor power | 50-100 | 50-100 |
| Connecting method with tractor | 3-point suspension | 3-point suspension |
| Driveline specification: | Motor/pto drive | Motor/pto drive |
| Brush material | PP | PP |
| Brush axle material | Seamless steel | Seamless steel |
| brush rotation speed | 180 rpm | 180rpm |
| Brush diameter | 560mm | 560mm |
| CBM per package(m): | 1.28 | 1.35 |

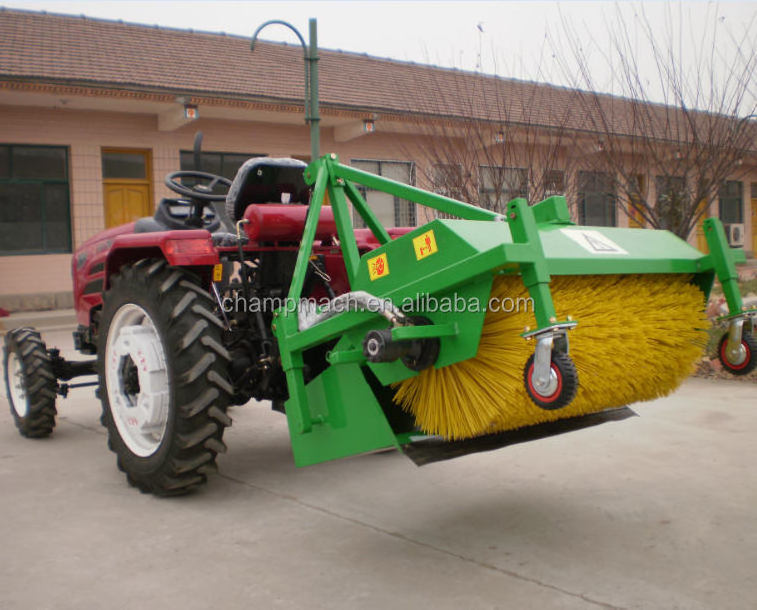

3 point hitch road sweeper Detailed Images:
3 point hitch road sweeper Packaging :
