Quick Details
-
Warranty:
-
25 Years
-
Brand Name:
-
Flagsun
-
Model Number:
-
FSM005W-36M
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
230x185x17mm
-
OEM Order:
-
Acceptable
-
Power Tolerance:
-
0-+3%
-
Weight:
-
0.4kg
-
No. of cells:
-
36 cells(4*9)
-
Frame:
-
Anodized Aluminium Alloy type 6063T5, Silver color
-
Maximum system Voltage:
-
1000VDC
-
Substrate:
-
White Back-sheet
-
Application Level:
-
Class A
-
Front Cover Glass, Thickness:
-
3.2 mm, High Transmission, Low Iron, Tempered Glass
-
Junction Box:
-
IP65
Quick Details
-
Cell size:
-
38mmx19.59mm
-
Type:
-
Mono-crystalline
-
Panel Efficiency:
-
5W
-
Warranty:
-
25 Years
-
Brand Name:
-
Flagsun
-
Model Number:
-
FSM005W-36M
-
Place of Origin:
-
Zhejiang, China
-
Panel Dimensions:
-
230x185x17mm
-
OEM Order:
-
Acceptable
-
Power Tolerance:
-
0-+3%
-
Weight:
-
0.4kg
-
No. of cells:
-
36 cells(4*9)
-
Frame:
-
Anodized Aluminium Alloy type 6063T5, Silver color
-
Maximum system Voltage:
-
1000VDC
-
Substrate:
-
White Back-sheet
-
Application Level:
-
Class A
-
Front Cover Glass, Thickness:
-
3.2 mm, High Transmission, Low Iron, Tempered Glass
-
Junction Box:
-
IP65

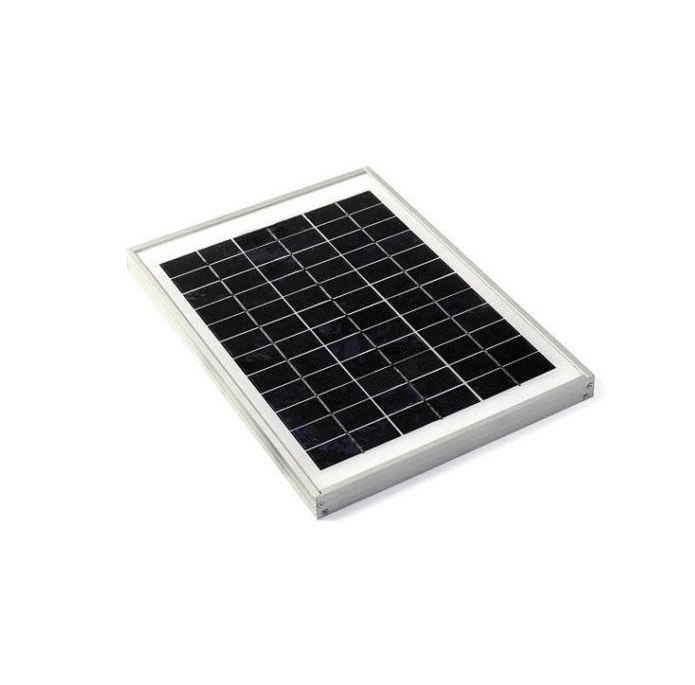

Product Description
|
Electrical Parameters at STC
|
|
|
Model Number
|
FSM005W-36M
|
|
Rated Power in Watts-Pmax(Wp)
|
5W
|
|
Open Circuit Voltage-Voc(V)
|
22.4
|
|
Short Circuit Current-lsc(A)
|
0.30
|
|
Maximum Power Voltage-Vmpp(V)
|
18.2
|
|
Maximum Power Current-lmpp (A)
|
0.28
|
|
Module Efficiency(%)
|
11.8
|
|
Power Tolerance
|
0~+3%
|
|
MECHANICAL DATA
|
|
|
Solar cells
|
Mono-crystalline 38*19.59mm,5BB
|
|
Cell configuration
|
36 cells(4*9)
|
|
Module dimensions
|
230*185*17mm
|
|
Weight
|
0.4kg
|
|
Superstrate
|
3.2 mm, High Transmission, Low Iron, Tempered Glass
|
|
Substrate
|
White Back-sheet
|
|
Frame
|
Anodized Aluminium Alloy type 6063T5, Silver color
|
|
J-Box
|
IP65
|
|
Maximum System Voltage
|
1000VDC
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
