LINK-MI 6x1 Multiviewer HDMI+VGA+CVBS 1080p HD Video Multiplexers support PIP any size anywhere Image Video Multi-viewer

Description

LINK-MI LM-SH61 6x1 HD Video Multi-viewer/Synthesizer is a high performance video processor. It can show 6 signal on 1 screen/monitor. It supports 6 HDMI / 6 VGA / 6 CVBS total 18 input signal; 1 HDMI and 1 VGA output. Any 6 of the 18 input signal can be switched to display on 1 HDMI screen and 1 VGA screen simultaneously (Each screen shows max 6 signal or 1 signal Full Screen Display).

It comes with many function like switching, fenestration, superposition, roaming...etc. All signal can be zoom in or zoom out freely at any position through mouse easily. And it can save user modes (user preset) and supports fast mode by using remote control. It can be controlled via panel buttons, remote, RS232.

This is a classic product in market applications. It is mainly used in video conference, teaching, exhibition display which require a single monitor to show multiple contents.

Features

1. Multiple Input Signal

Total 18 input signal for switching display. Max 6 signal show on 1 single monitor

Inputs: 6 HDMI / 6 VGA / 6 CVBS total 18 input signal;

Outputs: 1 HDMI and 1 VGA output

Any 6 of the 18 input signal can be switched to display on 1 HDMI screen and 1 VGA screen simultaneously (Each screen shows max 6 signal or 1 signal Full Screen Display).

2. 2 Outputs Display

2 outputs (HDMI & VGA) Display at the same time

3. Multiple Display Modes

6x1, 5x1, 4x1, 3x1, 2x1 Multi-viewer Modes or 1 signal Full Screen Display;

PIP, POP, window, overlay, roam, images of any size and location

Support multiple preset multi-viewer modes by control software

Any 6 of the 18 inputs (6 HDMI / 6 VGA/ 6 CVBS) can be switched to 1 monitor (That is, 1 monitor shows 6 input signal or 1 signal full-screen display)

Multiple multi-viewer modes: All signal can be switched, zoom in or zoom out freely at any position through mouse easily. Some display modes are shown as below

4. Pure hardware architecture; High image processing technology

5. High precision sampling of the analog input signal; Strong data processing ability

6. High HD Resolution Display

Support a variety of formats and input and output ultra-high resolution, up to 1920x1080@60Hz

7. Transparency Adjustment

Support transparency adjustment of image, you can see the bottom image through the above picture

8. Multiple Control Ways

Remote control, panel buttons, RS232

Interfaces

Connection

Specification

Model No.	LINK-MI LM-SH61
Interfaces
Input Ports	6x HDMI, 6x VGA, 6x CVBS (Note: 6x USB ports is only for factory upgrade using)
Output Ports	1x HDMI, 1x VGA
Control Ports	1x RS232
Technical
HDMI	HDMI 1.0, HDCP 1.3, DVI 1.0
CVBS	NTSC, PAL or SECAM
Input Resolution	Support 480I~1080P, HDMI and VGA signal support 640x480 to 1920x1080
Output Resolution	Max 1920x1080@60Hz
Color Depth	24bit, 16.7M
Functions
Control Ways	Panel buttons, Remote, RS232
Display Modes	6x1, 5x1, 4x1, 3x1, 2x1 Multi-viewer Modes or 1 signal Full Screen Display PIP, POP, window, overlay, roam, images of any size and location
Signal identification	Auto identify
Image Adjustment	Zoom, Move, Adjustment of brightness, contrast, transparency, color temperature...
Mechanical
Power Supply	100-240V
Power Consumption	≤15W
Housing (Standard 4U wiredrawing chassis, directly put on standard cabinet)
Dimension	440mm(L)x177mm(H)x403mm(W)
Weight	8.2kg
Note: Specifications are subject to change without notice

Accessories

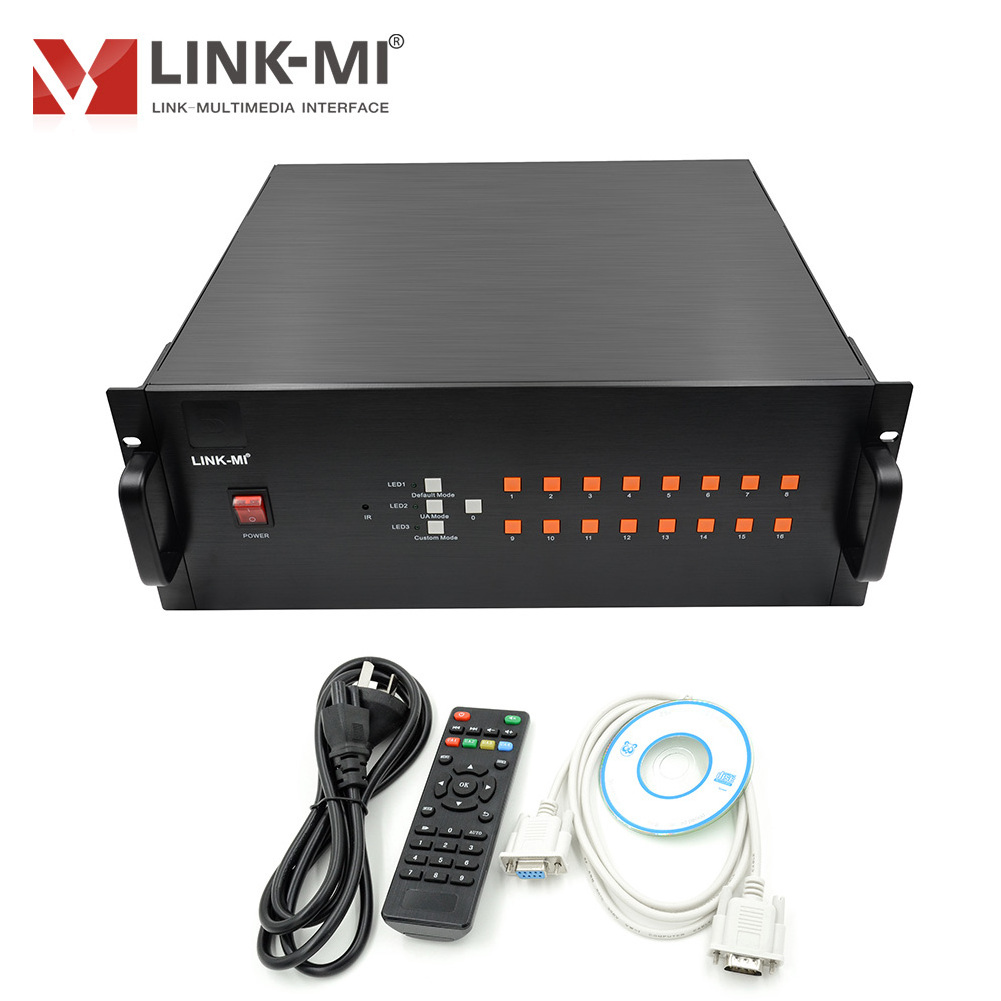

1) 1x Main Unit (6x1 HDMI/VGA/CVBS Multi-viewer)

2) 1x Power Cable

3) 1x Remote Control

4) 1x CD for Control Software

5) 1x RS232 Cable

6) 1x User Manual
