Hot sale 30kw wind turbine price/ residential wind power price/ 30000 watt wind generator for farm

Hot sale 30kw wind turbine price/ residential wind power price/ 30000 watt wind generator for farm

FOB Reference Price: Get Latest Price

≥1 Sets

US $11500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 30kw

Warranty:: 2 years, 3 Years

Certification:: ce/iec/EMC

Output Voltage:: 480v 500v 700v

rotor diameter:: 12m or 14m

Capacity:: 30kw

Start wind speed:: 3m/s, 3m/s

Wind Generator Model:: FD12-30KW

Rated wind speed:: 12m/s

Generator type:: Permanent Magnetic Generator 3 PhaseAC

Rated power:: 30kw

Max output power:: 35kw

Blades rotor diameter:: 12m

Rated Voltage:: 500V

Working system:: on/off grid system

Quick Details

Rated Power:: 30kw

Place of Origin:: Shandong, China

Brand Name:: HENRYD

Model Number:: 30kw

Warranty:: 2 years, 3 Years

Certification:: ce/iec/EMC

Output Voltage:: 480v 500v 700v

rotor diameter:: 12m or 14m

Capacity:: 30kw

Start wind speed:: 3m/s, 3m/s

Wind Generator Model:: FD12-30KW

Rated wind speed:: 12m/s

Generator type:: Permanent Magnetic Generator 3 PhaseAC

Rated power:: 30kw

Max output power:: 35kw

Blades rotor diameter:: 12m

Rated Voltage:: 500V

Working system:: on/off grid system

Product Details

FD12-30kw Wind turbine:

off grid 30kw wind turbine Use wind energy to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.

Grid tie 30kw wind turbine use wind energy to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination, home appliances, communication devices and electric tools.

Product Introduction

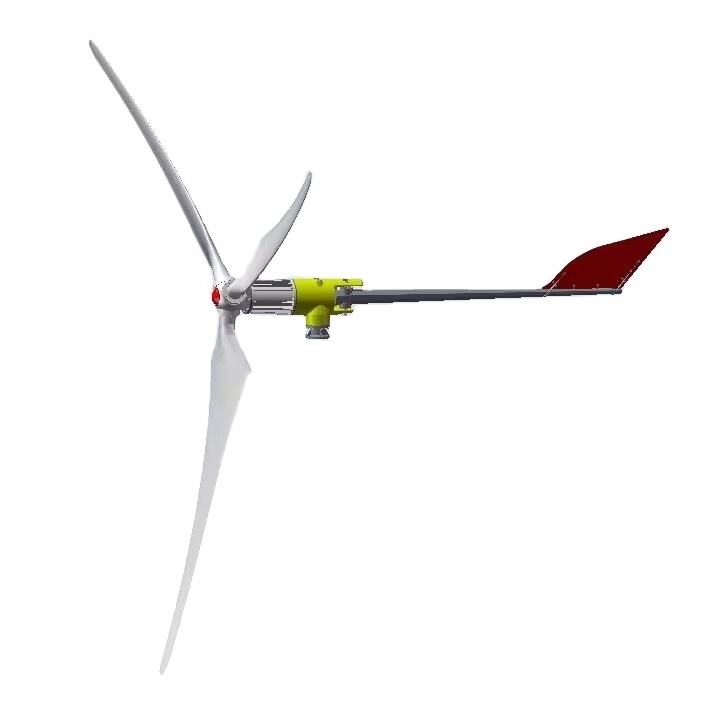

FD12-30kw wind turbine main body:

Wind turbine main body including: 3 pcs blades, nose cone, hub, generator with nacelle, tail rod, tail vane

Tower: stand alone tower, hydraulic tower. (optional)

Tower height can be manufactured according to user's request

Features:

1. Blade: Manufacturing according to the airscrew structure principle and techniques.

Optimal wide TSR & High L/D ratio. With protection film on the edge, long work life.

Select blade type by wind tunnel testing.

With high efficiency, low noise.

2. Blades rotor: Hub adopts casting molding; Blades rotor and generator adopt universal

connection, directly driven.

Connection is reliable, durable, smooth operation without vibration.

3. Generator

Rotor: Nd-Fe-B permanent magnet. Prefabricated tangential magnetic circuit rotor; High

magnetic flux density, small

cubage, good manufacturing process and high performance.

Adopt SKF, NSK bearing.

Close transmission slip ring, the cable will not enlace.

4.Speed regulation: yaw. Simple, reliable and safety.

5. Anti-corrosion treatment: All the outside parts are designed to anti-salt, anti-fog,

anti-atmospheric

anti-sandstorm corrosion design.

6.Tower: guy wire tower, tilting up tower, standalone tower, hydraulic tower… It can be

designed according to your request.

7.Auto braking system and manual braking system.

8.Wind turbine design principle is simple, safety, reliable, maintenance free.

9. Provide low wind place, rich wind place solution. Wind turbine OEM service.

Product Parameters

Model	FD12-30kw
Blades rotor diameter	12m
Rated wind speed	12m/s
Start up wind speed	3m/s
Rated output power	30kw
Max output power	35kw
Blades material	FRB
Generator type	3 phase AC pma
Working voltage	500v
Working system	On grid system, off grid system, wind solar hybrid system
Tower height:	12m-15m
Wind turbine weight	1900kgs
Packing size	6.5cbm
Working voltage	240v-500v
