Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1515*3030
-
Cutting Thickness:
-
depends on the materials
-
Control Software:
-
FSCUT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dxtech
-
Weight (KG):
-
1500 KG
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Fiber Laser Cutting Machiens
-
Function:
-
Cutting Metal Materials
-
Laser power:
-
1000W /1500W/ 2000W / 3000W
-
After-sales Service Provided:
-
Online Video Technical Support
-
Cutting materials:
-
Metal Materails
-
After Warranty Service:
-
Support Online Support
-
Certification:
-
CE Certification
-
Max cutting speed:
-
140m/min
-
Working area:
-
1515*3030
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
140m/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
1515*3030
-
Cutting Thickness:
-
depends on the materials
-
Control Software:
-
FSCUT
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dxtech
-
Weight (KG):
-
1500 KG
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Keyword:
-
Fiber Laser Cutting Machiens
-
Function:
-
Cutting Metal Materials
-
Laser power:
-
1000W /1500W/ 2000W / 3000W
-
After-sales Service Provided:
-
Online Video Technical Support
-
Cutting materials:
-
Metal Materails
-
After Warranty Service:
-
Support Online Support
-
Certification:
-
CE Certification
-
Max cutting speed:
-
140m/min
-
Working area:
-
1515*3030

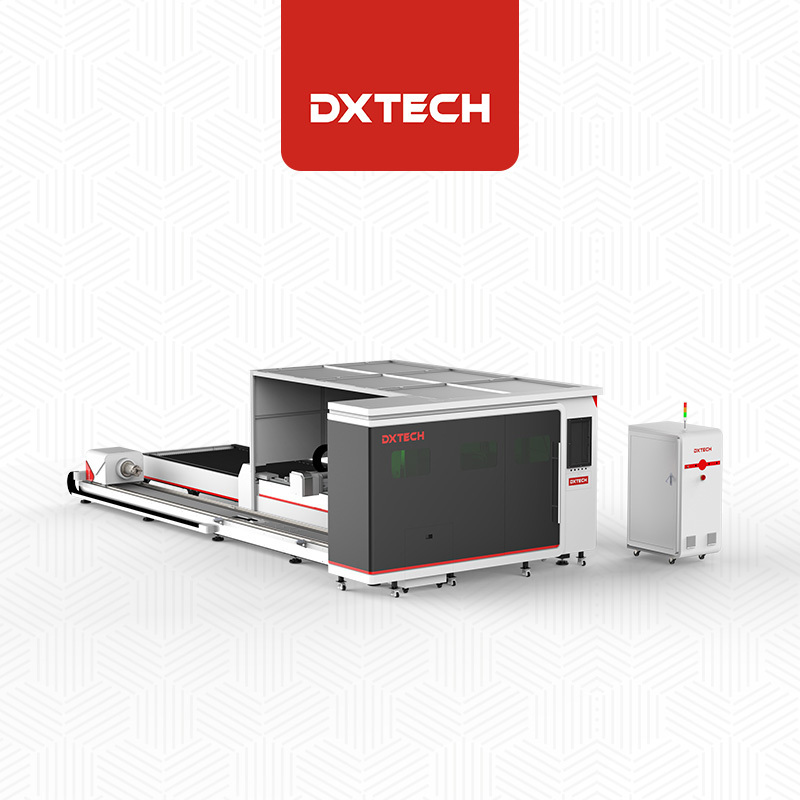

High Precision All Cover Exchange Table Metal Sheet & Tube Laser Cutting Machine automatic silver steel cutting router for sale
Products Description
This all cover fiber laser cutting machine adopts a fully-enclosed protective cover, which can meet the strict environmental protection requirements for some users. Moreover, the all cover design ensures the safety of users. During the processing, users can monitor the cutting process through the observation window. Besides, this all cover fiber laser cutting machine is equipped with high-quality components and parts, ensuring the high cutting precision, high speed and long service life. The working size and laser power can be customized according to the customer needs.
1. With the fully enclosed protective cover, the smoke and dust can be prevented, which is more environmentally friendly.
2. With the 15s exchange platform adopted, this laser cutter can achieve fast loading and unloading, which greatly improves the processing efficiency.
3. With the lightweight aviation aluminum beam adopted, the machine greatly improves the moving speed, and the processing precision is guaranteed.
4. Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like carbon steel ,stainless steel, cooper, aluminum, and galvanized sheet.
Machine Part
Aviation Aluminum Beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity.which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning
anti-deformation, etc, ensuring higher cutting accuracy.
Thick-walled carbon steel pipe welding bed
Adopting high-quality carbon steel welding bed, it is more stable and durable. The high-strength machine tool adopts 600 ℃ stress relief annealing treatment, which has strong structural rigidity, small deformation, and low vibration to ensure cutting accuracy.
Intelligent focusing laser head
Cooling:
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing Aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Technical Parameters
|
Model
|
DXTECH-1530ST
|
DXTECH-2040ST
|
DXTECH-2560ST
|
|
Max. exchange time
|
25s
|
30s
|
40s
|
|
Working area
|
1515*3030
|
2020*4040
|
2525*6050
|
|
Positioning accuracy
|
±0.03mm
|
±0.03mm
|
±0.03mm
|
|
Repositioning accuracy
|
±0.02mm
|
±0.02mm
|
±0.02mm
|
|
Max. acceleration
|
2.0G
|
2.0G
|
2.0G
|
|
Laser power
|
1kW – 6kW
|
1kW – 6kW
|
1kW – 6kW
|
|
Laser
|
Multiple options
|
Multiple options
|
Multiple options
|
|
Focusing method
|
Auto/manual
|
Auto/manual
|
Auto/manual
|
|
Max. running speed
|
140m/min
|
140m/min
|
140m/min
|
|
Machine bed
|
Sheet welded bed
|
Sheet welded bed
|
Sheet welded bed
|
Sample Show
Product category
About us
Our strict quality policy ensures thehigh reliability and longevity of DXTECH laser machines.
Quality control in the production process.
Random sample testing by Quality Control.
Traceability for DXTECH laser machines.
Reliable laser machines with long service life.
Laser machine spare parts availability exceeds 96%.
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.
02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.
03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
04 Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.
06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
