Quick Details
-
Input:
-
Tuner(DVB-S2/S/C/T)+IP+TS
-
Output:
-
YPbPr(RCA)+SDI(BNC)+CVBS(BNC), L/R(RCA)+XLR; (independent)2*TS+IP out
-
BISS mode:
-
BISS 1 and BISS E
-
Support 1:
-
Irtedo, Viaccess, Conax, Tongfang and other CAS decryption
-
Support 2:
-
Multiplexing function, and selectable output programs
-
Support 3:
-
VBI Teletext output, SNMP remote control
-
Voltage:
-
90~260VAC, 50/60Hz
-
Dimensions:
-
430mm(W)*400mm(D)*45mm(H)
-
Certification:
-
ROHS,CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-9010
-
Input:
-
Tuner(DVB-S2/S/C/T)+IP+TS
-
Output:
-
YPbPr(RCA)+SDI(BNC)+CVBS(BNC), L/R(RCA)+XLR; (independent)2*TS+IP out
-
BISS mode:
-
BISS 1 and BISS E
-
Support 1:
-
Irtedo, Viaccess, Conax, Tongfang and other CAS decryption
-
Support 2:
-
Multiplexing function, and selectable output programs
-
Support 3:
-
VBI Teletext output, SNMP remote control
-
Voltage:
-
90~260VAC, 50/60Hz
-
Dimensions:
-
430mm(W)*400mm(D)*45mm(H)
-
Certification:
-
ROHS,CE
|
SPECIFICATIONS
|
|
|
|
QPSK Input
|
Input frequency range: 950~2150MHz
Input level: -25~-65dBm Symbol rate: 2~45Mbaud Rolling-off factor: 0.35 Convolution encoding rate: 1/2, 2/3, 3/4, 5/6, 7/8 Interleave depth: I=12 Polarization: 0/13V/18V(optional) Connector: F, 75ohm |
|
|
QAM Input
|
Input frequency range: 47~862MHz
Input level: -20~-70dBm Symbol rate: 1~7Mbaud Demodulation: 16/32/64/128/256QAM Connector: F, 75ohm |
|
|
COFDM Input
|
Input frequency range: 174~230MHz, 470~862MHz
Input level: -20~70dBm FFT: 2K/8K Guard interval: 1/4, 1/8, 1/16, 1/32 Demodulation: QPSK, 16QAM, 64QAM Bandwidth: 6/7/8MHz FEC: 1/2, 2/3, 3/4, 5/6, 7/8 Connector: F, 75ohm |
|
|
MPEG TS Input
|
1*ASI input
Comply with EN 50083-9 ASI standard Max. bit rate: 170Mbps Effective bit rate: 1~54Mbps ASI format: Byte or Burst MPEG frame: 188/204 byte Return loss: >10dB Connector: BNC, 75ohm |
|
|
8PSK Input(optional)
|
Input frequency range: 950MHz~2150MHz
Input level: -25dBm~065dBm Symbol rate: 2~45Mbaud FEC: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 Polarization: 0/13V/18V(optional) Connector: F, 75ohm |
|
|
DS3 (optional)
|
Max. input bit rate: 44.736Mbps
Format: comply to G.804/G.752(DS3) standard Connector: BNC, 75ohm |
|
|
ASI Output
|
2*ASI output, BNC interface;
(1*ASI and 1*SDI output optional), BNC interface |
|
|
Video Output
|
1*CVBS, RCA/BNC interface
1*RGB/YUV interface (G/Y) 1*RGB/YUV interface (B/U) 1*RGB/YUV interface (R/Y) |
|
|
Audio Output
|
Unbalanced analog output: 1*L/R, RCA interface.(Stereo supported)
Balance analog output: 1*XLR, Canon interface |
|
|
IP Output
|
TS over IP input/output (2 independent Ethernet interface)
Connector: RJ45, 100Base-T Max. output bit rate: 70Mbps UDP/RTP: support Unicast and Multicast IGMPV2 |
|
|
General Output
|
1*DS3 loop output(optional)
1*Tuner loop out |
|
|
Video decoding
|
MPEG-2 SD, 4:2:0 Chroma sampling mode
|
|
|
Audio decoding
|
MPEG-1 Layer II
|
|
|
GENERAL OPTIONS
|
|
|
|
Control and Monitoring
|
Remote control network, SNMP supported
Local control: management via Front panel and LCD |
|
|
Physical and Power
|
Voltage: 90~260VAC, 50/60Hz
Consumption: 40W Operating temperature:-10~50°C Storage temperature: -20~70°C Humidity: 10~90% (non-condensing) Dimensions: 430mm(W)*400mm(D)*45mm(H) Weight: 5Kg |
|
OVERVIEW

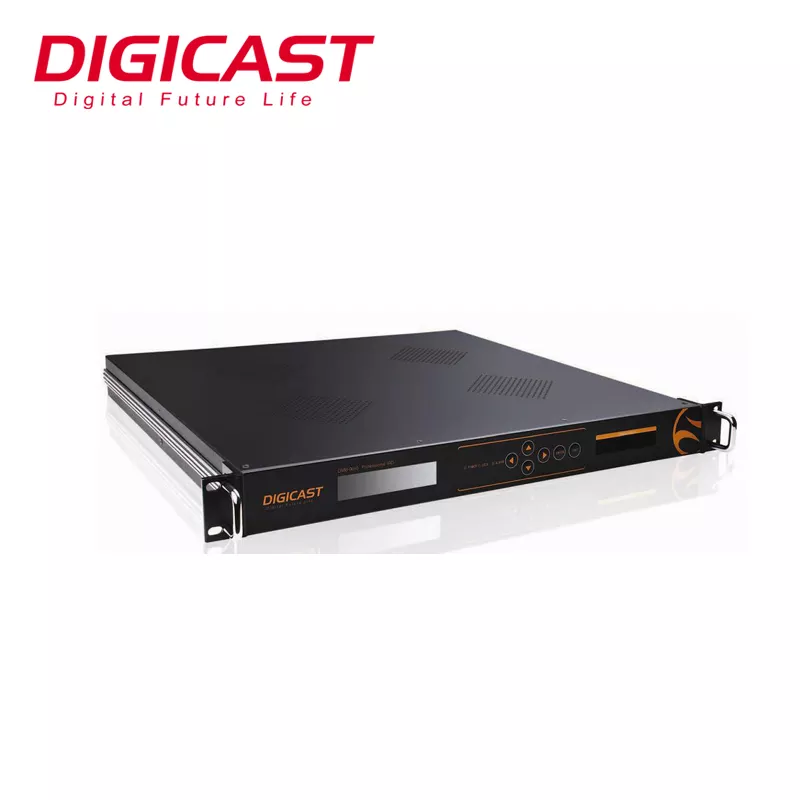

DMB-9010 SD Professional IRD optionally supports DVB-S, DVB-C, DVB-T, and DVB-S2 signal inputs. It receives and demodulates various RF signals and outputs DVB standard transparent MPTS. With 2 DVB-CI slots, DMB-9010 also supports various CA systems. Furthermore, embedded with MPEG-2 decoding module, it can decode and output analog AV signals at real time. DMB-9010 supports TS over IP, which can be widely applied to digital TV programs retransmission and IPTV system.
FEATURES
*Comply to DVB-S2/DVB-S/DVB-C/DVB-T and MPEG-2(MP@ML) standards
*Support various signals input, including QPSK/8PSK/QAM/COFDM/DS3, ASI, IP
*Supports TS over IP 100M input and output
*2 slots of PCMCIA module to decrypt multi-program and stream
*Support Irtedo, Viaccess, Conax, Tongfang and other CAS decryption
*Demodulate and output transparent multiple program TS
*Support multiplexing function, and selectable output programs
*Support VBI Teletext output
*Support BISS 1 and BISS E mode
*2* independent ASI output or 1*ASI and 1*SDI output
*SNMP remote control supported
|
