Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Qingdao HF
-
Voltage:
-
according to customer requirement
-
Dimension(L*W*H):
-
7100*1500*3000
-
Weight (KG):
-
6200 kg
-
Raw material:
-
sand,cement ,stone ,fly ash slag, industrial waste
-
Block Type:
-
hollow ,solid , paver, kerbstone
-
Color:
-
Customer's Demand
-
Molding cycle:
-
15-20s
-
Machine Type:
-
automatic with hydraulic
-
Worker:
-
5-6
-
Pallet size:
-
1100x700x25mm
-
Weight:
-
6200KG
-
Advantage:
-
High Efficiency
-
Main market:
-
Global
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Autoclaved aerated concrete block (AAC)
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
10080-13440 pcs/8 hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Qingdao HF
-
Voltage:
-
according to customer requirement
-
Dimension(L*W*H):
-
7100*1500*3000
-
Weight (KG):
-
6200 kg
-
Raw material:
-
sand,cement ,stone ,fly ash slag, industrial waste
-
Block Type:
-
hollow ,solid , paver, kerbstone
-
Color:
-
Customer's Demand
-
Molding cycle:
-
15-20s
-
Machine Type:
-
automatic with hydraulic
-
Worker:
-
5-6
-
Pallet size:
-
1100x700x25mm
-
Weight:
-
6200KG
-
Advantage:
-
High Efficiency
-
Main market:
-
Global
Specification

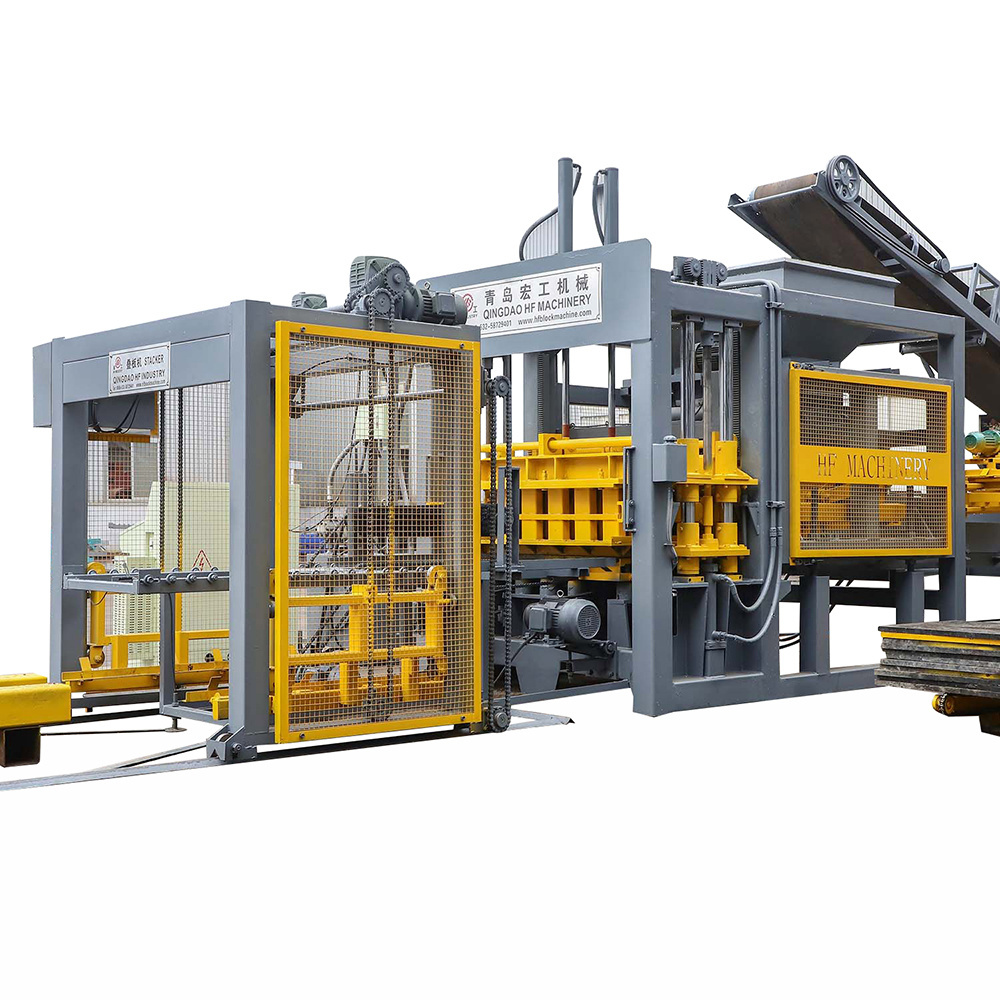

1- QT7-15 Fully Automatic Stacking Brick Making Machine Plant use PLC intelligent control, make the man-machine interface as true, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function.
2- Can produce the paver block with or without color on the surface, if need color, should use the face-color material feeding device.
3- Through mold-releasing oil cylinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
4- The unique forcing charge system can make use of various kinds of industrial waste and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc just changing the mold.
2- Can produce the paver block with or without color on the surface, if need color, should use the face-color material feeding device.
3- Through mold-releasing oil cylinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
4- The unique forcing charge system can make use of various kinds of industrial waste and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc just changing the mold.
|
Main Technical Specifications
|
|
|
|
Overall Dimension
|
5120x1950x2810mm
|
|
|
Rated pressure
|
16Mpa
|
|
|
Main vibration form
|
Platform vibration
|
|
|
Cycle Time
|
15-25 seconds
|
|
|
Vibrating Frequency
|
2800-4500 rolls/minute
|
|
|
Motors Power
|
31.8 KW
|
|
|
Pallet Size
|
1100x700x25mm
|
|
|
Raw Materials
|
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
|
|
|
Applied Products
|
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products,
slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
|
