Quick Details
-
Application:
-
Hotel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DW
-
Model Number:
-
DW180
-
Type:
-
Automatic Door Operators
-
Name:
-
Swing Gate Operator
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, Cross Categories Consolidation
-
Application:
-
Hotel
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DW
-
Model Number:
-
DW180
-
Type:
-
Automatic Door Operators
-
Name:
-
Swing Gate Operator

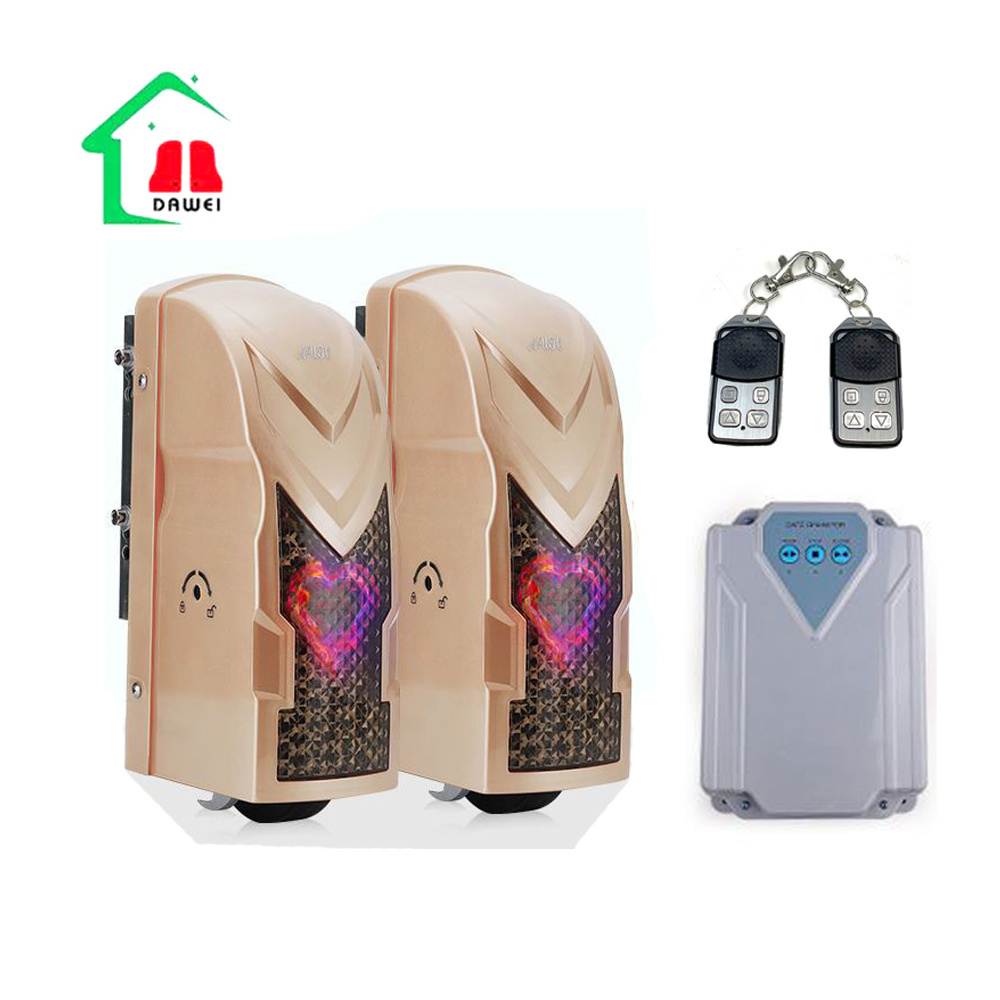

DC24V Wheel swing gate opener
specification
|
I nput Voltage |
220V/ 110V |
|
Working Voltage |
DC 24V |
|
Ambient Temperature |
-50 ~ +50 Celsius degree |
|
Gate Width (per wing) |
<= 6M |
|
Gate Weight (per wing) |
<= 600kgs |
|
Regular Components |
2 motors, 1 panel, 2 remote controllers |
|
Optional Parts |
IR sensor, storage battery, visual doorbell, card reader, fingerprint reader |
|
Weight (kg) |
23 |
|
Dimension (cm) |
42*32*31 |
|
Package |
Color printing carton with foam |
Basic features:
2 wired control system and integrating movement limiting with motor.
Basic functions:
1. open up or close up in sequence
2. Automatically stopping function against extra resistance
3. Infrared protection interface
4. back-up power supply interface
5. operating time limit protection
6. optional operation mode for single or dual wing
7. adjustable interval setting in sequent close-up
8 adjustable operating time limit setting
9. automatically stopping and running reversely against excessive resistance during closing-up
10. interface for card reader and underground detector
11. adjustable time setting for automatic close-up function
Product features:
1. Easier to drive the gate: The motor is mounted on the far end from the hinge point.
2. Special sliding groove: This enables the tolerance to the unevenness of road surface up to
90mm, maximum tolerance up to 300mm.
3. Unlimited opening angle: As far as the opener is concerned, the opening angle can be
greater than 180°.
4. Automatic locking unit: This unit combines the closing and the locking actions.
5. Optional manual operation: At power cut, the operation mode can be easier switched to
manual with a key.
6. Convenient installation: Can be mounted to any gate regardless of the condition of gate
posts or gate itself.
