Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Chi9na
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
L)1100*(W)755*(H)1540mm
-
Packing material:
-
Plastic Film
-
Machine material:
-
Stainless Steel 304/Carbon Steel
-
Usage:
-
Filling Packing Machine
-
Keyword:
-
Automatic Snack Food Sugar Packing
-
Feature:
-
Easy Opperation
-
Sealing type:
-
Hot Sealing
-
Bag type:
-
3/4 Sides Seal/Back Seal
-
Control system:
-
PLC+English Screen
-
Optional Devices:
-
Data Printer
-
After-sales Service Provided:
-
Online support
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Bags
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
300
-
Voltage:
-
220V
-
Place of Origin:
-
Chi9na
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
L)1100*(W)755*(H)1540mm
-
Packing material:
-
Plastic Film
-
Machine material:
-
Stainless Steel 304/Carbon Steel
-
Usage:
-
Filling Packing Machine
-
Keyword:
-
Automatic Snack Food Sugar Packing
-
Feature:
-
Easy Opperation
-
Sealing type:
-
Hot Sealing
-
Bag type:
-
3/4 Sides Seal/Back Seal
-
Control system:
-
PLC+English Screen
-
Optional Devices:
-
Data Printer
-
After-sales Service Provided:
-
Online support

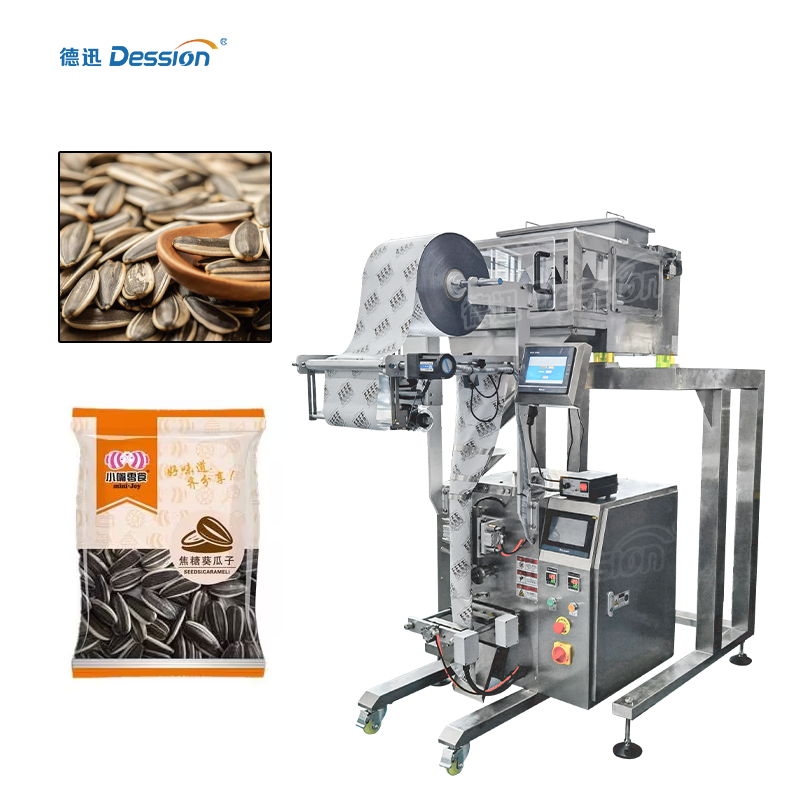

New Vertical Granule Packing Machine Sunflower Seeds Beans Weighing Packing Machine
Granule packing machine is suitable for loose rounded granules in the food, chemical and other industrial. Such as: puffed granules, peanuts, melon seeds, rice, 3 in 1coffee, pepper, sugar, biscuits etc.
According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal,stand-up bag and linking bag.
|
Model
|
DS-320A+
|
|
|
|
Measuring Range
|
Linear scale
|
|
|
|
Packaging Speed
|
30-80 bags/min
|
|
|
|
Bag Width
|
50-200mm
|
|
|
|
Bag Length
|
40-300mm
|
|
|
|
Film Roll Width
|
Max. 420mm
|
|
|
|
Power
|
220V, 50/60HZ, 1.2KVA
|
|
|
|
Optional Device
|
Date Coder / Air-filling Device / Punching Device
|
|
|
|
Machine Size
|
L)1170* W)950* H)1740mm
|
|
|
-
1. The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have passed the CE Standard.
2. Computer controller is the first patent of China; inverter and power switch are all imported with advanced technology.
3. Optional English or Chinese screen display, easy and simple operation.
4. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
5. Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.
6. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.
7. Equipped with rolled cup device enables volume of packing changing anytime, loss reducing and improve productivity.
8. Alarming function for specific output; automatic display of packaging speed.
9. Optional coding equipment and with 1 to 3 lines for batch number and expiration date.
10. Bag-making, filling, sealing, cutting, counting, thermal pressing of batch number can be achieved automatically and straightly.
11. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
12. Bag-making equipment can be changed according to specific requirement of customers and products.
FAQ
Q1: Customer: How do I find a Packing machine model suitable for my product?
1. What kind of product you have.
2. The bag/sachet/pouch size ( the length, width).
3. The weigh of your product for each bag is sometimes neccessary told(it depends what specific product you have).
4. Your requirement for the machines and the bag types.
Q2: Customer: How about the delivery time?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small packing machines.For the large-scale machine, it takes longer.
Q3: Customer: Can you offer some video or pictures of the packing machine?
Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for you reference.
Q4: Customer: How about the after-sales service? ( Buy machine here? Don't Worry! )
1. With professional after-sales service team, we can provide you with a satisfied and technical service no matter which country you are in.
2. Any videos of packing machine installation, adjusting, setting, maintenance are available for any buyer.
3. If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem.
4. Warranty : 2 years(Electric accessories) and free life time maintenance.
(Notice: In order to save your cost, we offer various video chatting service for you, but if you insist on the service oversea, the travel expense and technician cost will paid by you.)
1. What kind of product you have.
2. The bag/sachet/pouch size ( the length, width).
3. The weigh of your product for each bag is sometimes neccessary told(it depends what specific product you have).
4. Your requirement for the machines and the bag types.
Q2: Customer: How about the delivery time?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small packing machines.For the large-scale machine, it takes longer.
Q3: Customer: Can you offer some video or pictures of the packing machine?
Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for you reference.
Q4: Customer: How about the after-sales service? ( Buy machine here? Don't Worry! )
1. With professional after-sales service team, we can provide you with a satisfied and technical service no matter which country you are in.
2. Any videos of packing machine installation, adjusting, setting, maintenance are available for any buyer.
3. If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem.
4. Warranty : 2 years(Electric accessories) and free life time maintenance.
(Notice: In order to save your cost, we offer various video chatting service for you, but if you insist on the service oversea, the travel expense and technician cost will paid by you.)
