Easy Installation HVAC/FAN Floor Spring Mount Isolator Floor Vibration Shock Absorb

Easy Installation HVAC/FAN Floor Spring Mount Isolator Floor Vibration Shock Absorb

FOB Reference Price: Get Latest Price

≥1 Pieces

US $23.5

≥100 Pieces

US $11

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: MA

Product name:: Anti Vibration Spring Mounts

Material:: Galvanized Steel

Load capacity:: 10~9000kg

Certificate:: ISO9001

Function:: Vibration Attenuation

Installation:: Floor Standing

Rated Deflection:: 25mm

Spring Rate:: 4~20kg/mm

OEM:: Valid

Quick Details

Application:: Other, Chillers,Water cooling tower, Pump, Air conditioning,Exhaust fan

Place of Origin:: Jiangsu, China

Brand Name:: Bellking

Model Number:: MA

Product name:: Anti Vibration Spring Mounts

Material:: Galvanized Steel

Load capacity:: 10~9000kg

Certificate:: ISO9001

Function:: Vibration Attenuation

Installation:: Floor Standing

Rated Deflection:: 25mm

Spring Rate:: 4~20kg/mm

OEM:: Valid

Product Description

Details For Spring Mounts
Item	spring mount, spring vibration isolator, Spring air conditioner Damper,Spring floor standing isolator ,etc.
Type	MA,MB,MC,MD,ME,HS, Ect.
Material	Galvanized steel
Material properties	Anti-aging and strong toughness
Color	sliver or other color
Usage	remarkable shock absorption and protect the machinery
Application	All kinds of machinery, Water tower,Generator,air compressor, etc
OEM	Welcome OEM

CHARACTERISTICS

* The spring is designed with low natural frequency value and is treated with ED and paint.

* Spring are heat treated and stress elimination treatment,long service life.

* The body is treated with Dacro rust prevention.

* Bottom anti-slip and anti-shock bolt design,high safety.

*The installation is simple and the height and level can be adjusted according to the actual need.

BENEFITS

- Quick and easy installation

- Heavy-duty vibration isolation

- Floor Standing Mount

APPLICATION

- All kinds of heavy machinery

- Water Chiling Units,cooling water tower

- Fire pump and exhaust fan

- Generator,air compressor

- Dry transformer,oil immersed transformer

Size Information

Spec	Dimensions(mm)									Fixing bolt
Spec		L	W	L1	W1	A	B	H	φBD	Fixing bolt
MA-1	260	100	210	100	230	0	195	16	M12
MA-2	235	220	235	120	195	180	200	16
MA-4	320	165	320	165	290	135	200	14
MA-6	400	170	400	170	370	140	200	18
MA-9	420	250	420	250	384	214	200	18

Type	Rated Capacity(kg)	Spring Rate (kg/mm)	Rated Deflection (mm)	Color Code
MA-1-100	90-110	4.2	25	Yellow
MA-1-200	160-210	7.1	25	Green
MA-1-300	220-320	10.8	25	Red
MA-1-400	360-430	14.2	25	Blue

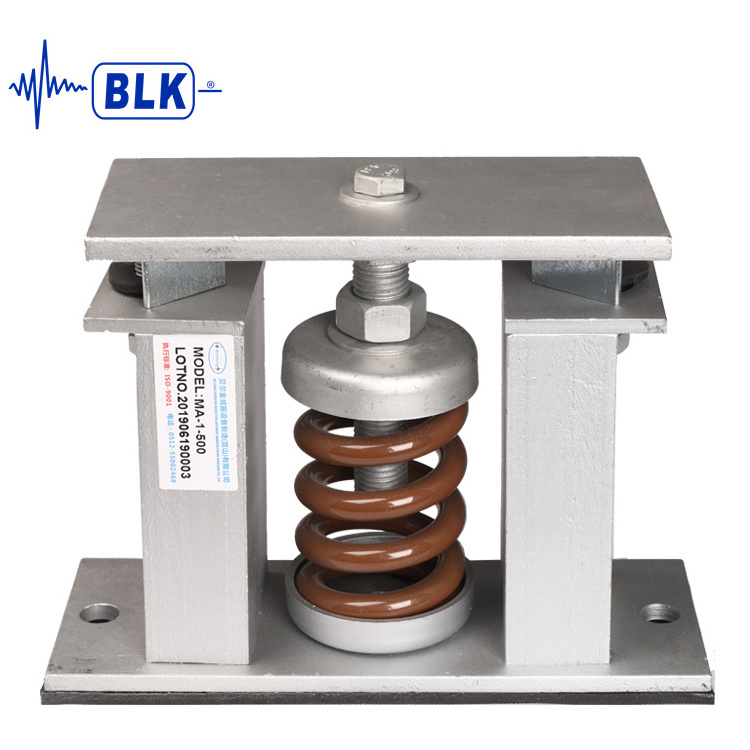

MA-1-500	470-530	19.2	25	Brown
MA-1-600	530-650	22.6	25	Gray
MA-1-700	650-700	26.0	25	White
MA-1-850	700-850	33.6	25	Khaki
MA-1-1000	850-1000	46.0	25	Blackish green
MA-2-800	700-850	28.4	25	Blue
MA-2-1000	950-1050	38.3	25	Brown
MA-2-1200	1050-1250	45.2	25	Gray
MA-2-1400	1250-1400	52.0	25	White
MA-2-1700	1400-1700	68.0	25	Khaki
MA-2-2000	1850-2150	92.1	25	Blackish green
MA-4-1200	880-1300	43.2	25	Red
MA-4-1600	1450-1700	56.8	25	Blue
MA-4-2000	1800-2000	76.6	25	Brown
MA-4-2400	2000-2400	90.3	25	Gray
MA-4-2800	2400-2800	103.2	25	White
MA-4-3400	2800-3400	136.0	25	Khaki
MA-4-4000	3200-4000	184.1	25	Blackish green
MA-6-3600	3000-3600	135.5	25	Gray
MA-6-4200	3600-4200	155.9	25	White
MA-6-5100	4200-5100	204.0	25	Khaki
MA-6-6000	4600-6100	276.0	25	Blackish green
MA-9-5400	4700-5800	216.0	25	Gray
MA-9-6300	5800-6400	252.0	25	White
MA-9-7500	6500-7500	305.0	25	Khaki
MA-9-9000	7600-9000	359.0	25	Blackish green
