Quick Details
-
Year:
-
2024
-
Voltage:
-
380V, 380V/415V/customized
-
Dimension(L*W*H):
-
1860*800*1990mm
-
Motor Power (kW):
-
7.5kw
-
Weight (T):
-
3
-
Item:
-
Shearing Bending and Notching Machine
-
Motor Power:
-
3KW
-
Function:
-
steel round bar bending machine
-
Control system:
-
Manual
-
Weight:
-
700kg
-
Keyword:
-
Bending and Notching Machine
-
Color:
-
Customers' Requirement
-
Machine Type:
-
Bending Machine
-
Application:
-
Metal Sheet Punching
Quick Details
-
Nominal Force (kN):
-
900
-
Place of Origin:
-
Henan
-
Brand Name:
-
KAIRUIEN
-
Year:
-
2024
-
Voltage:
-
380V, 380V/415V/customized
-
Dimension(L*W*H):
-
1860*800*1990mm
-
Motor Power (kW):
-
7.5kw
-
Weight (T):
-
3
-
Item:
-
Shearing Bending and Notching Machine
-
Motor Power:
-
3KW
-
Function:
-
steel round bar bending machine
-
Control system:
-
Manual
-
Weight:
-
700kg
-
Keyword:
-
Bending and Notching Machine
-
Color:
-
Customers' Requirement
-
Machine Type:
-
Bending Machine
-
Application:
-
Metal Sheet Punching
Product Description

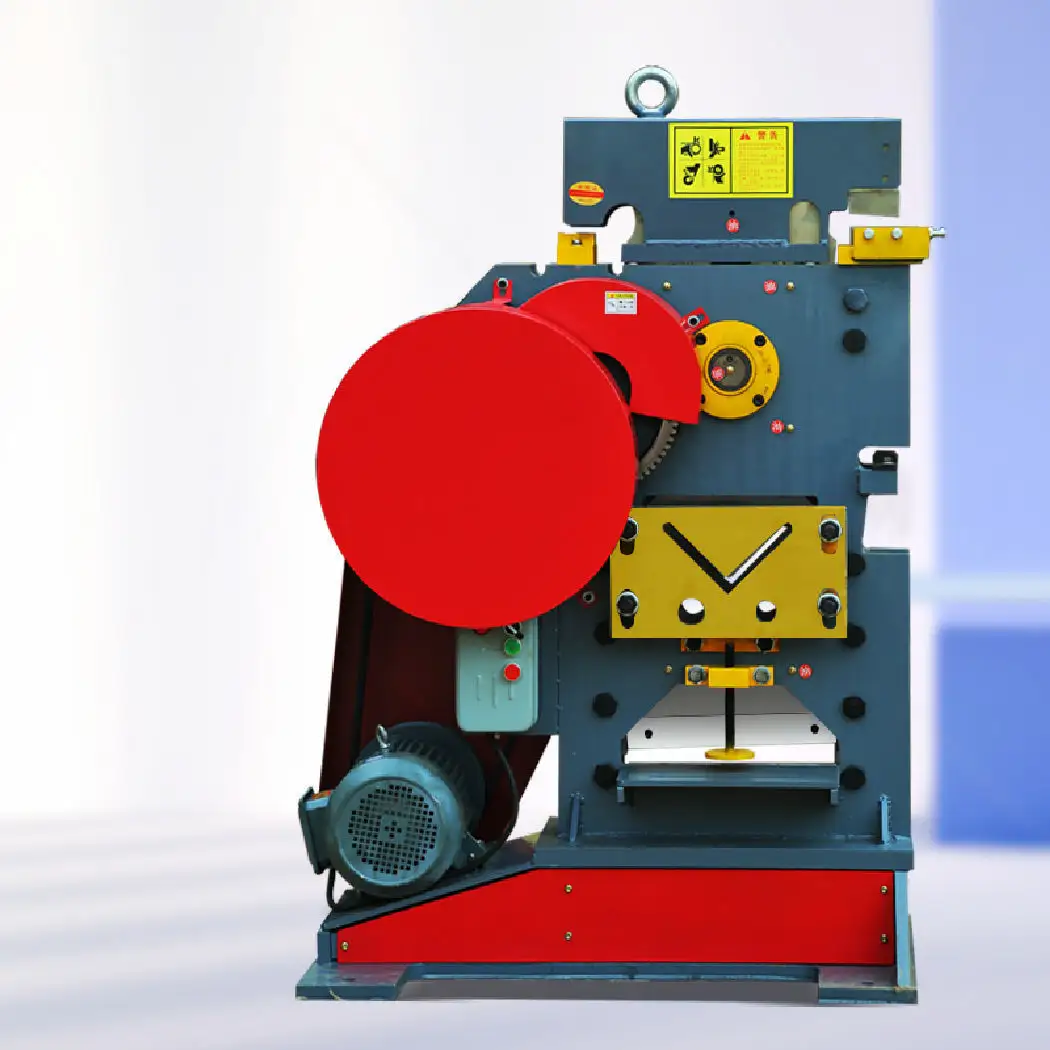

Angle Iron Punching Shearing Machine Electric Combine Punching and Shearing Machine Ironworker
Feature of
Combine Punching and Shearing Machine Electric Cutting Machine for Angle
Multi-function Hydraulic Iron worker is the latest product of the punching and shearing machine which can cut , punch, notch and bend all kinds of materials such as plate , flat bar , square bar , round bar , equal , angle, channel ,I-beam and so on .
Specification
|
model
|
08 type
|
10 type
|
12 type
|
||
|
Shear strength
|
360kn
|
500kn
|
900kn
|
||
|
maximum cutter travel
|
27mm
|
30mm
|
36mm
|
||
|
Slide Strokes Per Minute
|
30 times/m
|
30 times/m
|
30 times/m
|
||
|
Motor Power(kw)
|
2.2kw-380v
|
3kw-380v
|
4kw-380v
|
||
|
Overall dimensions
|
900*600*1100mm
|
900*600*1250mm
|
900*600*1450mm
|
||
|
Weight(kg)
|
550kg
|
700kg
|
1100kg
|
||
|
Tool material
|
9crsi
|
|
|
||
|
Punching shear type
|
QA32-08B
|
QA32-10B
|
QA32-12B
|
||
|
Shear maximum Angle steel
|
75*75*8
|
100*100*10
|
125*125*12
|
||
|
Punch maximum round hole
|
ø22*8
|
ø25*10
|
ø31*12
|
||
|
Maximum long punch
|
17*40*8
|
18*40*8
|
21*40*12
|
||
|
Shear maximum plate
|
110*8
|
200*8
|
330*12
|
||
|
Shear maximum round steel
|
ø30
|
ø38
|
ø40
|
||
|
Square shear Angle of Angle steel
|
50*50
|
50*50
|
50*50
|
||
|
V-shaped shear Angle
|
50*50
|
50*50
|
50*50
|
||
|
Diagonal shear
|
50*50
|
50*50
|
50*50
|
||
|
Shear maximum channel steel
|
GB100 #
|
GB120 #
|
GB160 #
|
||
