PCB PROCESSING CAPABILITY
- Product Details
- {{item.text}}

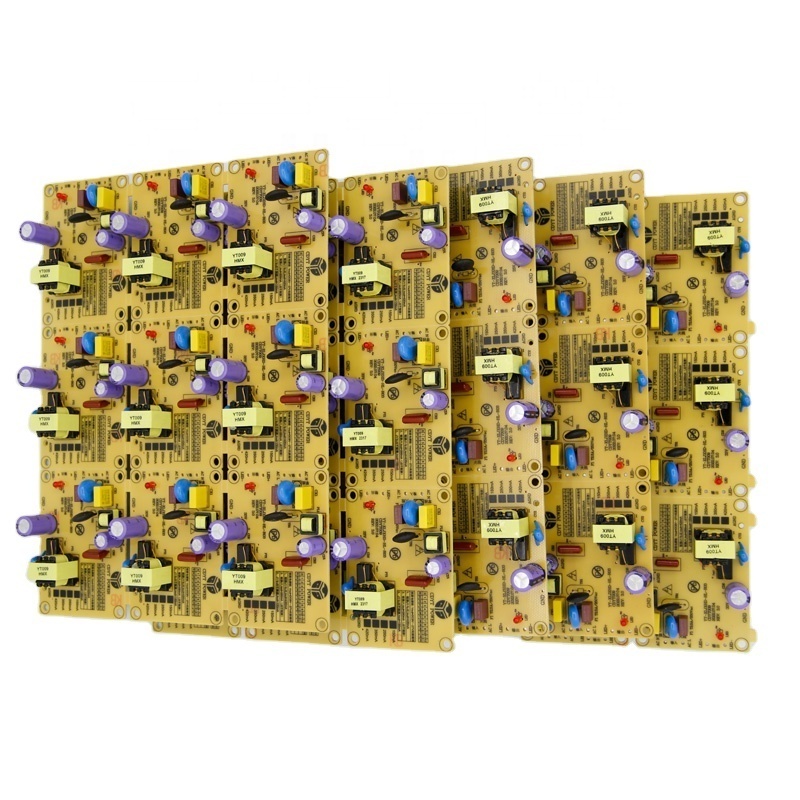

Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
INFINITE PCB
-
Copper Thickness:
-
1OZ-3OZ
-
Min. Hole Size:
-
0.15mm
-
Min. Line Width:
-
0.1mm
-
Min. Line Spacing:
-
0.1mm
-
Surface Finishing:
-
HASL/Lead-free HASL
-
Solder mask color:
-
Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
-
PCBA service:
-
SMD SMT DIP Component Assembly
-
MOQ:
-
5PCS
-
Keywords:
-
PCBA OEM PCB Assembly
Quick Details
-
Base Material:
-
FR4
-
Board Thickness:
-
0.2-3mm
-
Model Number:
-
PCBA
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
INFINITE PCB
-
Copper Thickness:
-
1OZ-3OZ
-
Min. Hole Size:
-
0.15mm
-
Min. Line Width:
-
0.1mm
-
Min. Line Spacing:
-
0.1mm
-
Surface Finishing:
-
HASL/Lead-free HASL
-
Solder mask color:
-
Green.Black.Red.Yellow.White.Blue.Purple.Matte Green. Matte Black
-
PCBA service:
-
SMD SMT DIP Component Assembly
-
MOQ:
-
5PCS
-
Keywords:
-
PCBA OEM PCB Assembly
|
SQ
|
ITEM
|
Medium & Low Volume CAPABILITY
|
Sample (within 20PCS)
|
|
|
1
|
Maximum card
|
L50 x W50mm ~ L510 x W460mm
|
No size limit
|
|
|
2
|
Maximum thickness board
|
3mm
|
No thickness limit
|
|
|
3
|
Minimum thickness board
|
0.2 mm
|
No thickness limit
|
|
|
4
|
Minimum chip part
|
150mm*150mm
|
01005 Package and above
|
|
|
5
|
Maximum part size
|
Maximum part mounting accuracy (100FP)
|
No limit
|
|
|
6
|
Minimum pin part spacing
|
0.3 mm
|
0.3 mm
|
|
|
7
|
Minimum ball part (bga) spacing
|
0.3 mm
|
0.3 mm
|
|
|
8
|
Maximum part mounting accuracy (100FP)
|
The whole mounting accuracy is up to ±50 microns, and the whole repeating accuracy is up to ±30 microns
|
|
|
|
9
|
SMT capability
|
6-8 million points/day
|
More than 200 types/day
|
|
|
10
|
DIP plug-in processing
|
500,000 points/day
|
|
|
|
SQ
|
ITEM
|
CAPABILITY
|
|
1
|
Base Material
|
FR-4, Aluminum substrate,High TG FR-4 , Halogen Free material ,CEM-3,CEM-1,PTFE,Rogers,etc
|
|
2
|
Layers
|
1-6 layers
|
|
3
|
Finished inner/outer copper thickness
|
1OZ/2OZ/3OZ
|
|
4
|
Finished board thickness
|
0.3-3mm
|
|
5
|
Max board size
|
L50×W50mm～L510×W460mm
|
|
6
|
Min conductor line width/spacing
|
0.1mm
|
|
7
|
Min hole size
|
Mechanical hole: 0. 15mm Laser hole: 0.1mm
|
|
8
|
Min welding ring
|
0.2mm
|
|
9
|
Min solder mask bridge
|
≥0.08mm
|
|
12
|
Outine profile
|
Rout/ V-cut/ Bridge/ Stamp hole
|
|
13
|
Solder mask color
|
Green,yellow,black,blue,red,white,matte green
|
|
14
|
Component mark color
|
white,yellow,black
|
|
15
|
Surface treatment
|
0SP.0.2-0.5um
HASL: 2-40um Lead free HASL: 2-40um ENIG: Au 1-10U" ENEPIG: PB 2-5U"/ Au 1-8U" Immersion Tin:0.8-1 .5um Immersion silver: 0.1-1 .2um Gold plating: Au 1-1 50U" |
|
16
|
E-Test
|
Flying probe tester: 0.4-6.0mm,max 19.6*23. 5inch
|
|
|
|
Min spacing from test pad to board edge : 0.5 mm
|
|
|
|
Min conductive resistance :5 Q
|
|
|
|
Max insulation resistance : 250 MQ
|
|
|
|
Max test voltage : 500 V
|
|
|
|
Min test pad diameter:6 mil
|
|
|
|
Min test pad to pad spacing: 10 mil
|
Applicable to a wide range of high-tech industries such as: telecommunications, power supply, computer, industrial control,digital products, scientific and educational instruments, medical equipment, automobiles, aerospace defense and so on.
Infinite PCB is a professional company specializing in the research, development, sales, and service of PCB and PCBA.
Our affiliated factory offers a one-stop contract manufacturing solution for global customers, including PCB manufacturing, PCB assembly, component sourcing, program testing, and final packaging.
Our Services & Strength
*Trusted on time delivery
*Qualified engineering professionals
*Extremely competitive pricing
*Dedicated sales representatives for fast response times
*15 years experience
*BOM sourcing service
*A full set of production equipment
