Wholesale ISO 18000-6C Readers Elevator Waterproof Access Control Card Nfc Reader

Wholesale ISO 18000-6C Readers Elevator Waterproof Access Control Card Nfc Reader

FOB Reference Price: Get Latest Price

≥2 Pieces

US $100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Qerwin

Product Name:: UHF RFID Reader

Power Supply:: 5V DC

Weight:: 160g

Supporting Card:: Alien H3

Application:: Access Control

Reading Distance:: 2m

Material:: Tempered Glass

Type:: Passive UHF RFID Reader

Quick Details

Frequency:: 860-960mhz

Protocol:: ISO 18000-6C

Place of Origin:: Guangdong, China

Brand Name:: Qerwin

Product Name:: UHF RFID Reader

Power Supply:: 5V DC

Weight:: 160g

Supporting Card:: Alien H3

Application:: Access Control

Reading Distance:: 2m

Material:: Tempered Glass

Type:: Passive UHF RFID Reader

Product Overview

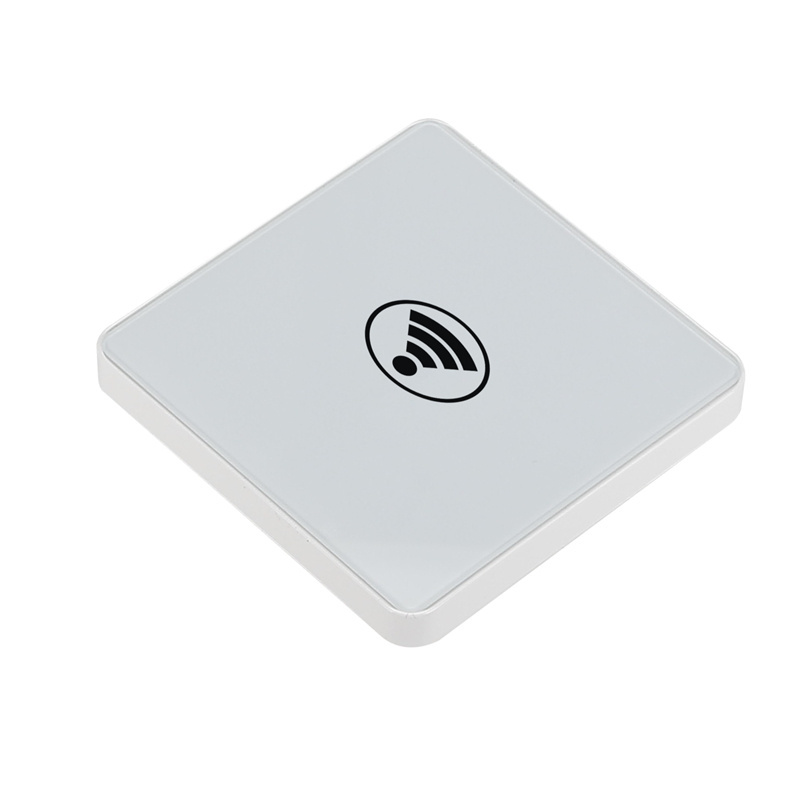

Access control Long Distance RFID Card UHF RFID Desktop reader Small Size ISO18000-6C White Color Output Wiegand TTL

UHF small close range all-in-one machine QW-103, Internal using low power consumption, high cost-
effective reader module scheme design, has the characteristics of long reading distance, fast identification speed,
many types of interfaces and convenient installation.
It can be widely used in logistics tracking, commodity inventory, goods sorting, vehicle management,
personnel management, asset management, medical system, cold chain management, temperature monitoring,
power monitoring, anti-counterfeiting system and production process control and other applications.

Details Images

* Small close-range integrated text reader based on low power consumption and high cost performance
* Working frequency: 840 ~ 868 MHz / 902 ~ 928 MHz (it can be adjusted according to the requirements of different
countries or regions)
* Supports electronic labeling meeting EPC Global UHF Class 1 Gen 2 / ISO 18000-6C standards
* Optimized multi-label inventory algorithm, inventory label speed greater than 100, sheet / second
* Work with wide spectrum frequency hopping (FHSS) or fixed frequency transmission
* RF output power up to 26 dBm (1 dBm step-adjustable)

* Support for UART serial communication interface (3.3 V TTL level)
* Support Wegen data communication interface
* Integrated design, without an external antenna
* Provided the presentation software and the SDK, the development package

PRODUCT SPECIFICATIONS

RF parameters	Working Frequency	840 ~ 960 MHz optional, frequency hopping function
		Protocol	ISO18000-6C
		Output Power	26dBm±1dBm（MAX）
		Power output step	1dBm
		antenna polarization	circular polarization
		antenna gain	2dBi
		Identify distance	> 2 m (related to label and environment)
Communication Interface	Serial port	RS232
Communication Interface		Wiegand	Wiegand 26
Electrical Parameters	working voltage	DC 5.0V (+3.7V ~+5.5V )
		Normal current	<50mA /DC 5V
		maximum current	<200mA /DC5V
Physical Parameters	working temperature	-20℃ to +60℃
		Storage temperature	-40℃ to +80℃
		Working humidity	5% ~ 95% (No condensation)
		Overall dimensions (Rx D)	868635mm
		weight	160g
		Material	ABS
