Quick Details
-
Weight (KG):
-
800 kg
-
name:
-
Efficient Dissolved Air Flotation Machine in China
-
Application:
-
Oil Water Separator
-
Keywords:
-
Dissolved Air Flotation
-
Material:
-
carbon steel or stainless steel
-
Certification:
-
CE/ISO9001
-
Function:
-
Removing COD BOD NH-N
-
Usage:
-
wastewater pre-treatment
-
Model:
-
GNDAF
-
service life:
-
>5 years
-
MOQ:
-
1 Set
Quick Details
-
Applicable Industries:
-
Wastewater Treatment
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Jiangsu, China
-
Weight (KG):
-
800 kg
-
name:
-
Efficient Dissolved Air Flotation Machine in China
-
Application:
-
Oil Water Separator
-
Keywords:
-
Dissolved Air Flotation
-
Material:
-
carbon steel or stainless steel
-
Certification:
-
CE/ISO9001
-
Function:
-
Removing COD BOD NH-N
-
Usage:
-
wastewater pre-treatment
-
Model:
-
GNDAF
-
service life:
-
>5 years
-
MOQ:
-
1 Set
Product Description

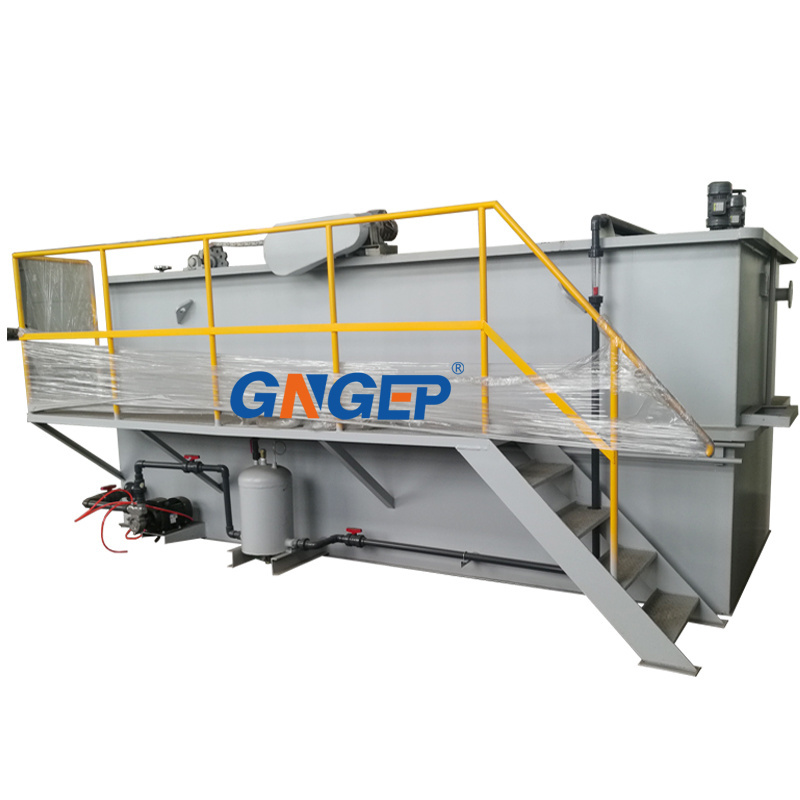

Efficient Dissolved Air Flotation Machine in China
Oil Water Separator Wastewater Plant Treatment DAF Dissolved Air Flotation is an efficient flotation method for water
clarification. The term refers to the method of producing flotation by dissolving air in the water under pressure and then
releasing the pressure. When the pressure is released the solution becomes supersaturated with air as millions of small bubbles form. These bubbles attach to any particles in the water causing their density to become less than that of water. The particles then rapidly float to the surface for collection and removal, leaving the clarified water behind.
Features
1. Flow rate of one set: 1-300 m³/h.
2. Recycle flow dissolved air flotation.
3. High efficiency pressurization system providing high quantity dissolved-air water to create large
quantities of small bubbles.
4. Custom design on different dissolved air flotation equipment and recycle flow ratio according to
the type of wastewater and treatment requirement to achieve target removal effect and stability.
5. Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
6. Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is
available to save the space and cost.
7. Automatic and remote controllable.
8. Material of construction: carbon steel epoxy painted, carbon steel FRP line, SS304/SS316L
2. Recycle flow dissolved air flotation.
3. High efficiency pressurization system providing high quantity dissolved-air water to create large
quantities of small bubbles.
4. Custom design on different dissolved air flotation equipment and recycle flow ratio according to
the type of wastewater and treatment requirement to achieve target removal effect and stability.
5. Adjustable stainless steel chain type skimmer to suit the different quantity of sludge.
6. Integrated coagulation tank and or flocculation tank and cleaning water tank(as optional)is
available to save the space and cost.
7. Automatic and remote controllable.
8. Material of construction: carbon steel epoxy painted, carbon steel FRP line, SS304/SS316L
DAF is a proven, and effective physical-chemical technology commonly used for many industrial and municipal applications,including
•Product recovery and reuse
•Pretreatment to meet sewer discharge limits
•Pretreatment to reduce loading on downstream biological systems
•Polishing of biological treatment effluent
•Removing silt and grease from industrial water
Material Comparison
Technical Parameters
Advantages
1. Total suspended solids (TSS) reduction up to 97%
2. Chemical oxygen demand (COD) removal up to 85%
3. Low-cost operation and maintenance
4. Standard and customized units meet a variety of application and flow ranges
5. Designed for ease of installation and use
6. Suitable for high-salinity water
2. Chemical oxygen demand (COD) removal up to 85%
3. Low-cost operation and maintenance
4. Standard and customized units meet a variety of application and flow ranges
5. Designed for ease of installation and use
6. Suitable for high-salinity water
