Quick Details
-
Dimension(L*W*H):
-
570*580*1503mm
-
Model Number:
-
J23
-
Weight (T):
-
6.3
-
Warranty of core components:
-
24 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Stroke of sliding block:
-
35
-
Closed height:
-
150mm
-
Closed height adjustment:
-
30mm
-
Product name:
-
Open-type tilting stainless steel cookware making press
-
Packaging Details:
-
Plastic film or according to customer's requirement
-
Keyword:
-
pot press machine
-
Material:
-
Hard Steel
-
Machine Function:
-
Punching Ang Press
-
Power:
-
750
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
rbqlty
-
Voltage:
-
380V/220V Optional
-
Dimension(L*W*H):
-
570*580*1503mm
-
Model Number:
-
J23
-
Weight (T):
-
6.3
-
Warranty of core components:
-
24 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Stroke of sliding block:
-
35
-
Closed height:
-
150mm
-
Closed height adjustment:
-
30mm
-
Product name:
-
Open-type tilting stainless steel cookware making press
-
Packaging Details:
-
Plastic film or according to customer's requirement
-
Keyword:
-
pot press machine
-
Material:
-
Hard Steel
-
Machine Function:
-
Punching Ang Press
-
Power:
-
750
Product informations

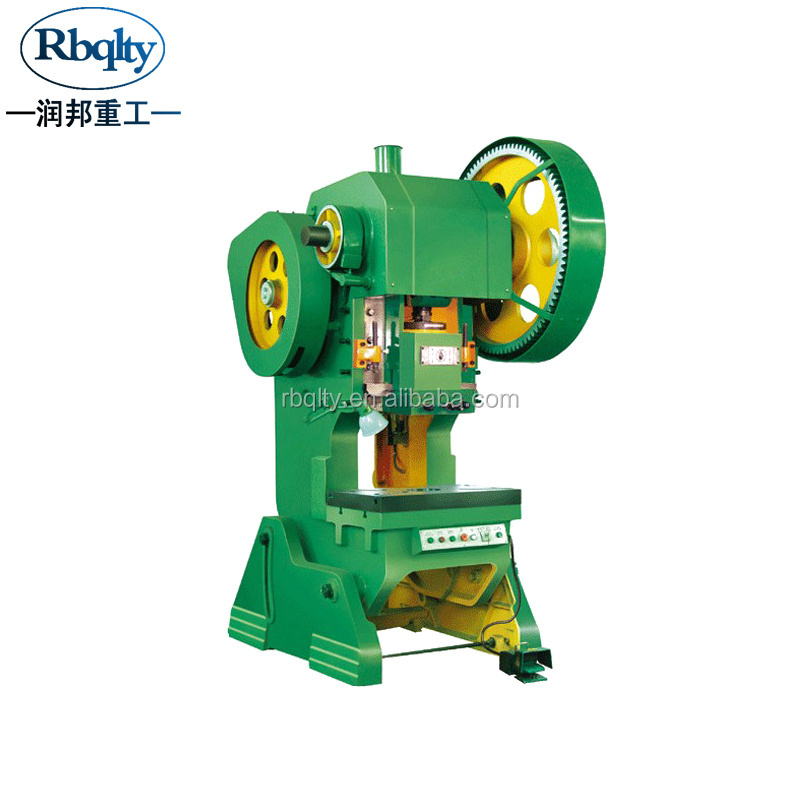

J23 series
Main Features:
1. J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
2. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
4. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
5. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
6. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
7. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
8. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
|
Technical Parameters
|
|
Unit
|
J23-6.3
|
J23-10
|
J23-16
|
J23-25
|
J23-40
|
J23-63
|
J23-80
|
|
|
Nominal force
|
|
kN
|
63
|
100
|
160
|
250
|
400
|
630
|
800
|
|
|
Stroke of nominal force
|
|
mm
|
2
|
2
|
2
|
3
|
5
|
5
|
6
|
|
|
Stroke of sliding block
|
|
mm
|
35
|
50
|
60
|
70
|
100
|
100
|
120
|
|
|
Number of strokes
|
|
times/min
|
145
|
130
|
110
|
60
|
55
|
50
|
45
|
|
|
Closed height
|
|
mm
|
150
|
180
|
190
|
210
|
325
|
350
|
370
|
|
|
Closed height adjustment
|
|
mm
|
30
|
35
|
40
|
50
|
65
|
80
|
90
|
|
|
Distance from slider block center to the frame
|
|
mm
|
110
|
130
|
150
|
180
|
250
|
260
|
275
|
|
|
Length between columns
|
|
mm
|
120
|
140
|
160
|
230
|
270
|
310
|
410
|
|
|
Hole size for die handle
|
Diameter
|
mm
|
30
|
35
|
35
|
40
|
50
|
50
|
60
|
|
|
|
Depth
|
mm
|
50
|
50
|
60
|
60
|
70
|
70
|
70
|
|
|
Size of worktable
|
Left-right
|
mm
|
310
|
360
|
440
|
500
|
680
|
720
|
750
|
|
|
|
Front-back
|
mm
|
200
|
240
|
270
|
320
|
460
|
480
|
530
|
|
|
Blanking hole diameter
|
|
mm
|
60
|
80
|
100
|
130
|
150
|
160
|
180
|
|
|
Table plate thickness
|
|
mm
|
30
|
35
|
40
|
50
|
65
|
80
|
100
|
|
|
The max tilt angle
|
|
°
|
45
|
35
|
35
|
30
|
30
|
20
|
20
|
|
|
Left-right
|
|
mm
|
570
|
680
|
730
|
920
|
1060
|
1130
|
1350
|
|
|
Front-back
|
|
mm
|
580
|
630
|
950
|
1180
|
1435
|
1480
|
1715
|
|
|
Height
|
|
mm
|
1503
|
1658
|
1750
|
2040
|
2350
|
2450
|
2670
|
|
|
Power
|
|
kw
|
0.75
|
1.1
|
1.5
|
2.2
|
4
|
5.5
|
7.5
|
|
Details
Punch design principle is converts circular motion to linear motion, the output by the main motor, drive the flywheel, clutch driven gear, crankshaft (or eccentric gear), connecting rod, such as operation, to achieve the linear motion of the slider, from the main motor to the connecting rod movement in circular motion.
electric motor:
Electrical box:
The main circuit of the motor has short circuit, overload and phase protection.
Electric box doors and cabinets are equipped with a power-off device to ensure the safety of operation and maintenance.
machine adjusting screw:
The open-type inclinable press is designed for tilting casting structure, which makes it easy for stamping parts or scrap to slip off the mould.
gear
gear is used to ensure transmission stiffness.
bearing force is huge in Stamping process, Moreover, the bearing force changed a lot, and it requires a large part to drive.
