Quick Details
-
Brand Name:
-
RTU5024, rtu5024
-
Model Number:
-
2G/4G
-
Operating Temperature:
-
-20℃~60℃
-
Product Name:
-
GSM Gate Opener
-
Warranty:
-
1 Year
-
Design Style:
-
Modern
-
Rated voltage:
-
12VDC1A
-
Storage temperature:
-
-20℃~60℃
-
Operating frequency:
-
full frequency
-
Net weight:
-
0.20 kg
-
After-sale Service:
-
Online technical support
-
Application:
-
Garage Door
Quick Details
-
Max. Current:
-
1A
-
Max. Voltage:
-
12V
-
Place of Origin:
-
Heilongjiang, China
-
Brand Name:
-
RTU5024, rtu5024
-
Model Number:
-
2G/4G
-
Operating Temperature:
-
-20℃~60℃
-
Product Name:
-
GSM Gate Opener
-
Warranty:
-
1 Year
-
Design Style:
-
Modern
-
Rated voltage:
-
12VDC1A
-
Storage temperature:
-
-20℃~60℃
-
Operating frequency:
-
full frequency
-
Net weight:
-
0.20 kg
-
After-sale Service:
-
Online technical support
-
Application:
-
Garage Door

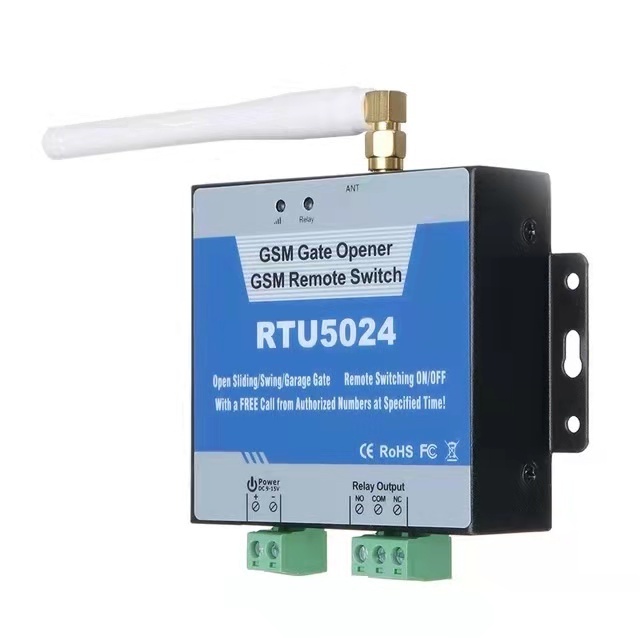

The RTU5024 is an powerful remote relay controller, it is a very simple device which can be used for authorized door access,
controlling gates,switching of remote equipments, car parking systems. Actually the RTU5024 can be used in places which require to
turn ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone.
Just dial from Authorized User number at the specified time then the Barrier and doors are opened, or the machine are turn on or
off by the RTU5024.
There are no call costs, the RTU5024 rejects the call from authorized number then carries out the turn ON/OFF action.
Moreover, the user can be authorized at the specified time to operate it, after timeout, will automatically change to
unauthorized type.
Specifications
GSM FrequencyQuad-band 850/900/1800/1900MHzDigital OutputNC/NO dry contact, 3A/240VACDC Power supply9~24VDC/2APower consumption12V
input Max. 50mA/Average 25mASIM CardSupport 3V SIM CardAntenna50Ω SMA Antenna interfaceTemperature range-20°C~+60 °CHumidity range
Relative humidity 90%Exterior dimensionW102mm*D76mm*H27mmNet Weight180 g
controlling gates,switching of remote equipments, car parking systems. Actually the RTU5024 can be used in places which require to
turn ON/OFF your system, machines, equipments remotely with a FREE call from your mobile phone.
Just dial from Authorized User number at the specified time then the Barrier and doors are opened, or the machine are turn on or
off by the RTU5024.
There are no call costs, the RTU5024 rejects the call from authorized number then carries out the turn ON/OFF action.
Moreover, the user can be authorized at the specified time to operate it, after timeout, will automatically change to
unauthorized type.
Specifications
GSM FrequencyQuad-band 850/900/1800/1900MHzDigital OutputNC/NO dry contact, 3A/240VACDC Power supply9~24VDC/2APower consumption12V
input Max. 50mA/Average 25mASIM CardSupport 3V SIM CardAntenna50Ω SMA Antenna interfaceTemperature range-20°C~+60 °CHumidity range
Relative humidity 90%Exterior dimensionW102mm*D76mm*H27mmNet Weight180 g
Product Description
Product feature description
Gsm Gate Door Opener Wireless Remote Switch
Gsm Gate Door Opener Wireless Remote Switch
Specification
|
Product Name
|
GSM Gate Opener
|
|
Rated voltage
|
12VDC1A
|
|
Operating temperature
|
-10℃~60℃
|
|
Storage temperature
|
-20℃~60℃
|
|
Relative humidity
|
10-90%, no condensation
|
|
Operating frequency
|
full frequency
|
|
Relevant voltage of output relay
|
20A 125VAC/20A 14VDC
|
|
Net weight
|
0.20 kg
|
