UTG21-BE for non-contact, not in direct contact with liquid, low failure rate. All input and output lines of the instrument must have lightning protection, anti-short circuit protection.
The instrument contains a number of patented technologies, with a safe, clean, high precision, long life, stable and reliable, easy installation and maintenance features, suitable for acid, alkali, salt, corrosion, explosion, high temperature and other fields.
The instrument can be connected to the display table or various DCS systems via 4 ~ 20mA or RS485 (Modbus protocol or other customized protocols) to provide real-time liquid level data for industrial automation.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
UTG21-BE
-
Power supply:
-
four-wire DC24V 120mA
-
Accuracy:
-
0.3%
-
Range:
-
0~15m
-
Blind area:
-
0 ~ 20m
-
Protection grade:
-
IP67
-
Ranging accuracy:
-
0.3%
-
Pressure:
-
Less than four atmospheric pressure
-
Application:
-
level measurement
-
Ranging resolution:
-
1mm
-
Display:
-
Color LCD
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
18 months
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
OEM
-
Model Number:
-
UTG21-BE
-
Power supply:
-
four-wire DC24V 120mA
-
Accuracy:
-
0.3%
-
Range:
-
0~15m
-
Blind area:
-
0 ~ 20m
-
Protection grade:
-
IP67
-
Ranging accuracy:
-
0.3%
-
Pressure:
-
Less than four atmospheric pressure
-
Application:
-
level measurement
-
Ranging resolution:
-
1mm
-
Display:
-
Color LCD

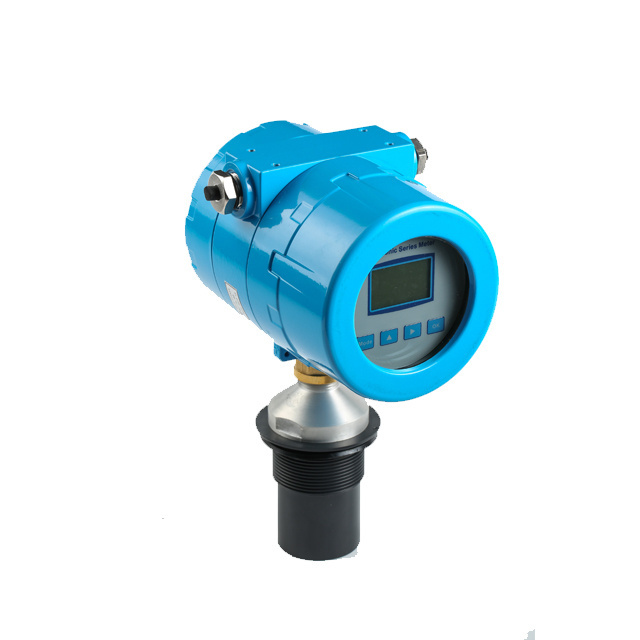

UTG21-BE Explosion proof ultrasonic level meter
Function of UTG21-BE ultrasonic level meter
(A) The use of die-cast aluminum waterproof, explosion-proof shell, explosion-proof grade Ex d (ia) Ⅱ BT4.
(B) Circuit design Since the power supply section on the choice of high-quality power modules, components, choose high-reliability imported devices, can replace the same type of imported instruments.
(C) Patented sonic intelligence technology software for intelligent echo analysis, without any debugging and other special steps, this technology has a dynamic thinking, dynamic analysis capabilities.
(D) The sonic intelligent patented technology owned by our company greatly improves the precision of the instrument, and the liquid level accuracy reaches 0.3%, which can resist various interference waves.
(E) The instrument is a non-contact instrument, not in direct contact with the liquid, so the failure rate is low. Meter provides a variety of installation methods, the user can calibrate the instrument through this manual.
(F) Instrument all input and output lines have lightning protection, short-circuit protection
Model
|
UTG21-BE ultrasonic level meter
|
Range
|
0~20m
|
Blind area
|
0.2m~0.8m
|
Accuracy
|
0.3%
|
Pressure
|
Less than four atmospheric pressure
|
Display
|
LCD display built-level height or distance
|
Digital output
|
RS485 Interface, ModBUS agreement or customize
|
Analog Output
|
4-20mA
|
Supply voltage
|
four-wire DC24V 120mA
|
Protection grade
|
IP67
|
Proof-explosion grade
|
EX dll BT4
|
Installation
|
Flange
|
Shell material
|
Aluminum Die Casting,proof-explosion shell
|
Ambient temperature
|
-20℃~+60℃
|
UTG21-PY ultrasonic level meter
UTG21-H High Accuracy level meter
Explosion Proof levle meter
Trade terms
1. 18 Month's Warranty.
2. Delivery time:3-7 working days after payments received
3. MOQ:1 set.
4. Service express company:TNT/DHL/FedEX.
5. We accept T/T, Western Union, PayPal & Secure Payment.
