Quick Details
-
Brand Name:
-
Hi-Net/Neutral/OEM
-
Model Number:
-
S5054R-EI-48P-900W
-
Place of Origin:
-
Guangdong, China
-
Model:
-
Lay3 managed 48 port gigabit PoE+ network switch
-
Warranty:
-
2 year
-
Lead time:
-
35 days
-
Color:
-
Black and grey selectable
-
PoE port:
-
48x1G rj45 +6x10G sfp ports
-
Weight:
-
<3.5KG
-
Interface type:
-
10G SFP port
-
Dimensions (W x D x H):
-
440*200*44mm
-
Package:
-
1piece in one yellow box
-
Certificate:
-
CE,FCC,ROHS
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
216G
-
Brand Name:
-
Hi-Net/Neutral/OEM
-
Model Number:
-
S5054R-EI-48P-900W
-
Place of Origin:
-
Guangdong, China
-
Model:
-
Lay3 managed 48 port gigabit PoE+ network switch
-
Warranty:
-
2 year
-
Lead time:
-
35 days
-
Color:
-
Black and grey selectable
-
PoE port:
-
48x1G rj45 +6x10G sfp ports
-
Weight:
-
<3.5KG
-
Interface type:
-
10G SFP port
-
Dimensions (W x D x H):
-
440*200*44mm
-
Package:
-
1piece in one yellow box
-
Certificate:
-
CE,FCC,ROHS

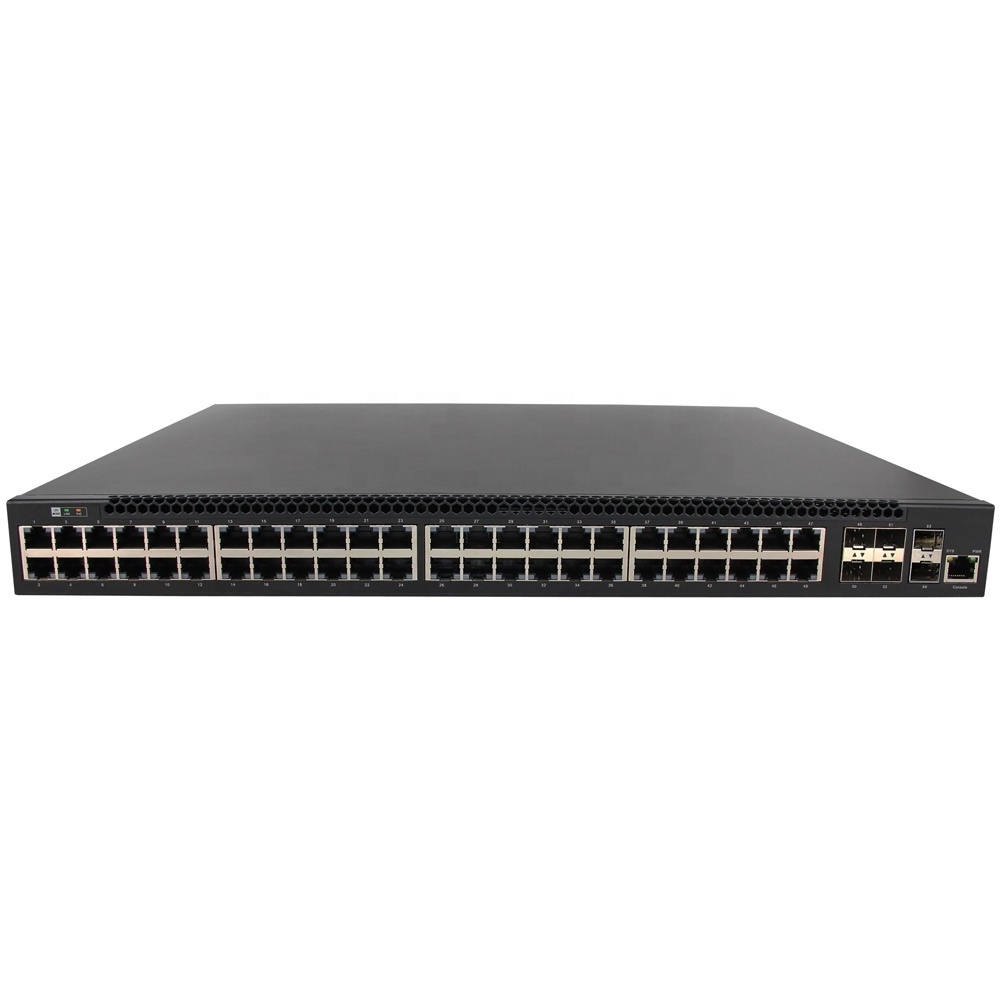

Layer3 managed 48 port gigabit PoE+ network switch
The S5054 is a new generation Ethernet intelligent access switch. It is mainly deployed on the IP MAN and intranets, meeting requirements the requirements of carrying various Ethernet services and accessing the Ethernet. It also provide the PoE function for powering of wireless LAN (WLAN) access points, IP security cameras, VoIP telephone and other low port density installations.
The S5054 is a case-shaped device with a chassis of 1U high. It provides 48 10/100/1000Base-TX ports + 6 10G SFP+ ports. It provides 48 PoE Injector.
Features
*IEEE802.
3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z,IEEE802.3af, IEEE802.3at.
* Provides 4810/100/1000 Base-TX ports + 6 10G SFP+ ports
* Provides 48PoE injector
* Build-in power supplies, 960W
* High back-plane bandwidth 216Gbps
* SupportMLD Snooping
* Support standard IP/ Extend IP / MAC IP / ARP ACL
* Support IGMP snooping for Multi-media application
* Support Port mirror and bandwidth control
* Support IEEE802.3x Flow control
* Support Port Based VLAN / 802.1Q Tag VLAN
* Support IEEE802.3ad Port trunk with LACP
* Support Spanning tree protocol IEEE802.1d/802.1w/802.1s
* Support IEEE 802.1p class of service
* Support IEEE 802.1x user authentication
* Support Broadcast storm filter
* Support DHCP client, DHCP relay, DHCP server, DHCP snooping
* Support Static Route, Policy Route, RIP, OSPF, VRRP
* Support System event log
* Support command line interface management
* Management by Web/ SNMP / SSH / Telnet / Console
