Quick Details
-
Surface Roughness(μm):
-
0.63 μm
-
Table Size(mm):
-
1000x320
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUZHONG
-
Dimension(L*W*H):
-
3800*2900*3100
-
Weight (KG):
-
9000
-
Power (kW):
-
20
-
Product name:
-

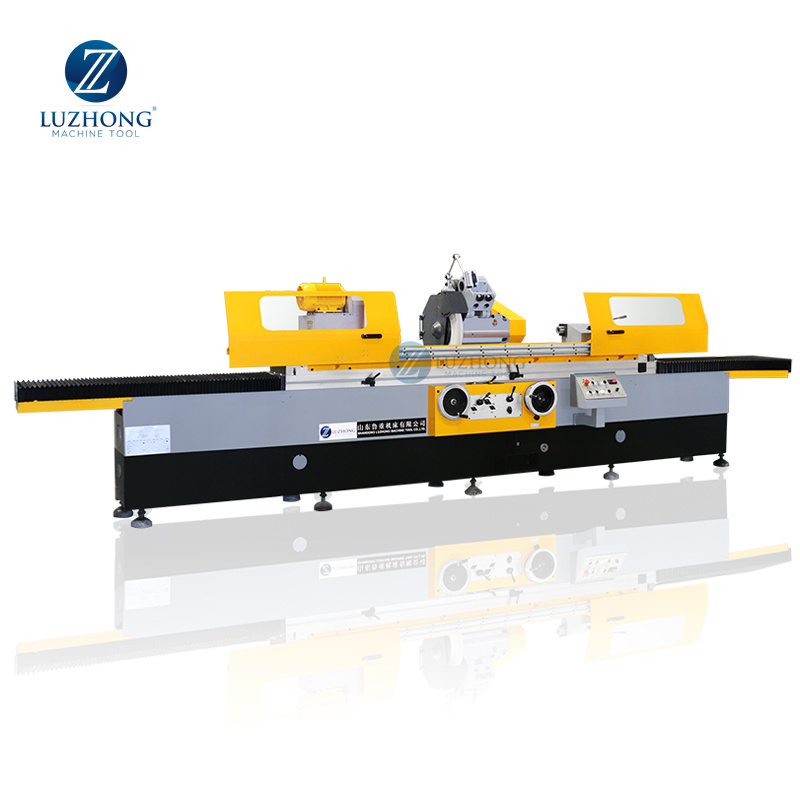

universal cylindrical grinder M1432 precision internal grinder machine
-
Size of work table(L * W ):
-
1250*800
-
Max. Longitudinal movement of worktable:
-
1350mm
-
Max. Cross movement of grinding herd:
-
850mm
-
Max. Vertical movement of grinding head:
-
800mm
-
Abrasive wheel dim (L * D * W):
-
450*127*50
-
Speed of grinding wheel:
-
1440r/min
-
Total power of motor:
-
20kw
Quick Details
-
Grinding Length(mm):
-
850
-
Table Travel (X) (mm):
-
1350
-
Table Travel (Y) (mm):
-
850
-
Surface Roughness(μm):
-
0.63 μm
-
Table Size(mm):
-
1000x320
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUZHONG
-
Dimension(L*W*H):
-
3800*2900*3100
-
Weight (KG):
-
9000
-
Power (kW):
-
20
-
Product name:
-
universal cylindrical grinder M1432 precision internal grinder machine
-
Size of work table(L * W ):
-
1250*800
-
Max. Longitudinal movement of worktable:
-
1350mm
-
Max. Cross movement of grinding herd:
-
850mm
-
Max. Vertical movement of grinding head:
-
800mm
-
Abrasive wheel dim (L * D * W):
-
450*127*50
-
Speed of grinding wheel:
-
1440r/min
-
Total power of motor:
-
20kw
Product Description
Specification
|
Specifications
|
Units
|
M1432B
|
|
Distance between centers
|
mm
|
1000/1500/ 2000/3000
|
|
Center height
|
mm
|
180
|
|
Dia. Ground(O.D)
|
mm
|
8-320
|
|
Dia. Ground(I.D)
|
mm
|
30-100
|
|
Max. length ground(O.D)
|
mm
|
1000/1500/2000/3000
|
|
Max. length ground(I.D)
|
mm
|
125
|
|
Max. weight of work piece
|
kg
|
150
|
|
Work head swiveling angle
|
°
|
+90°
|
|
Work head Center taper
|
MT
|
4
|
|
Work head Spindle speed
|
r/min
|
50HZ:25〜220 Stepless
|
|
Wheel head spindle speed
|
r/min
|
1670
|
|
Work head rapid travel
|
mm
|
50
|
|
Work head max. travel
|
mm
|
246
|
|
Work head swiveling angle
|
°
|
-30°
|
|
Work head hand feed per rev
|
mm/rev
|
rough：2
precision：0.5
|
|
Work head hand feed per gra
|
mm/gra
|
rough：0.01
precision：0.0025
|
|
Wheel size (ODxWxID)
|
mm
|
400 * 50 * 203(1000/1500)、500*50*203(2000/3000)
|
|
Peripheral velocity
|
m/s
|
35
|
|
Internal Grinding Spindle speed
|
r/min
|
10000/15000
|
|
Internal Grinding Wheel size (OD*W*ID)
|
mm
|
Max.:50*25*13
Min.:17*20*6
|
|
Table hand feed per rev
|
mm/rev
|
6
|
|
Max. swiveling angle of table (Clockwise)
|
°
|
3°
|
|
Max. swiveling angle of table (Anticlockwise °)
|
°
|
7° (1000)
6° (1500)
5° (2000)
3° (3000)
|
|
Longitudinal speed range of table
|
m/min
|
0.1-4
|
|
Tailstock Center taper
|
MT
|
4
|
|
Tailstock Quill travel
|
mm
|
30
|
|
Wheel head motor power
|
kw
|
5.5 (1000/1500)
7.5 (2000/3000)
|
|
Internal grinding motor power
|
kw
|
1.1
|
|
Workhead motor power
|
kw
|
1.5
|
|
Machine weight
|
kg
|
5300 (1000)
6100 (1500)
7900 (2000)
9900 (3000)
|
|
Overall dimension(L * W * H)
|
mm
|
3260*2000*2050 (1000)
4260*2000*2050 (1500)
5400*2000*2050 (2000)
7390*2000*2050 (3000)
|
