Quick Details
-
Theoretical Shot Volume(cm³):
-
73 cm³
-
Injection Rate (g/s):
-
71 g/s
-
Injection Weight (g):
-
36 g
-
Screw Speed (rpm):
-
0 - 175 rpm
-
Screw diameter (mm):
-
28 mm
-
Distance between Tie Bars:
-
370*200mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
HM-AUTO
-
Brand Name:
-
HOMMAR
-
Power (kW):
-
6.5 kW
-
Product name:
-
Hang Tag Stringing Machine
-
After-sales Service Provided:
-
Garments Hang Tag Printing Machine
-
Keyword:
-
Small plastic injection molding machine
-
Function:
-
Multifunctional Plastic Products Making
-
After Warranty Service:
-
2Year
-
Application:
-
Used to make hanging granules
-
Motor:
-
Save power by 30%
-
PLC:
-
High Precise Control,High sensitive response
-
themocouple for tempareture:
-
More sensitive and long span life
-
Hydraulic Value:
-
Long span life
Quick Details
-
Mold Height(mm):
-
60 - 100 mm
-
Ejector Stroke(mm):
-
70 mm
-
Ejector Force(kN):
-
17.2 kN
-
Theoretical Shot Volume(cm³):
-
73 cm³
-
Injection Rate (g/s):
-
71 g/s
-
Injection Weight (g):
-
36 g
-
Screw Speed (rpm):
-
0 - 175 rpm
-
Screw diameter (mm):
-
28 mm
-
Distance between Tie Bars:
-
370*200mm
-
Weight (KG):
-
1100 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
HM-AUTO
-
Brand Name:
-
HOMMAR
-
Power (kW):
-
6.5 kW
-
Product name:
-
Hang Tag Stringing Machine
-
After-sales Service Provided:
-
Garments Hang Tag Printing Machine
-
Keyword:
-
Small plastic injection molding machine
-
Function:
-
Multifunctional Plastic Products Making
-
After Warranty Service:
-
2Year
-
Application:
-
Used to make hanging granules
-
Motor:
-
Save power by 30%
-
PLC:
-
High Precise Control,High sensitive response
-
themocouple for tempareture:
-
More sensitive and long span life
-
Hydraulic Value:
-
Long span life
Products Description

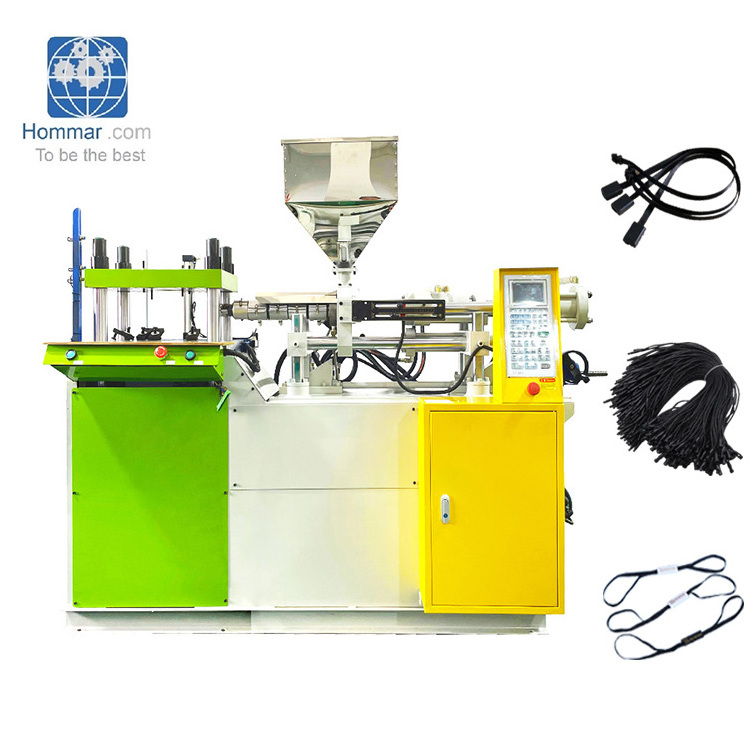

35T Manufacturing Vertical Horizontal Small Hang Seal Tag String Injection Molding Machine Making Machine
* We can provide one-stop molding service. We can provide injection molding machine, robot, mold,cord/thread, hot foil, plastic raw materia.
|
Clamping Force
|
35T
|
|
Plastic Type
|
Thermoplastic
|
|
Machine Type
|
Vertical Plastic Injection Molding Machine
|
|
Screw Diameter
|
32mm
|
|
Screw Stroke
|
110mm
|
|
Machine Dimesions
|
850mm*1800mm*800mm
|
Injection molding machine:
1.This machine's platen is bigger and it can support bigger mold.The logo mold can reach to 210mm wideth.
2.This machine is equipped with better components and materials. Its life span is longer.
3.This machine is equipped with tiebar and it works better.
4.This machine is CE certificated and is more popular in EU and Americas, specially in Turkey and Brazil.
4.This machine is CE certificated and is more popular in EU and Americas, specially in Turkey and Brazil.
Robot:
1. Our machine are original designed and original developed,better design details on the machine.
2.Our machine is optimized every year. So far , the machine is the 7th generation. The competitors' was copied from our the 2nd generation one.Theirs are still same.
3.All materials are better than competitors'. For example, servo motor, steel, powder coating, clip, cylinder etc.
3.All materials are better than competitors'. For example, servo motor, steel, powder coating, clip, cylinder etc.
|
PLC
|
|
|
Electronic parts
|
|
|||
|
Brand: Porcheson
|
|
|
Brand: TECO/Porcheson
|
|
|||
|
Original: TAIWAN, CHINA
|
|
|
Original: CHINA, TAIWAN CHINA
|
|
|||
|
Features: High Precise Control,High sensitive response ,TFT Color display, Language: Portugal, English, Chinese
|
|
|
Features: Stable High sensitive
|
|
|||
Specification
|
|
Mold
|
Unit
|
HM-V35T-B
|
|
|
注射装置
Injection Unit
|
Screw Diameter
|
mm
|
32
|
|
|
|
Screw Stroke
|
mm
|
110
|
|
|
|
Theoretical Shot Volume
|
cm³
|
77
|
|
|
|
Injection Molding Quality
|
g
|
71
|
|
|
|
oz
|
2.2-2.5
|
|
|
|
|
Injection Rate
|
cm³/s
|
71
|
|
|
|
Screw Speed
|
r.p.m
|
0-240
|
|
|
合模装置
Mold Clamping Unit
|
Clamping Force
|
tf
|
35
|
|
|
|
Clamping Stork
|
mm
|
200
|
|
|
|
Max.Size of Mold
|
mm
|
300*250
|
|
|
|
Plate Size
|
mm
|
380*350
|
|
|
|
Distance of Product Out of Mold
|
mm
|
100
|
|
|
|
Ejector Force
|
tf
|
2.2
|
|
|
|
QTY of Ejector
|
pcs
|
1
|
|
|
其他
General
|
System Pressure
|
Mpa(kgf/cm²)
|
13.7(140)
|
|
|
|
Motor Power
|
kw(HP)
|
5.5(7.5)
|
|
|
|
Electric Power
|
kw
|
3.6
|
|
|
|
Temperature Stage
|
|
2+1
|
|
|
|
Mechanine Dimesions
|
mm
|
850*1800*800
|
|
|
|
Machine Weight
|
tf
|
1.1
|
|
Performance&Features
GENERALPERFORMANCE
1.Fixed lower platen and movable upper platen. Suitable for insert molding.
2.Nitrided steel screw and barrel,high-torque hydraulic motor-driven,multi-stage injection pressure,excellent plasticizing performance.
3.
Vertical hydraulic clamping system with two cylinders,high-speed and low-pressure mold closing,multi-stage pressure control, longer mold life and more safety.
4.
Protective devices of electrical components to avoid malfunction and maintain personal safety.
5.Movable injection carriage for easy replacement of material and mold.
STANDARD FEATURES
1.Screw cold start protection.
2.Emergency stop safety switch.
3.PID proportional temperature control.
4.Automatic fault display and shutdown.
5.Double-way safety starting switch.
6.High-speed low-pressure safety clamping device.
6.High-speed low-pressure safety clamping device.
