Quick Details
-
Structure:
-
Angle
-
Warranty:
-
1 years
-
Place of Origin:
-
China, Made In China
-
Brand Name:
-
COMPASS & XUSHENG
-
Model Number:
-
CP-ASV002
-
Port Size:
-
DN10-DN80
-
Standard:
-
SMS, DIN
-
Material Contact Parts:
-
SS304(1.4301)-CF8/SS316 (1.4401)-CF8M
-
Material Non-contact Parts:
-
SS304(1.4301)-CF8
-
Size:
-
DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80
-
Actuator Size:
-
27mm,32mm,40mm,50mm,63mm,90mm,80mm,100mm,125mm
-
Connection:
-
Butt weld,Tri clamp, Female Thread, Flange
-
Seal Material:
-
PTFE
-
Cylinder:
-
Double Acting, Single Acting
-
Drive Option:
-
Manual, Pneumatic Control
-
Fluid Max. Pressure:
-
1.6bar (232psi)
Quick Details
-
Type:
-
Angle Seat Valve
-
Application:
-
General
-
Power:
-
Pneumatic
-
Structure:
-
Angle
-
Warranty:
-
1 years
-
Place of Origin:
-
China, Made In China
-
Brand Name:
-
COMPASS & XUSHENG
-
Model Number:
-
CP-ASV002
-
Port Size:
-
DN10-DN80
-
Standard:
-
SMS, DIN
-
Material Contact Parts:
-
SS304(1.4301)-CF8/SS316 (1.4401)-CF8M
-
Material Non-contact Parts:
-
SS304(1.4301)-CF8
-
Size:
-
DN10, DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80
-
Actuator Size:
-
27mm,32mm,40mm,50mm,63mm,90mm,80mm,100mm,125mm
-
Connection:
-
Butt weld,Tri clamp, Female Thread, Flange
-
Seal Material:
-
PTFE
-
Cylinder:
-
Double Acting, Single Acting
-
Drive Option:
-
Manual, Pneumatic Control
-
Fluid Max. Pressure:
-
1.6bar (232psi)
Product Description

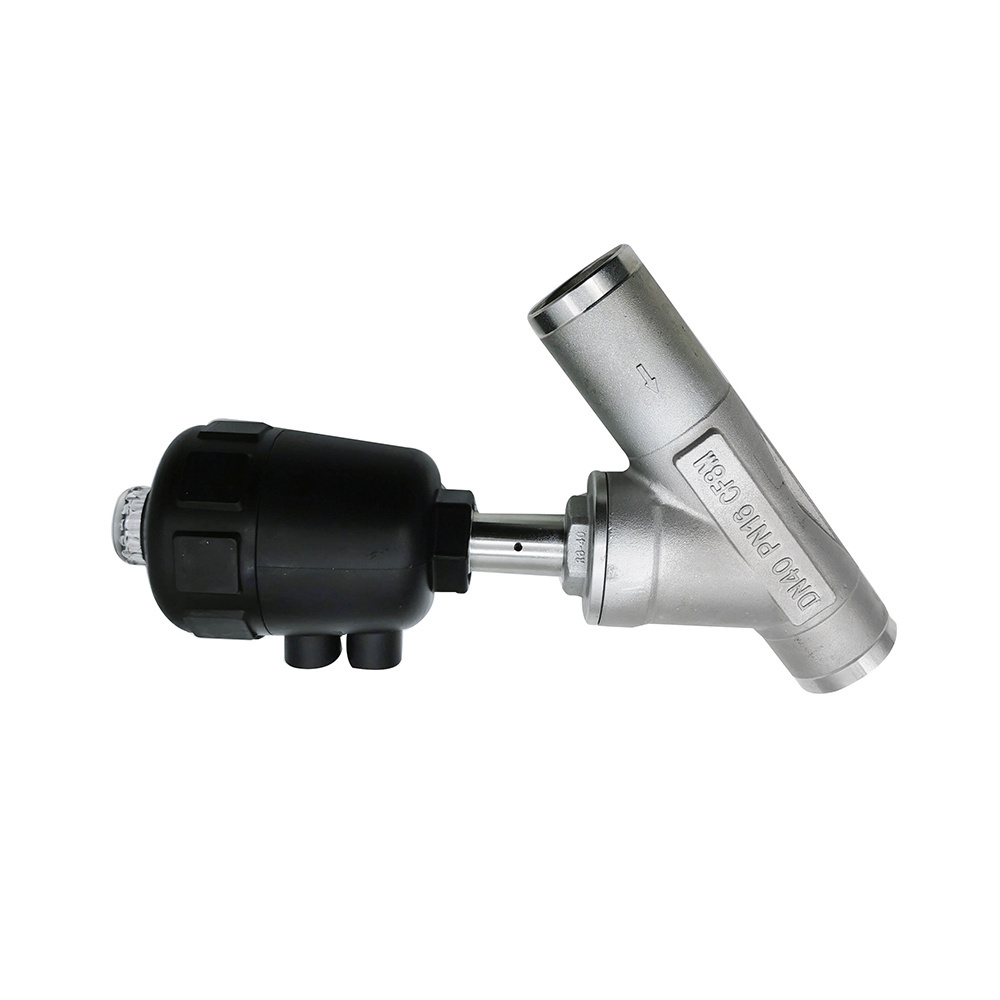

The pneumatic angle seat valve can save space by maintaining the flow rate. It uses a single acting pneumatic actuator with spring safety protection to operate the guide angle seat valve. When using it, it should choose to be normally open or normally closed. It is widely used in automation industry control fluid, foodstuff dairy industry, domestic water, common pipeline fluid medium and so on
Pneumatic angle seat valves are widely used for short and frequent starts, with the characteristics of sensitive response and accurate action. When used in conjunction with electromagnetic valves, pneumatic control can accurately control the flow of gas and liquid. It can achieve accurate temperature control and liquid dripping requirements. The damp heat sterilization cabinet should use corner seat valves to control the amount of steam and accurately control the temperature.
Specification
|
Standard
|
SMS, DIN
|
|
|
|
Material Contact Parts
|
SS304(1.4301)-CF8，SS316 (1.4401)-CF8M
|
|
|
|
Material Non-contact Parts
|
SS304(1.4301)-CF8
|
|
|
|
Size
|
DN10-DN80
|
|
|
|
Actuator Size
|
27mm,32mm,40mm,50mm,63mm,90mm,80mm,100mm,125mm
|
|
|
|
Connection
|
Butt-weld,Tri-clamp, Female Thread(BSP.BSPT,NPT), Flange
|
|
|
|
Seal Material
|
PTFE, the material comply with FDA21CFR117.2600
|
|
|
|
Cylinder
|
Double Acting, Single Acting
|
|
|
|
Drive Option
|
Manual, Pneumatic Control,Position Sensor, C-top Controller, C-top Controller (AS-I)
|
|
|
|
Fluid Max. Pressure
|
1.6bar (232psi)
|
|
|
|
Control Pressure
|
0.3-0.8bar (43.5-116psi)
|
|
|
|
Fluid temperature
|
14 ~ 428°F (-10ºC~+220 ºC)
|
|
|
|
Ambient temperature
|
14 ~ 176°F (-10ºC~+80ºC)
|
|
|
|
Surface Treatment
|
Sandblasting, Polishing, Electrolysis
|
|
|
|
Control Type
|
Normally closed,Normally open
|
|
|
|
Control Fluid:
|
Neutral gas, Air
|
|
|
|
Applicable Fluid
|
Water,Alcohol,Oil,Dye,Steam,Neutral gas or liquid,Organic solvent,Acid and lye
|
|
|
Working principle
In non working conditions, due to spring force, the valve is usually closed (open). When the actuator piston is compressed by gas, the valve opens (closes). The double acting form relies on compressed gas to control the valve switch
Single acting ( the pneumatic head usually a hole); working principle: to reach the open and close function according to spring reset, normally it divide into open and close.
Double acting ( the pneumatic head usually two holes); working principle: give the air to control switch. (it can choose double function and spring-return, control precisely according to customer’s requirement.)
Options
1.The available materials are SS316 (1.4401) CF8M and SS304(1.4301) CF8
2. The available sizes are from DN10 to DN80
3. Connection can be Butt-weld,Tri-clamp, Female Thread(BSP.BSPT,NPT), Flange
4. Actuator Size has 27mm,32mm,40mm,50mm,63mm,90mm,80mm,100mm,125mm
5.Cylinder includes of Double Acting and Single Acting
6.Drive Option can be Manual, Pneumatic Control,Position Sensor, C-top Controller, C-top Controller (AS-I)
7.Control Type has Normally closed,Normally open
Material
Valve body material: Stainless Steel
Sealing material: PTFE
Executive housing: Polyamide, Stainless Steel
Technical Specifications
Fluid Max. Pressure: 1.6bar (232psi)
Control Pressure: 0.3-0.8bar (43.5-116psi)
Temperature range
Fluid temperature : 14 ~ 428°F (-10ºC~+220 ºC)
Ambient temperature: 14 ~ 176°F (-10ºC~+80ºC)
