Quick Details
-
Warranty:
-
10YEARS
-
Brand Name:
-
OEM
-
Model Number:
-
SN-M020
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
541*345*25mm or customized
-
Solar cell:
-
Monocrystalline/Polycrystalline
-
Thickness of glass:
-
3.2mm tempered glass
-
Vmp:
-
12V/18V/24V or others
-
Frame:
-
Anodized Aluminium Alloy or frameless as request
-
Cable lenght:
-
1M/2M customized
-
Color:
-
white/ black
-
Certificate:
-
CE, LVD, ISO, TUV
-
Connector:
-
DC line/ solar connector/ Alligator clip/SAE/Mate/female connector ect
-
Logo:
-
custom logo
-
Product name:
-
mono solar panel
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, IBC, BIPV
-
Panel Efficiency:
-
20%
-
Warranty:
-
10YEARS
-
Brand Name:
-
OEM
-
Model Number:
-
SN-M020
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
541*345*25mm or customized
-
Solar cell:
-
Monocrystalline/Polycrystalline
-
Thickness of glass:
-
3.2mm tempered glass
-
Vmp:
-
12V/18V/24V or others
-
Frame:
-
Anodized Aluminium Alloy or frameless as request
-
Cable lenght:
-
1M/2M customized
-
Color:
-
white/ black
-
Certificate:
-
CE, LVD, ISO, TUV
-
Connector:
-
DC line/ solar connector/ Alligator clip/SAE/Mate/female connector ect
-
Logo:
-
custom logo
-
Product name:
-
mono solar panel
A Grade Monocrystalline silicon Mini Solar Panel cell 5w 10w 20w 30w 40w 50w 60w 100w 150w 12v PV Small Mono Solar Panel Factory
The size, wattage,voltage, connectors can be customized.

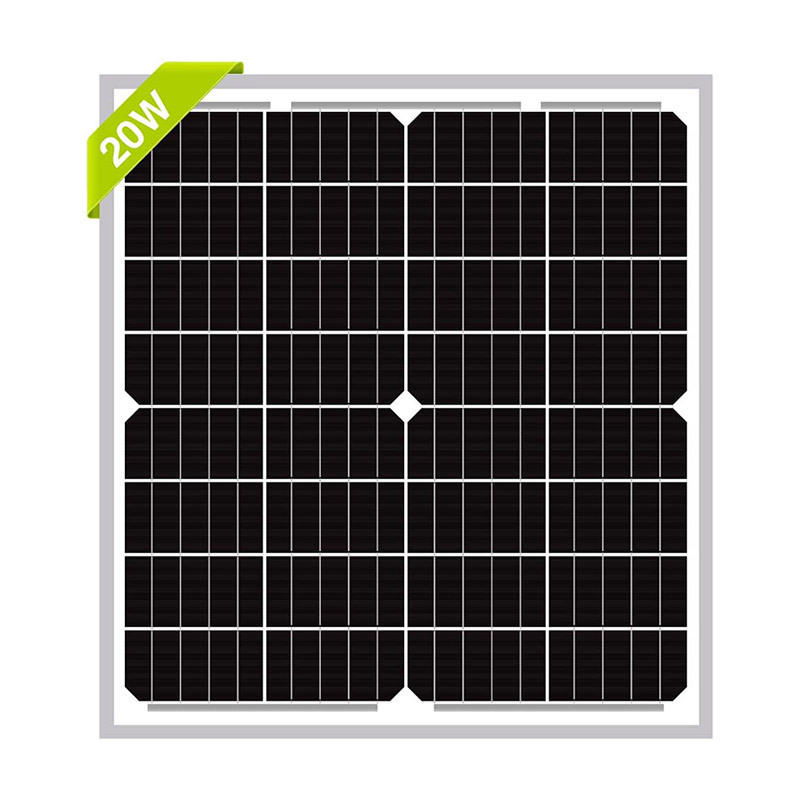

About this 20W solar panel
* 【New Design】 Using 166mm solar cell has higher cell efficiency. It also has a better and longer lifespan.
* 【Product Dimensions】Product Dimensions: 15.35x14.17x0.91 in (390 x 360 x 23mm)
* 【Maximum Power】20W, voltage at Pmax (Vmp):18.53V, current at Pmax (Imp): 1.27A
* 【Easy Installation】Pre-attached 3ft bare ends wire, pre-drilled mounting holes on the frame allow for easy and quick install.
* 【Warranty】12-year limited material and workmanship warranty. 10-year 90% output warranty. 25-year 80% output warranty.
* 【New Design】 Using 166mm solar cell has higher cell efficiency. It also has a better and longer lifespan.
* 【Product Dimensions】Product Dimensions: 15.35x14.17x0.91 in (390 x 360 x 23mm)
* 【Maximum Power】20W, voltage at Pmax (Vmp):18.53V, current at Pmax (Imp): 1.27A
* 【Easy Installation】Pre-attached 3ft bare ends wire, pre-drilled mounting holes on the frame allow for easy and quick install.
* 【Warranty】12-year limited material and workmanship warranty. 10-year 90% output warranty. 25-year 80% output warranty.
Below are our hot selling small solar panel, i
f you need different sizes, you can also contact us for customization！
|
Model
|
Pmax(watt)
|
Vmp(V)
|
Imp(A)
|
Dimension(mm)
|
|
SN-M10
|
10W
|
18V
|
0.56A
|
345*225*18mm or customize
|
|
SN-M20
|
20W
|
18V
|
1.11A
|
400*345*25mm or customize
|
|
SN-M30
|
30W
|
18V
|
1.66A
|
530*345*25mm or customize
|
|
SN-M40
|
40W
|
18V
|
2.22A
|
680*345*25mm or customize
|
|
SN-M50
|
50W
|
18V
|
2.78A
|
530*510*25mm or customize
|
|
SN-M60
|
60W
|
18V
|
3.33A
|
680*510*30mm or customize
|
|
SN-M80
|
80W
|
18V
|
4.44A
|
680*630*30mm or customize
|
|
SN-M100
|
100W
|
18V
|
5.56A
|
780*680*30mm or customize
|
|
SN-M120
|
120W
|
18V
|
6.67A
|
910*680*30mm or customize
|
|
SN-M150
|
150W
|
18V
|
8.33A
|
1135*680*30mm or customize
|
Questions from our clients:
1. Can you supply sample for testing?
・ TUV, CE, RoHS, LVD, ISO
3. Do you support OEM?
・ Yes, we can put your brand on the product.
4. How long you can ship goods after payment?
・Sample 1 week
・
Yes, but if it is for personal use, then we recommend customers to buy locally because shipping is not cost-effective.
2. What certificate do you have?
2. What certificate do you have?
・ TUV, CE, RoHS, LVD, ISO
3. Do you support OEM?
・ Yes, we can put your brand on the product.
4. How long you can ship goods after payment?
・Sample 1 week
・Bulk order 25 days
