- 1.Steel wire tray
- 2.Spring axostyle
- 3. Spring
- 4. Mounting plate
- 5. Motor
- 6. Chain
- 7. Control box
- 8. Air Wave Switch(Optional)
- 9. Photocell(Optional)
- 10. loop Detector(Op
- Product Details
- {{item.text}}

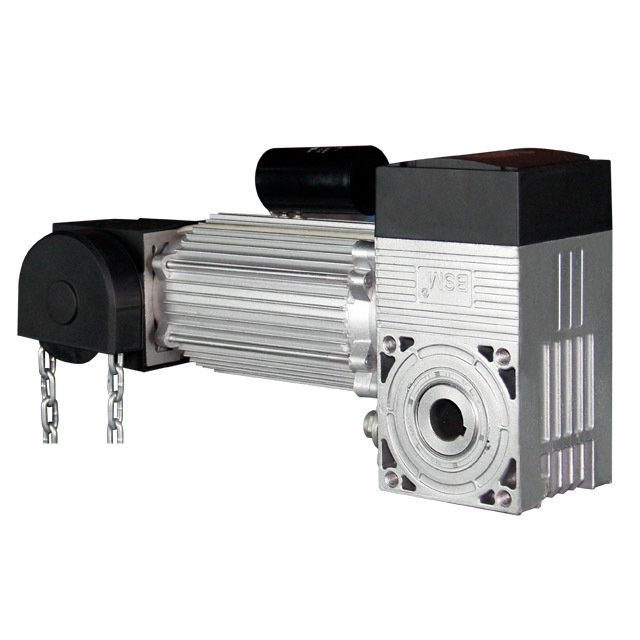

Quick Details
-
Application:
-
Mall
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
OEM ODM
-
Model Number:
-
KGT6
-
Model:
-
BS-KGT6.50-Z/M
-
Power supply of Industrial Door Motor:
-
220V 50Hz / 380V 50HZ
-
Motor Power:
-
370w / 450w
-
Thermal Protection:
-
130℃
-
Lift Height:
-
≤6M
-
Environment Temperature:
-
-20℃~+50℃
-
Protection Class:
-
IP55
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
graphic design, NONE
-
Application:
-
Mall
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
OEM ODM
-
Model Number:
-
KGT6
-
Model:
-
BS-KGT6.50-Z/M
-
Power supply of Industrial Door Motor:
-
220V 50Hz / 380V 50HZ
-
Motor Power:
-
370w / 450w
-
Thermal Protection:
-
130℃
-
Lift Height:
-
≤6M
-
Environment Temperature:
-
-20℃~+50℃
-
Protection Class:
-
IP55
Technical Specifications
Features
1. Emergency string when motor don't work or for emergency.
2. Convenient manual operation in case of power failure.
3. 380V input power three phrase motor is available
4. Many optional output terminals for external receiver, time protection, alarm, airwave switch, or photocell.
2. Convenient manual operation in case of power failure.
3. 380V input power three phrase motor is available
4. Many optional output terminals for external receiver, time protection, alarm, airwave switch, or photocell.
Control BOX
BS-C13
Power supply:AC220V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz
BS-C06
Power supply:AC380V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz
BS-C31
Power supply:AC220V 50Hz
Max. consumpation:10W
Accessories power supply :AC24V 0.4A max
Operating temperature range: -20℃~+50℃
Frequency:433MHz
Accessories
Trouble shooting
|
Number
|
Trouble
|
Possible cause
|
Troubles shooting
|
|
1
|
Motor can’t turn on
|
1. No power supply
2. Fuse is broken 3. Capacity is broken down 4. Overload protect 5. Overheating protect 6. Micro switch is inoperative |
1. Check power supply
2. Change fuse 3. Change capacitor 4. Check if any barrier on the rack 5. Restart after 20 minutes 6. Pull the hand chain |
|
2
|
Open( close) but can’t close ( open)
|
Whether L1\com\L2 wires are connected wrong
|
Connect correctly according to wiring diagram
|
|
3
|
Cannot limit position
|
Limit switch is damaged
|
Change the limit switch
|
|
4
|
Release device cannot work
|
1. The gears are jammed
2. The spring in gear reducer is damaged |
1. Turn the gear double direction
2. Change a new spring |
|
5
|
Push “open” but the door is down
|
Whether L1\L2 wires are connect wrong
|
Connect according to wiring diagram
|
|
6
|
Motor can turn but operator not work
|
1.Spring in gear reducer
2. Whether gears are released |
1. Change or adjust stress of spring
2. Check the position of handle |
