Egg tray making machine is a kind of environmental protection equipment. It can make egg box, paper egg The pulp paper egg tray machine is controlled by PLC, the degree of the automation is high, and it is easy to learn, service is convenient. Also the scope of the machine is widely. It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding cup, industrial production packing.
Four main parts: Paper Pulping system, Forming system, Drying line, Packing system.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
275kw
-
Weight:
-
3000 kg
-
Production capacity:
-
6000pcs/h
-
Water consumption:
-
640kg/h
-
Electity consumption:
-
120kw/h
-
Natural gas consumption:
-
90m³/h
-
Diesel oil consumption:
-
90L/h
-
Total power:
-
275kw
-
Raw material:
-
250kg/h
-
Number of operator per shift:
-
6 people
-
Certification:
-
CE certification
Quick Details
-
Production Capacity:
-
6000pc/h
-
Place of Origin:
-
China
-
Voltage:
-
380v
-
Power:
-
275kw
-
Weight:
-
3000 kg
-
Production capacity:
-
6000pcs/h
-
Water consumption:
-
640kg/h
-
Electity consumption:
-
120kw/h
-
Natural gas consumption:
-
90m³/h
-
Diesel oil consumption:
-
90L/h
-
Total power:
-
275kw
-
Raw material:
-
250kg/h
-
Number of operator per shift:
-
6 people
-
Certification:
-
CE certification
Products Description

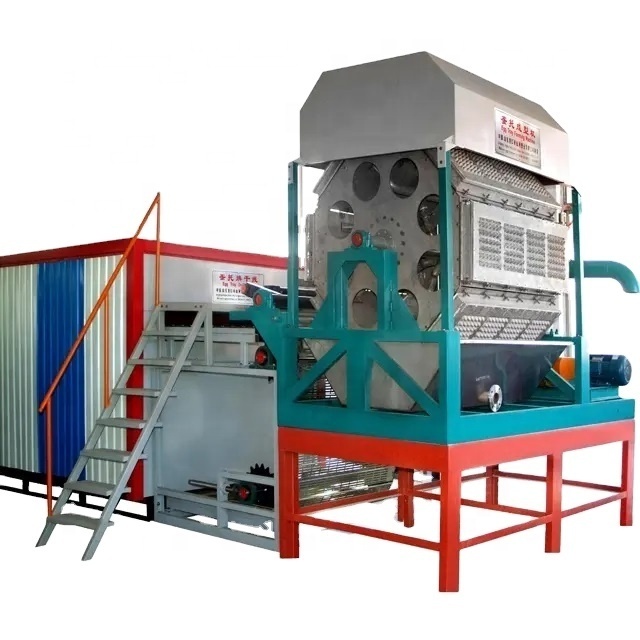

6000pcs egg tray machine egg box forming machine with high quality
|
Production capacity
|
6000pcs/h
|
|
Water consumption
|
640kg/h
|
|
Electity consumption
|
120kw/h
|
|
Natural gas consumption
|
90m3/h
|
|
Diesel oil consumption
|
90L/h
|
PRODUCT SPECIFICATIONS
Forming machine
Consists of 1 molding platen and 1 transfer platen.
Molding efficiency: 5-6 cycles/min;
Equipped with vacuum automatic drainage system, automatic cleaning system for forming molds and automatic control cabinet.
The egg carton machine can produce various trays/cartons with different molds according to your requirements or samples.
Pulping system
Pulp system mainly consists of hydraulic pulper, pulp pump, multi-function grinder and mixer, control cabinet and so on.
Moulding system
Molding system is the main system of pulp waste manufacturing egg tray machine, which mainly includes automatic egg tray molding machine, egg tray molding die, vacuum pump.
Egg tray forming mold, vacuum pump, for egg tray forming and molding.
Drying line
The drying line developed by our company adopts international advanced technology, synthesizes the advantages of drying lines at home and abroad, and has obvious energy-saving effect, reaching the world advanced level. The heat source of the drying line can be natural gas, heat-conducting oil or fuel oil.
