- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GUSHI,OME
-
Model Number:
-
core drill bit
-
Working Length (mm):
-
Customized
-
Advantage:
-
High-efficiency
-
Drill Length:
-
70mm
-
Drill Depth:
-
25mm
-
OEM:
-
welcomed
-
Cutting Condition:
-
Dry or Wet
-
Material:
-
Diamond + Metal
-
Application:
-
Drilling Holes
-
Product name:
-

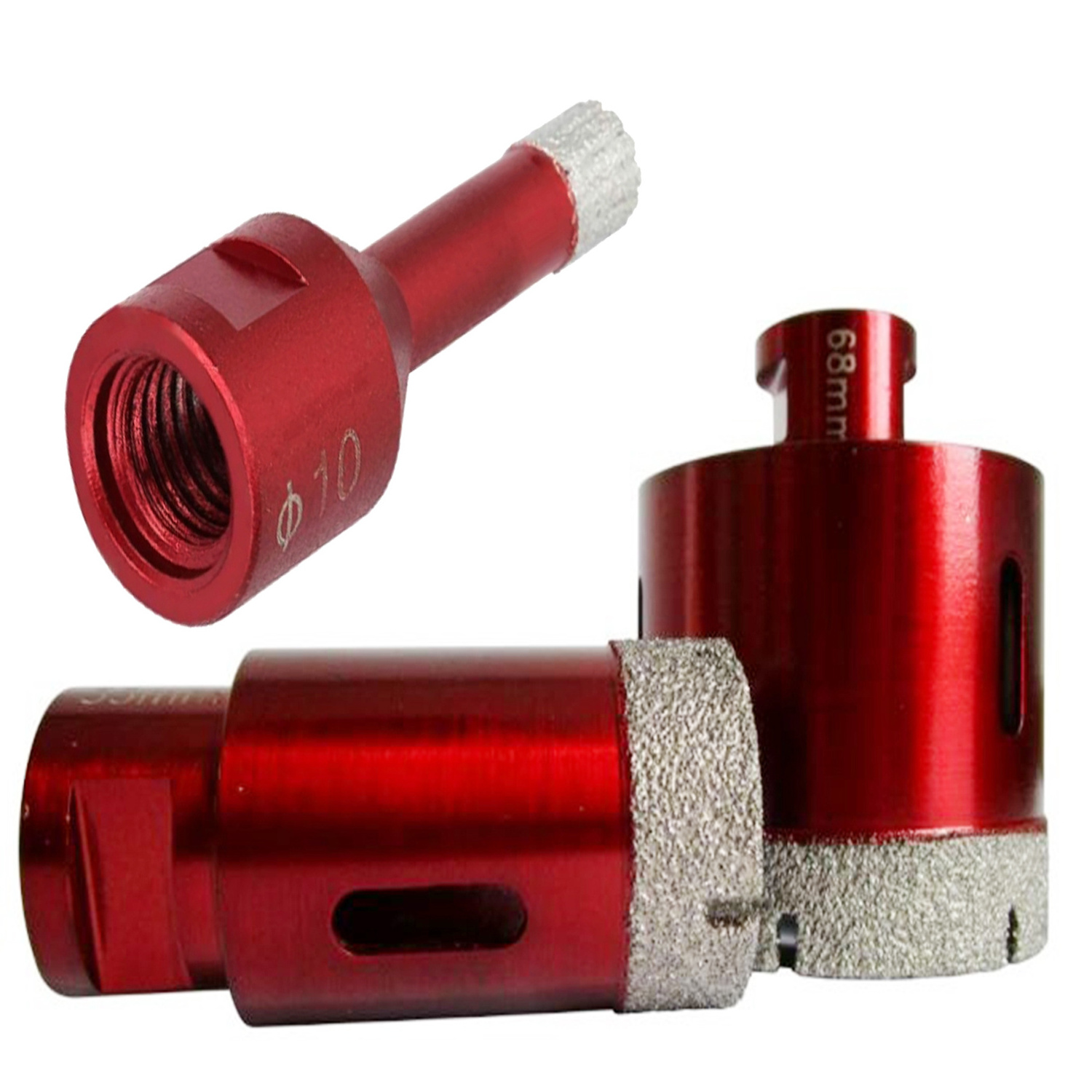

Long shank diamond core drill bit
Quick Details
-
Type:
-
Core Drill Bit
-
Use:
-
Masonry Drilling
-
Finish:
-
Other
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GUSHI,OME
-
Model Number:
-
core drill bit
-
Working Length (mm):
-
Customized
-
Advantage:
-
High-efficiency
-
Drill Length:
-
70mm
-
Drill Depth:
-
25mm
-
OEM:
-
welcomed
-
Cutting Condition:
-
Dry or Wet
-
Material:
-
Diamond + Metal
-
Application:
-
Drilling Holes
-
Product name:
-
Long shank diamond core drill bit
Premium Vacuum Brazed Technology
FAST & NEAT DRILLING: Powerful drilling bit guarantees high drilling speed, neat, round and smooth opening without gap.
Applicable to porcelain, ceramic drilling, granite, marble, stone brick, ceramic tile, etc.
Featured with good concentricity, more stability, high efficiency, long lifespan,less Chipping,Fast and Smooth drilling.
Other Description
●LARGE CHIP REMOVAL HOLE DESIGN: Large chip removal hole design reduces cutting resistance for easier drilling.
●STANDARD SCREW HOLE DESIGN: Standard screw hole design, high quality screw hole interface, more convenient for loading and unloading the drill bit.
●ADVANCED PROCESS TREATMENT: Brazed diamond process for increased wear resistance and service life, and paint spraying treatment prevent drills bit from rusting.
|
Item No.
|
Diameter(mm)
|
Length(mm)
|
Segments No.
|
Segment Height(mm)
|
|
HDCB22
|
22
|
170/350
|
2T
|
10
|
|
HDCB25
|
25
|
170/350
|
2T
|
10
|
|
HDCB28
|
28
|
170/350
|
2T
|
10
|
|
HDCB32
|
32
|
170/350
|
2T
|
10
|
|
HDCB38
|
38
|
170/350
|
3T
|
10
|
|
HDCB42
|
42
|
170/350
|
3T
|
10
|
|
HDCB48
|
48
|
170/350
|
3T
|
10
|
|
HDCB52
|
52
|
170/350/450
|
4T
|
10
|
|
HDCB58
|
58
|
170/350/450
|
4T
|
10
|
|
HDCB65
|
65
|
170/350/450
|
4T
|
10
|
|
HDCB68
|
68
|
170/350/450
|
4T
|
10
|
|
HDCB72
|
72
|
170/350/450
|
4T
|
10
|
|
HDCB78
|
78
|
170/350/450
|
4T
|
10
|
|
HDCB82
|
82
|
170/350/450
|
4T
|
10
|
|
HDCB90
|
90
|
170/350/450
|
4T
|
10
|
|
HDCB95
|
95
|
170/350/450
|
4T
|
10
|
|
HDCB102
|
102
|
170/350/450
|
5T
|
10
|
|
HDCB107
|
107
|
170/350/450
|
5T
|
10
|
|
HDCB112
|
112
|
170/350/450
|
5T
|
10
|
|
HDCB117
|
117
|
170/350/450
|
5T
|
10
|
|
HDCB127
|
127
|
170/350/450
|
6T
|
10
|
