Foot Switch Series:
Rating: 3A 250VAC ; 6A 125VAC
Insulation Strength:≥100MΩ
Contact Resistance:≤100MΩ
Test Voltage: ≥1500V AC/5S
Electonical Life:50,000 Cycles
Temperature: T85
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Daier
-
Model Number:
-
PBS-24-302P
-
type:
-
guitar effects foot switch
-
Function:
-
ON-ON
-
Panel Size:
-
12mm
-
Color:
-
Blue(Black/Red/Red brown)
-
Material:
-
Copper
-
Accessory:
-
Nut and washer
-
Terminal Type:
-
pcb Terminal 9pins
-
OEM&ODM:
-
YES
-
Weight:
-
0.023KGS/PCS
-
Package:
-
50pcs/box
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
China
-
Brand Name:
-
Daier
-
Model Number:
-
PBS-24-302P
-
type:
-
guitar effects foot switch
-
Function:
-
ON-ON
-
Panel Size:
-
12mm
-
Color:
-
Blue(Black/Red/Red brown)
-
Material:
-
Copper
-
Accessory:
-
Nut and washer
-
Terminal Type:
-
pcb Terminal 9pins
-
OEM&ODM:
-
YES
-
Weight:
-
0.023KGS/PCS
-
Package:
-
50pcs/box
-
Certification:
-
CE
Product Description
|
Model
|
PBS-24-302P
|
|
Rating
|
3A 250VAC; 6A 125VAC
|
|
Function
|
ON-ON
|
|
Color
|
Blue/Black/Red/Red brown
|
|
Electonical Life
|
50,000 Cycles
|
|
Temperature
|
T85
|
|
Operating Force
|
≤0.25N
|

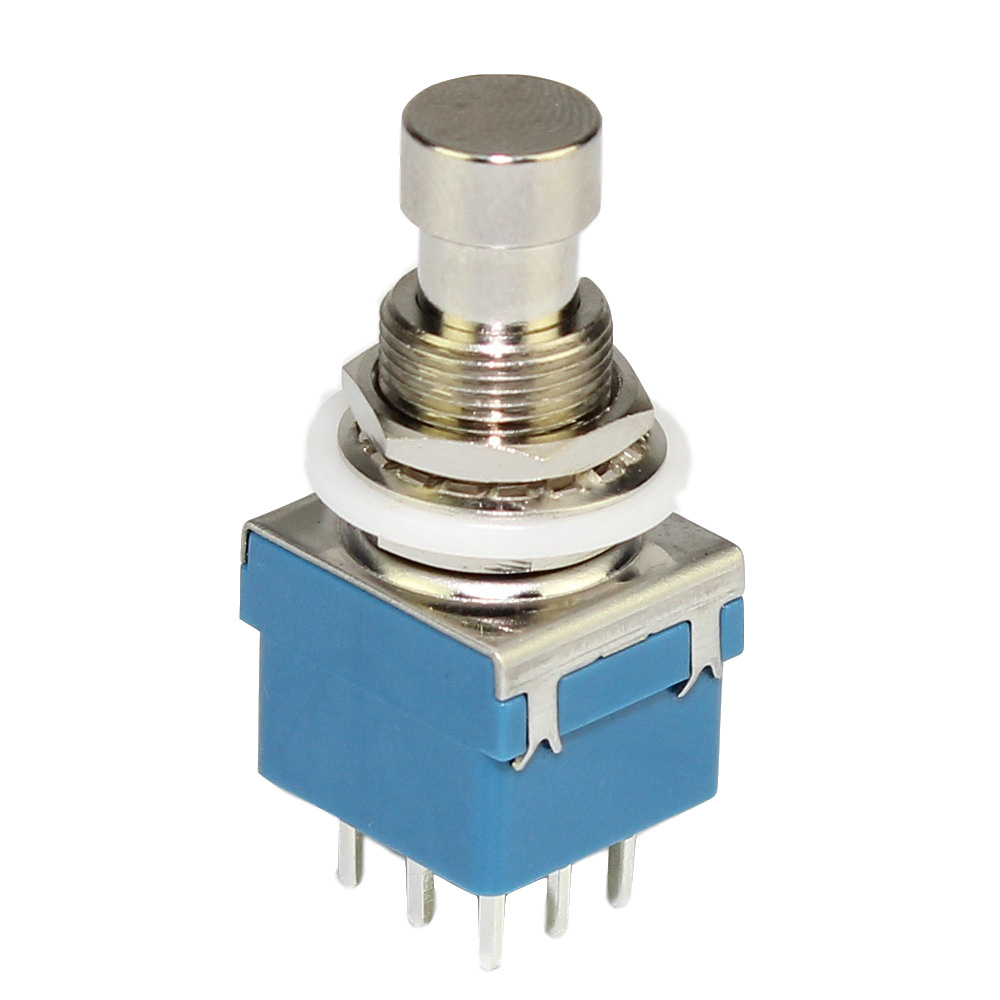

Product Show
PBS-24-302P
PBS-24-302P
Foot Switch Series:Widely used in guitar effect enclosure,volume pedal and music equipment.
More color can be choosed: Brown Red, Blue, Red, Black and Green.
Related Roducts
PBS-24B-4
2Pin Solder Terminal SPST OFF-(ON) Momentary Soft-Touch
PBS-24-202(212)
6Pin Solder Terminal DPDT ON-ON/ON-(ON) Function
PBS-24-402(412)
12Pin Solder Terminal 4PDT on-on/on-(on) Function
PBS-24-102P(112P)
3Pin Pcb Terminal SPDT ON-ON/ON-(ON) Function
PBS-24-302G(312G)
9Pin 3PDT ON-ON/ON-(ON) Gilded Solder Terminal
9Pin 3PDT ON-ON/ON-(ON) Gilded Solder Terminal
PBS-24-302P(312P)
9Pin on-on/on-(on) 3PDT Pcb Terminal
