Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANXIN
-
Model Number:
-
RQL-MAIL
-
Voltage:
-
380V/220V 50HZ/60HZ, 380V/220V 50HZ/60HZ
-
Dimension(L*W*H):
-
4200*1500*1950mm
-
Weight:
-
900 KG
-
Speed:
-
20-120pcs/min
-
Color:
-
Customized
-
After Warranty Service:
-
Video technical support
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Other
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WANXIN
-
Model Number:
-
RQL-MAIL
-
Voltage:
-
380V/220V 50HZ/60HZ, 380V/220V 50HZ/60HZ
-
Dimension(L*W*H):
-
4200*1500*1950mm
-
Weight:
-
900 KG
-
Speed:
-
20-120pcs/min
-
Color:
-
Customized
-
After Warranty Service:
-
Video technical support
Product Application
This dhl courier bag making machine is suitable for hot-sealing and hot-cutting such materials as BOPP,OPP thermal contracting films.etc. And it is a kind of ideal equipment for making socks bag, towel bag, bread bag and ornament bag,etc. The photoelectric tracking stable performance(cast iron structure) and high speed etc. And has such functions as automatic gluing, automatic punching and lace heating-sealing, etc.
This machine has the functions: Servo motor (stepping motor) controlled by computer for feeding, infinite speed variation for machine running, photoelectric tracking for length, automatic gluing, automatic punching, and thermal edge sealing.
|
|
|
|
||
|
Model
|
RQL-MAIL800
|
RQL-MAIL1000
|
||
|
Max.Bag Making Length
|
750mm
|
950mm
|
||
|
Bag Making Open Width
|
60-600mm
|
60-600mm
|
||
|
Max. Bag Making Speed
|
120pcs/min
|
120pcs/min
|
||
|
Power
|
220V-2phase
380V-3phase
|
220V-1phase
380V-3phase
|
||
|
Machine Weight
|
850KG
|
950KG
|
||
|
Machine Weight
|
3100*1200*1900mm
|
3100*1400*1900mm
|
||
|

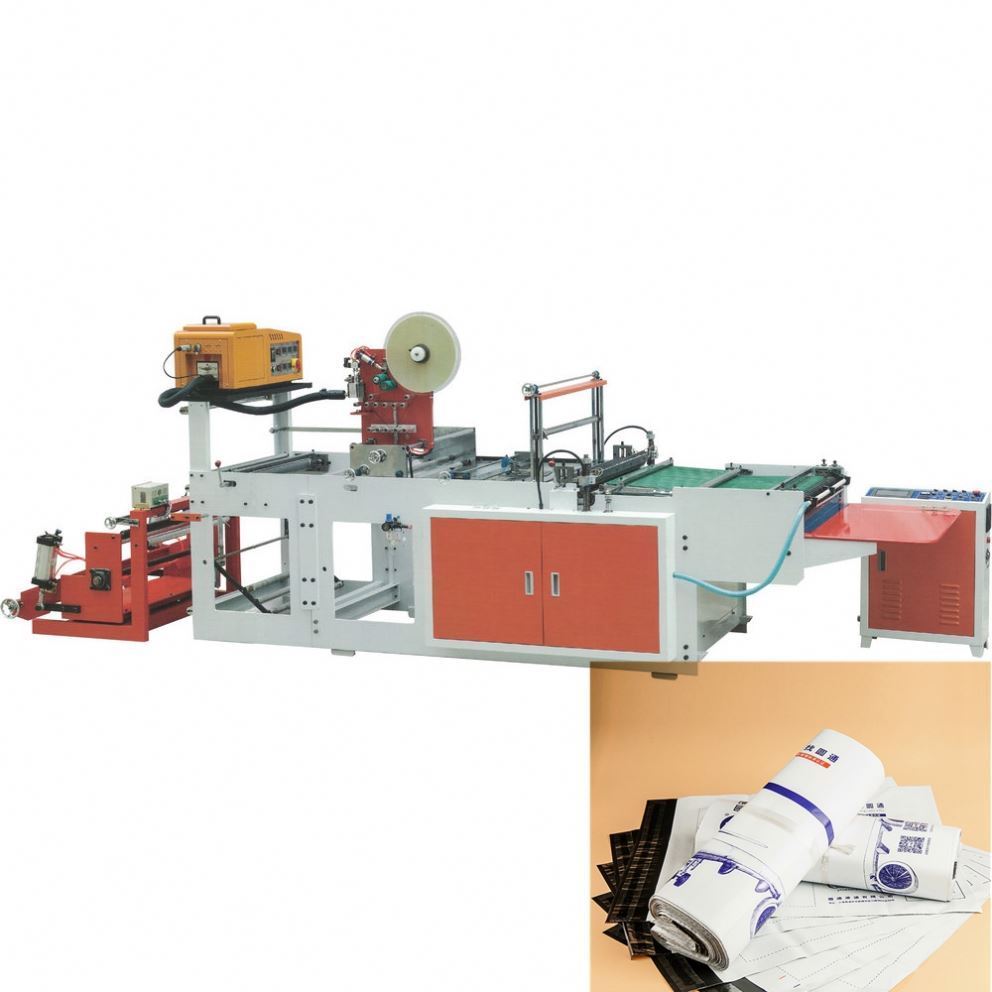

RQL PLASTIC DHL COURIER BAG MAKING MACHINE WITH CE CERTIFICATE WHOLE VIEW & DETAIL
|
|
|
|
|||
Controller Face
Micro Computer, Automatic Temperature controller. etc
Easy for controlling the whole machine
Glue Sprayer
Use famous and high quality gule sprayer, gule spraying even and save material.
Hot sealing-cutting knife, Rotary rubber roller bear
Hot sealing-cutting knife:stainless heaing plate
Rotary rubber roller: enhance service life 4-5 times
Unwinding Unit
1. Automatic tension controlling system
2. EPC system: Edge position controller
Servo Motor System
Yaskawa/Panasonic/Chinese Brand
Upgraded Electric System
Omron Temperature
Yaskawa/Panasonic/Delta Inverter
Schneider Electric parts
Upgrade Operation System
Mitsubishi PLC Controller
Touch screen or others
Auto/Manual Tension/EPC System /Triangl e Folding Device
Conveyor
Glue attaching/Ultrasonic sealing Device
Glue attaching device: for express bag self-sticker attaching
Ultrasonic sealing device: guessted sealing
Film Blowing Machine Workshop
For Single/Double/Three Layer PE Film Blowing Machine Production
For PP Film Blowing Machine Production
For PVC Film Blowing Machine Production
Bag Making Machine Workshop
T-shirt Bag Making Machine Production
Zipper Bag/BOPP Bag/Side sealing Bag Making Machine
Others Bag Making Machine
Printing Machine Workshop
2/4/6/8 Color Flexo Printing Machine (normal/middle/high speed)
Gravure Printing Machine (normal/middle/high speed)
PE Wrap Film Packing
It suitable for full container loading
Wooden Case Packing
It suitable for LCL loading
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
