Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FSHLASER
-
Wavelength:
-
10 8 0 + 10 n m
-
Focal Spot Diameter:
-
0 .8 / 1 .0 / 1 .2 / 1 .6 / 2 .0 m m
-
Dimensions:
-
115 0 X 6 3 0 X 10 8 0 m m
-
Weight (KG):
-
220 KG
-
Core Components:
-
LASER
-
Product name:
-
Handheld Laser Welding Machine
-
Welding speed:
-
5 ~ 3 0 0 m m / s
Quick Details
-
Max. Output Power:
-
2000w
-
Usage:
-
metal welding
-
Laser Source Brand:
-
RAYCUS /IPG / Max
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FSHLASER
-
Wavelength:
-
10 8 0 + 10 n m
-
Focal Spot Diameter:
-
0 .8 / 1 .0 / 1 .2 / 1 .6 / 2 .0 m m
-
Dimensions:
-
115 0 X 6 3 0 X 10 8 0 m m
-
Weight (KG):
-
220 KG
-
Core Components:
-
LASER
-
Product name:
-
Handheld Laser Welding Machine
-
Welding speed:
-
5 ~ 3 0 0 m m / s
Product Overview

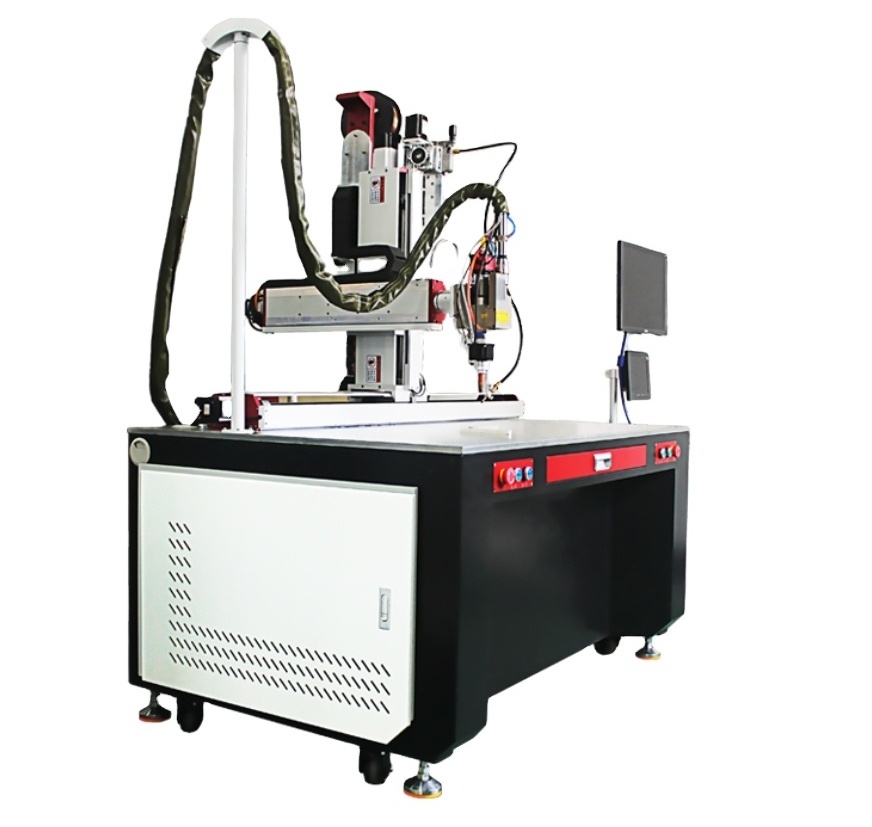

FSH series laser platform welding machine
The FSH- series platform laser welding machine is a new generation of laser welding products. Its laser is selected as a dedicated high-quality light source, and the entire machine adopts an integrated design, with beautiful appearance and stable performance, easy installation and simple operation, and high safety. It has the characteristics of fast welding speed, high efficiency, good welding effect, low welding consumables, long service life, and environmental protection. It can be widely used for welding in industries such as kitchen utensils, door and window guardrails, stairs and elevators, stainless steel furniture, hardware sheet metal, billboards, craft gifts, automobile repair, automobile manufacturing, rail transit, and aerospace.
PRODUCT SPECIFICATIONS
|
Model series
|
FSH-series
|
|
|
||
|
model
|
FSH -15 0 0 W
|
MHJ-1500E
|
FSH-20 0 0 W
|
||
|
output power
|
1500W
|
1500W
|
2000W
|
||
|
Laser Wavelength
|
1080+10 nm
|
|
|
||
|
Working mode
|
Continuous/Modulation
|
|
|
||
|
Power regulation range
|
10 ~ 100%
|
|
|
||
|
Fiber core diameter
|
25 or50
|
|
|
||
|
x. Y .zJourney
|
5 0 0 m m * 3 0 0 m m * 3 0 0 m m
|
|
|
||
|
Aiming and positioning
|
CCD
|
|
|
||
|
Fiber Length
|
10 m
|
|
|
||
|
Welding speed
|
5 ~ 300 mm/s
|
|
|
||
|
Applicable thickness
|
＜ 6mm（Depending on the material）
|
|
|
||
|
wire feeder
|
standard configuration wire feeding speed 38~600mm/min
|
|
|
||
|
Wire feeding diameter
|
0.8/1.0/1.2/1.6/2.0mm
|
|
|
||
|
Cooling method
|
Water-cooling
|
|
|
||
|
work environment
|
10~40°C、humidity 10~85%、No condensation
|
|
|
||
|
rated power
|
3KW
|
4.5KW
|
5KW
|
||
|
working voltage
|
220±20V,AC,PE,50/60Hz
|
|
|
||
|
External dimensions
|
1150X630X1080 mm
|
|
|
||
|
Overall weight
|
about250kg
|
|
|
||
MARKING EFFECT
