Quick Details
-
Size:
-
as customized
-
Place of Origin:
-
Shandong, China
-
Rated Load:
-
23000 kg
-
Tare Weight:
-
16900 kg
-
Axle Brand:
-
FUWA (BPW optional)
-
Landing Leg:
-
FUWA 28T
-
Color:
-
Optional
-
Tyre Specifications:
-
11.00R20 12PR 12R22.5 12PR
-
Pieces of leaf-spring:
-
10(8)(4)
-
Material of the Main Beam:
-
Q235B manganese plates, automatic submerged arc welded
-
Brake Air Chamber:
-
Four double and two single chamber
-
Wheel Base:
-
8980+1310+1310 (mm)
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
23T
-
Brand Name:
-
AOTONG
-
Size:
-
as customized
-
Place of Origin:
-
Shandong, China
-
Rated Load:
-
23000 kg
-
Tare Weight:
-
16900 kg
-
Axle Brand:
-
FUWA (BPW optional)
-
Landing Leg:
-
FUWA 28T
-
Color:
-
Optional
-
Tyre Specifications:
-
11.00R20 12PR 12R22.5 12PR
-
Pieces of leaf-spring:
-
10(8)(4)
-
Material of the Main Beam:
-
Q235B manganese plates, automatic submerged arc welded
-
Brake Air Chamber:
-
Four double and two single chamber
-
Wheel Base:
-
8980+1310+1310 (mm)
bulk cement tank semi trailer, used bulk cement trailer, bulk cement tanker, cement bulk carriers, bulk cement transport truck, bulk cement trailer for sale, cement bulker compressor, trailers

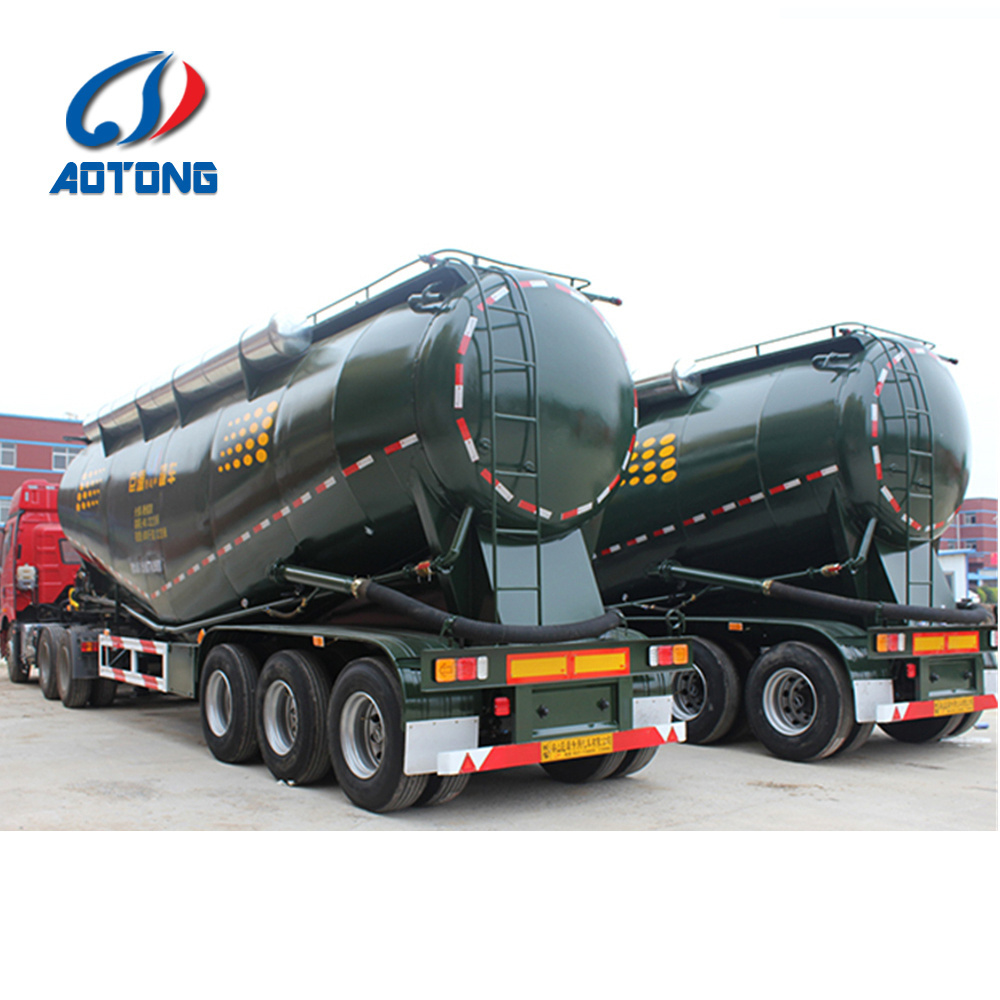

Bulk cement tank semi trailer specifications for reference
|
Product Specifications |
|
|
Model Number |
LAT9408GFL |
|
Total Weight |
400 00 kg |
|
Rated Load |
300 00 kg |
|
Tare Weight |
1 00 00 kg |
|
Volume |
73M 3 , diesel engine, air compressor, and the tank shell make the whole a "W"shape. |
|
Wheel Base |
8580+1310+1310 (mm) |
|
Tyre Specifications |
11.00R20 - 1 8 PR 12R22.5 - 1 8 PR |
|
No. Of the Tyres |
12 |
|
Axle Brand |
FUWA (BPW optional) |
|
No. Of the Axles |
3 |
|
Axle-load |
24 000 kg |
|
King Pin |
50#/90# |
|
Landing Leg |
28ton |
|
Pieces of leaf-spring |
10(8) |
|
Suspension |
independent stamping steel rigid suspension (or air suspension) |
|
Departure Angle |
23 |
|
Front/Rear Overhang |
1400 mm |
|
Outside Dimensions |
13000X2500X4000 (LxWxH) (mm) |
|
(Interior)Tank shell Dimensions |
13000X2500X3350 (LxWxH) (mm) |
|
Material of the Main Beam |
Q3 4 5B manganese plates, automatic submerged arc welded |
|
Brake System |
Dual line braking system / ABS |
|
Brake Air Chamber |
Six double chamber |
|
Electrical |
24V 7 ways(7 wire harness) |
|
Usage |
The cargo's carrying part is tank-style designed, is suitable for the transportation of liquid products, bulk materials, and bulk cement. |
|
Characteristics |
1. High transport efficiency, ensuring the products will not be deteriorated in the process of transportation, saving the packing materials to reduce the transport costs. 2. Equipped with gasification bed, intake control system, and thrusting control system to ensure the pipelines unimpeded. 3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed. 4. The diesel engine, providing compressed air. |
|
Other Specifications |
The sealing head theshell can be torque and ellipse, and internal anti-wave plates are installed. Heat preservation organization adopts the single-layer insulation by using compressed thick glass fiber, with good presence and light weight. The internal part can be single layer or dual layer |
