Quick Details
-
Model Number:
-
WRA-6120(A)/10(A)/02(A)
-
Brand Name:
-
Winner
-
Standard or Nonstandard:
-
Standard
-
certificate:
-
CE/ROHS
-
Power supply:
-
AC220V, AC110V, AC24V
-
Output torque:
-
2N.m
-
Power consumption:
-
5W
-
Control way:
-
on/off or 3-piont
-
Pipe Connection:
-
G/BSP
-
Running time:
-
7.5S/50Hz, 6.2S/60Hz
-
Waranty:
-
18 months
Quick Details
-
Port Size:
-
1/2"-1"
-
Warranty:
-
1 year
-
Place of Origin:
-
Hunan, China
-
Model Number:
-
WRA-6120(A)/10(A)/02(A)
-
Brand Name:
-
Winner
-
Standard or Nonstandard:
-
Standard
-
certificate:
-
CE/ROHS
-
Power supply:
-
AC220V, AC110V, AC24V
-
Output torque:
-
2N.m
-
Power consumption:
-
5W
-
Control way:
-
on/off or 3-piont
-
Pipe Connection:
-
G/BSP
-
Running time:
-
7.5S/50Hz, 6.2S/60Hz
-
Waranty:
-
18 months
Multiple sizes 24V 110V 120V 220V 240V AC 3 way or 2 way DN50 pvc motorized water ball valve
The typical customer
We are the single supplier of Daikin air condition in China and We have supplied for daikin four years of electric ball valve
The product applications
1,Can be used for central air-conditioning fan coil
2, Can be used in multi-function VRV heat pump heating system
3, Can be used in solar hot water system ;
4, Can be used in industrial equipment, new energy equipment, water treatment system and so on;
The product technical parameters
Material
|
Part |
Material |
|
Valve boby |
Hpb59-1 & (Gilded with Nickle) & Hpb60-2 |
|
Seal |
Ball: PTFE+EPDM with double O-ring |
|
Stem: EPDM with double O-ring |
|
|
Actuator shell |
PC+GF10 |
|
Actuator base |
PC+GF10 |
|
Actuator revolving shaft |
POM |
Actuator Parameters : Type
|
Model No. |
Working Voltage |
Actuator type |
Output torque |
Consumption |
On/off time |
Valve body |
Parameters |
|
WRA-6220 |
230VAC±15% 50/60Hz |
3-piont or on/off |
2N.m |
5W |
50Hz:7.5S 60Hz:6.2S |
W8BV215 W8BV220 W8BV225 W8BV315 W8BV320 W8BV325 |
IP55 & IP54 Ambient temperature: -20 °C~70°C Ambient humidity: 0-95%RH |
|
WRA-6220A |
On/off |
||||||
|
WRA-6310 |
110VAC±15% 50/60Hz |
3-piont or on/off |
|||||
|
WRA-6210A |
On/off |
||||||
|
WRA-6202 |
24VAC±15% 50/60Hz |
3-piont or on/off |
|||||
|
WRA-6202A |
On/off |
Valve boby Parameters: Type
|
Model No. |
Type |
Inner Dia. |
Inch |
Kvs(m 3 /h) |
Pvmax(KPa) |
P s(KPa) |
Medidum |
Temperture |
|
W8BV215 |
2 way |
12mm |
1/2” |
8.6 |
1000 |
1400 |
Cool/hot water 50%glycol solutions |
2-~9 0 °C |
|
W8BV220 |
15mm |
3/4” |
6 ; 21 |
1000 |
1400 |
|||
|
W8BV225 |
20mm |
1” |
26 |
1000 |
1400 |
|||
|
W8BV315 |
3 way |
12mm |
1/2” |
8.6 |
1000 |
1400 |
||
|
W8BV320 |
15mm |
3/4” |
21 |
1000 |
1400 |
|||
|
W8BV325 |
18mm |
1” |
22 |
1000 |
1400 |

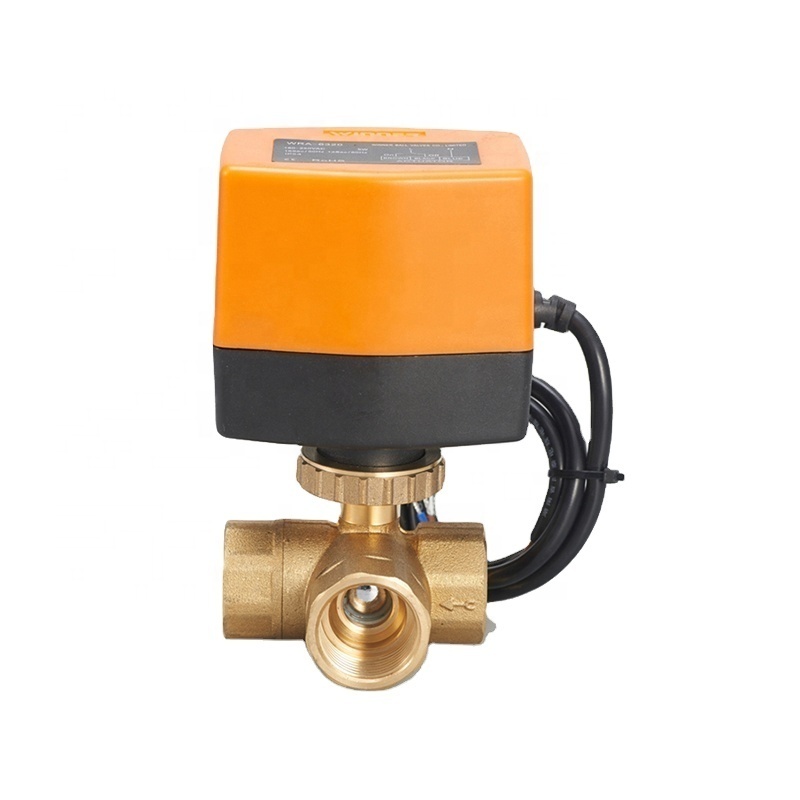

Special custom-made product: Yellow 3 way electric ball valve The standard: orange 2 way electric ball valve factory
3 way ball valve body 2 way ball valve body
Actuator
The photos of production, equipment and warehouse
Semi-finished valve body The valve le ak detection
Production line Test line
Packing
Guarantee period
Guarantee period :18 months
Service time:50000 times
