Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
SD10A
-
Brand Name:
-
SHENDA
-
Working Lifetime(Hour):
-
30000
-
Lamp Luminous Flux(lm):
-
5400
-
product name:
-
2x2ft 2x4ft fluorescent led batten light fixture
-
power:
-
18WX1/18WX2/18WX3
-
cover material:
-
PMMA/PC/GLASS
-
install:
-
ceiling recessed
-
application:
-
cleanroom
-
warranty:
-
2 years
-
openway:
-
bottom openable
-
body material:
-
CRS coating
-
Certification:
-
CE ROHS
-
Certificate:
-
CE TUV GS ROHS
-
Number of Lights:
-
2/4/6 Arms
-
Beam Angle(°):
-
102
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
100
-
Warranty(Year):
-
2-Year
-
CRI (Ra>):
-
80
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
SD10A
-
Brand Name:
-
SHENDA
-
Working Lifetime(Hour):
-
30000
-
Lamp Luminous Flux(lm):
-
5400
-
product name:
-
2x2ft 2x4ft fluorescent led batten light fixture
-
power:
-
18WX1/18WX2/18WX3
-
cover material:
-
PMMA/PC/GLASS
-
install:
-
ceiling recessed
-
application:
-
cleanroom
-
warranty:
-
2 years
-
openway:
-
bottom openable
-
body material:
-
CRS coating
-
Certification:
-
CE ROHS
-
Certificate:
-
CE TUV GS ROHS
-
Number of Lights:
-
2/4/6 Arms
-
Beam Angle(°):
-
102
PRODUCT DESCRIPTION

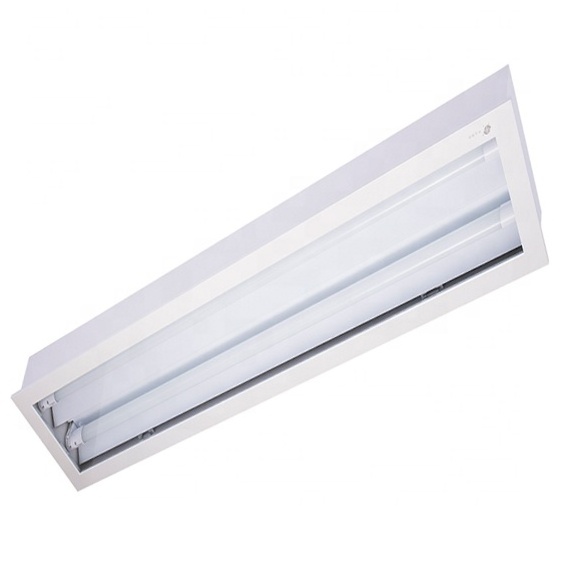

Cleanroom recessed light fixture-SD10A/12A
cleanroom recessed light fixture are used in where hygiene keeps great importance, such as pharmaceutical industries, laboratories and hospitals as well as food production facilities. This classic type of fixtures represent a high level of dust-proof and water-proof which give a safe use and a cleaning environment to plants. Reliable led engine delivers, symmetric lighting beams and flexible mounting ways make it access to a wide range of application of high standard cleanroom industry.
Model: SD10A/12A SERIES
Light souce: LED T5/T8
Light souce: LED T5/T8
Maintenance: Bottom opening
Light source replaceable: yes
Driver/Transfer/power unit: power supply unit
Driver included: NONE for led light fixture/ballast for fluorescent light fixture
Optical color/lens type: clear/milky white PC/PMMA/GLASS
Connection: screw connector
Protection class level: safety class Ⅱ
Flammability mark:none fire resistance/fire resistance C0/V2/TPA/TPB lens surface
Warranty period: 2 years
Light source replaceable: yes
Driver/Transfer/power unit: power supply unit
Driver included: NONE for led light fixture/ballast for fluorescent light fixture
Optical color/lens type: clear/milky white PC/PMMA/GLASS
Connection: screw connector
Protection class level: safety class Ⅱ
Flammability mark:none fire resistance/fire resistance C0/V2/TPA/TPB lens surface
Warranty period: 2 years
Body material: CRS printing housing, aluminum alloy frame,PC/PMMA/GLASS door frame, aluminum white reflector
|
NAME
|
CLEAN ROOM LED LIGHT FIXTURE
|
|
MODEL
|
MQ-Y9X3/SD10A
|
|
POWER
|
9WX3
|
|
SIZE
|
655X655X75MM
|
|
CUT-OUT
|
632X632MM
|
|
MAINTENANCE
|
BOTTOM ACCESS
|
|
IP
|
IP65/IP54/IP20(FRONT SURFACE)
|
|
LIGHT SOURCE
|
FLUORESCENT/LED
|
|
LENS
|
PC/PMMA/GLASS
|
|
MODEL
|
POWER(W)
|
SIZE(LXWXH)
|
CUT-OUT)LXW)
|
SUITABLE TUBE
|
|
MQ-Y9X1/SD10A/12A
|
9WX1
|
655X188X90
|
632X165
|
FLUORESCENT/LED T8/T5
|
|
MQ-Y9X2/SD10A/12A
|
9WX2
|
655X278X75
|
632X255
|
|
|
MQ-Y9X3/SD10A/12A
|
9WX3
|
655X328X75
|
632X305
|
|
|
MQ-Y9X3/SD10A/12A
|
9WX3
|
655X655X75
|
632X632
|
|
|
MQ-Y9X3/SD10A/12A
|
9WX3
|
598X598X93
|
575X575
|
|
|
MQ-Y14X1/SD10A/12A
|
14WX1
|
960X188X90
|
937X165
|
|
|
MQ-Y14X2/SD10A/12A
|
14WX2
|
960X278X75
|
937X255
|
|
|
MQ-Y14X3/SD10A/12A
|
14WX3
|
960X328X75
|
937X305
|
|
|
MQ-Y18X1/SD10A/12A
|
18WX1
|
1265X188X90
|
1242X165
|
|
|
MQ-Y18X2/SD10A/12A
|
18WX2
|
1265X278X75
|
1242X255
|
|
|
MQ-Y18X3/SD10A/12A
|
18WX3
|
1265X328X75
|
1242X305
|
|
|
MQ-Y18X3/SD10A/12A
|
18WX3
|
1198X598X93
|
1175X575
|
|
