Quick Details
-
Function:
-
NIGHT VISION, WDR, Remote Control, G-Sensor, Loop recording, APP Control, Voice Interaction, Build-in GPS, Build-in GSM, Emergency Accident Lock, Build-in Battery, SDK, 5G Sim Card
-
Voltage:
-
8-36V
-
Working Temperature Range:
-
-20 - 70 ℃
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Citops
-
Model Number:
-
M52HV.DGNE1
-
Product name:
-
8Ch AHD 1080P MDVR
-
Chipset:
-
Novatek 98323
-
Video input:
-
8ch AHD audio input
-
Video resolution:
-
1080P/720P/D1 Optional
-
Network:
-
CMS Platform Via 4G
-
Application:
-
Vehicle Fleet Management
-
Video format:
-
H.264/H.265
-
Storage:
-
2T+512GB Max (not Included)
-
Features:
-
4G/Wifi/GPS/G-sensor Optional
-
Serial Port:
-
Support 2 RS232, 1 RS485
Quick Details
-
Car Fitment:
-
Universal
-
Angle:
-
130°-170°
-
Resolution:
-
1080P 720P D1 Optional
-
Function:
-
NIGHT VISION, WDR, Remote Control, G-Sensor, Loop recording, APP Control, Voice Interaction, Build-in GPS, Build-in GSM, Emergency Accident Lock, Build-in Battery, SDK, 5G Sim Card
-
Voltage:
-
8-36V
-
Working Temperature Range:
-
-20 - 70 ℃
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Citops
-
Model Number:
-
M52HV.DGNE1
-
Product name:
-
8Ch AHD 1080P MDVR
-
Chipset:
-
Novatek 98323
-
Video input:
-
8ch AHD audio input
-
Video resolution:
-
1080P/720P/D1 Optional
-
Network:
-
CMS Platform Via 4G
-
Application:
-
Vehicle Fleet Management
-
Video format:
-
H.264/H.265
-
Storage:
-
2T+512GB Max (not Included)
-
Features:
-
4G/Wifi/GPS/G-sensor Optional
-
Serial Port:
-
Support 2 RS232, 1 RS485
Direct order default send:
An 8ch mdvr with 4g + gps,order only contains the mdvr;
The camera and display and other accessories need to be purchased separately, please contact customer service for details!
The camera and display and other accessories need to be purchased separately, please contact customer service for details!
Products Description

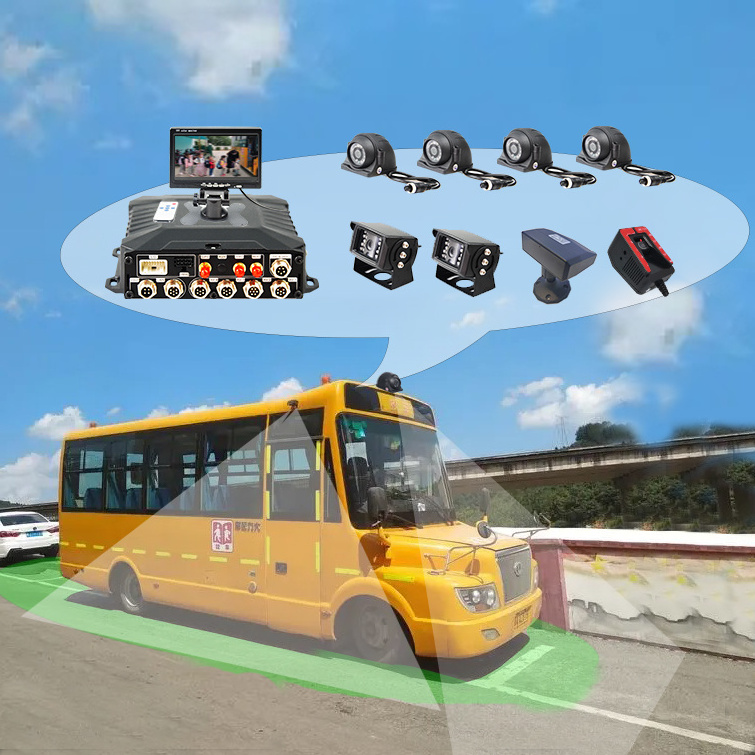

School Bus 8 Channel H.264 Mdvr Player Bus Trucks 2tb Hard Drive 256gb Sd Card Mdvr
It adopts a self-pop-up structure design of hard disk, high-speed processor NT98323 and embedded operating system, and integrates IT cutting-edge field H.264/H.265 video compression/decompression, 4G network, GPS/BD positioning and other technologies.
* The interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G WIFI and GPS functional modules
* Supports a 2.5-inch optional SSD/HDD hard disk
* Supports one SD card
* Rich peripheral interfaces
* Support external UPS battery life
* High scalability
* The interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G WIFI and GPS functional modules
* Supports a 2.5-inch optional SSD/HDD hard disk
* Supports one SD card
* Rich peripheral interfaces
* Support external UPS battery life
* High scalability
|
Item
|
|
parameters
|
|
|
Audio and Video Inputs
|
video input
|
8ch AHD audio input
|
|
|
|
audio input
|
4ch audio input
|
|
|
Audio and Video outputs
|
video output
|
Default 1-way CVBS output (VGA output optional)
|
|
|
|
speech output
|
1ch audio output
|
|
|
Audio and video parameter coding
|
video coding
|
H.264 Main Profile/H.265
|
|
|
|
Resolution
|
1080P/720P/D1 optional
|
|
|
|
audio coding
|
Default G.726,G.711A optional
|
|
|
storage space
|
HDD
|
1 2.5-inch optional: SSD/HDD hard disk
|
|
|
|
SD
|
Support 1 SD card
|
|
|
wireless network
|
4G
|
Supports 1 SIM card, optional: all major communication modules in the world
|
|
|
|
WIFI
|
2.4/5.8G optional
|
|
|
locate mode
|
BD/GPS
|
Support for mixed positioning, speed detection, time synchronization
|
|
|
interface
|
USB
|
USB2.0 interface, support export data, external engineering treasure
|
|
|
|
serial port
|
Support 2 RS232, 1 RS485,
can be connected with external sensor
|
|
|
|
I/O
|
4 level inputs, 2 analog inputs, 2 alarm outputs
|
|
|
|
network interface
|
Support external IPC, support
hybrid NVR function
|
|
|
|
Intercom
|
1 special intercom handheld mark interface
|
|
|
Physical Specifications
|
size
|
176.9mm（L）*186.8mm（W）*54mm（H）
|
|
|
|
weight
|
NW：1.4kg
GW：2kg（M52Hv-DGNE1-L as a standard） |
|
|
work environment
|
operating temperature
|
-20〜+70℃
|
|
|
|
operating humidity
|
8%〜90%（No condensation）
|
|
|
Other
|
operator schema
|
remote control、APP、WEB
|
|
|
|
· Gravity sensor
|
Built-in G-Sensor
|
|
