Quick Details
-
Warranty:
-
3 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SCBN TOOLS
-
Model Number:
-
RNMN RCGX
-
Product name:
-
CBN Inserts for Turning Cast Iron and Hard Steel Rollers
-
Keywords:
-
Round CBN Cutting Tools
-
Material:
-
Cubic Boron Nitride
-
Type:
-
Solid CBN Inserts
-
Grade:
-
SBN800,SBN850,SBN900
-
Workpiece:
-
Mill Roll
-
Application:
-
Machining Rolls
-
Cutting Materials:
-
Tungsten Carbide,High Speed Steel, Cast Iron,ect
-
Model:
-
RNMN RCGX
-
Payment:
-
T/T in advance 100%
Quick Details
-
Usage:
-
CBN Grooving Tools
-
Hardness:
-
HRC92
-
Coating:
-
Uncoated
-
Warranty:
-
3 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SCBN TOOLS
-
Model Number:
-
RNMN RCGX
-
Product name:
-
CBN Inserts for Turning Cast Iron and Hard Steel Rollers
-
Keywords:
-
Round CBN Cutting Tools
-
Material:
-
Cubic Boron Nitride
-
Type:
-
Solid CBN Inserts
-
Grade:
-
SBN800,SBN850,SBN900
-
Workpiece:
-
Mill Roll
-
Application:
-
Machining Rolls
-
Cutting Materials:
-
Tungsten Carbide,High Speed Steel, Cast Iron,ect
-
Model:
-
RNMN RCGX
-
Payment:
-
T/T in advance 100%
Round CBN Cutting Tools RNMN RCGX CBN Inserts for Turning Cast Iron and Hard Steel Rollers
Product Description

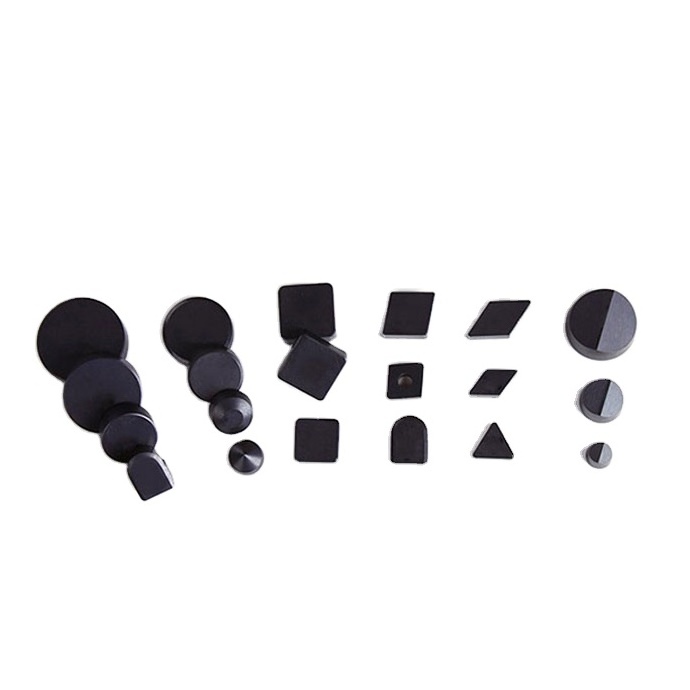

Round CBN Cutting Tools RNMN RCGX CBN Inserts for turning cast iron and hard steel rollers
Round CBN Cutting Tools, specifically RNMN and RCGX CBN inserts, are widely used in the machining industry for turning cast iron and hard steel rollers. These cutting tools have a solid cubic boron nitride (CBN) cutting edge that is extremely hard and durable, providing superior performance when working with hard materials.
The RNMN CBN inserts are designed for finish turning and precision machining applications. They have a round shape, which makes them ideal for machining small or complex parts. These inserts are versatile and can be used on various materials, including cast iron and hardened steel. They offer high precision and excellent surface finish quality, suitable for high-value workpieces.
Specification
|
Item
|
Value
|
|
Warranty
|
3 year
|
|
Customized support
|
OEM, ODM, OBM
|
|
Place of Origin
|
China,Henan,Zhengzhou
|
|
Brand Name
|
SCBN TOOLS
|
|
Model Number
|
RCGX060500 RCGX060600
|
|
Usage
|
External Turning Tool,Turning
|
|
Hardness
|
HRC92
|
|
Coating
|
Uncoated, can be Customized
|
|
Product name
|
HSS Roll Turning CBN insert
|
|
Material
|
Cubic Boron Nitride
|
|
Type
|
Solid CBN Round Tool
|
|
Grade
|
SBN800,SBN850,SBN900
|
|
Application
|
Machining Rolls
|
|
Payment
|
T/T in advance 100%
|
Solid CBN Inserts CBN Grade
Specific For Machining Different Materials Rolls, (Including Cast Iron Rolls, HSS Steel Rolls, Chilled Cast iron Rolls, Cast Steel Rolls,ect )SCBN Tools offer 3 different CBN Grade as follow:
SBN800
Low-hardness, Good Toughness.
The ultimate grade for cast iron processing, balancing lifespan and cost-effectiveness.
The ultimate grade for cast iron processing, balancing lifespan and cost-effectiveness.
SBN850
Moderate hardness and toughness.
Suitable for machining both cast iron and hardened steel materials. More universal.
Suitable for machining both cast iron and hardened steel materials. More universal.
SBN900
High hardness, low toughness.
Suitable for machining high hardness steel.
Suitable for machining high hardness steel.
|
Solid CBN Inserts RCMV/RCGV
|
|
|
|
|
||||
|
Model
|
L(mm)
|
Φ(mm)
|
S(mm)
|
r(mm)
|
||||
|
RCMV 060400
|
6
|
6.35
|
4.76
|
0
|
||||
|
RCMV 060600
|
6
|
6.35
|
6.35
|
0
|
||||
|
RCMV 090700
|
9
|
9.525
|
7.94
|
0
|
||||
|
RCMV 120700
|
12
|
12.7
|
7.94
|
0
|
||||
|
RCMV 151000
|
15
|
15.875
|
10
|
0
|
||||
|
RCMV 191000
|
19
|
19.05
|
10
|
0
|
||||
|
RCMV 201200
|
20
|
20
|
12
|
0
|
||||
|
RCMV 251200
|
25
|
25.4
|
12
|
0
|
||||
|
Solid CBN Inserts RCMX/RCGX
|
|
|
|
|
||||
|
Model
|
L(mm)
|
Φ(mm)
|
S(mm)
|
r(mm)
|
||||
|
RCMX 060400Y
|
6
|
6.35
|
4.76
|
0.6
|
||||
|
RCMX 060500Y
|
6
|
6.35
|
5
|
0.6
|
||||
|
RCMX 060700Y
|
6
|
6.35
|
7.94
|
0.6
|
||||
|
RCMX 090700Y
|
9
|
9.525
|
7.94
|
1
|
||||
|
RCMX 120700Y
|
12
|
12.7
|
7.94
|
1.2
|
||||
In contrast, the RCGX CBN inserts are ideal for high-speed rough turning applications. They have a larger cutting edge geometry and are designed for machining large parts or heavy cuts with minimal vibration. These cutting tools can remove material quickly and efficiently, making them highly effective for turning cast iron and hard steel rollers. These inserts are also highly durable, making them an excellent choice for heavy duty machining applications with prolonged tool life.
|
Solid CBN Inserts RNMN/RNGN
|
|
|
|
|
||||
|
Model
|
L(mm)
|
Φ(mm)
|
S(mm)
|
r(mm)
|
||||
|
RMMN060400
|
6
|
6.35
|
4.76
|
0
|
||||
|
RMMN090300
|
9
|
9.525
|
3.18
|
0
|
||||
|
RMMN090400
|
9
|
9.525
|
4.76
|
0
|
||||
|
RMMN120400
|
12
|
12.7
|
4.76
|
0
|
||||
|
RMMN120700
|
12
|
12.7
|
7.94
|
0
|
||||
|
RMMN150700
|
15
|
15.875
|
7.94
|
0
|
||||
|
RMMN160800
|
16
|
16
|
7.94
|
0
|
||||
|
RMMN190700
|
19
|
19.05
|
7.94
|
0
|
||||
|
RMMN201000
|
20
|
20
|
10
|
0
|
||||
|
RMMN250700
|
25
|
25.4
|
7.94
|
0
|
||||
|
RMMN251000
|
25
|
25.4
|
10
|
0
|
||||
|
RMMN251200
|
25
|
25.4
|
12
|
0
|
||||
Both types of CBN inserts offer superior performance and longevity due to their resistance to wear and ability to maintain their cutting performance at high temperatures. Their exceptional performance results in reduced cycle times and improved productivity in manufacturing processes, providing significant cost savings.
TOOL HOLDER FOR SOLID CBN INSERTS
Specific Different Materials Rolls and Different Site machining, usually we need use different Models, Such as RCMX,RCMV,RNMN, SNMN,ect. We should choose different models.
For RNMN/RNGN Solid CBN Inserts, it needs CRDNN,CRGNR/L,CRDCN
For RCMX/RCMV Solid CBN Inserts, It needs CRDCN
APPLICATION DETAILS
|
Different Materials Rolls
|
|
|
|
Types
|
Materials
|
|
|
Cast Iron Rolls
|
Chilled Cast Iron，High Chrome Cast Iron , Ductile Iron Cast Iron
|
|
|
Cast Steel Rolls
|
Alloy Steel Cast Iron，Semi-Steel,High Chrome Steel,High Speed Steel(HSS)
|
|
|
Forged Steel Rolls
|
Alloy Forged Steel
|
|
Henan WEGCL New Materials Co., Ltd.
(Named SCBN TOOLS), originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China), focusing on the research and development and production of superhard materials, is committed to providing the best cutting solutions and tools for global customers, and is regarded by customers as a reliable supplier of superhard material tools.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.
The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.
Why Choose Us
01
Technical support: We have a professional technical team that provides comprehensive technical support and consultation services. Please contact us at any time when you have any problems and we will provide timely solutions.
02
Quality guarantee: All SCBN TOOLS products undergo strict quality control and testing to ensure they meet ISO standards. If there are any quality issues, please contact us and we will handle them promptly. We are committed to providing our customers with high-quality products and services.
03
Fast response service: We promise to respond within 24 hours of receiving your feedback, and provide you with a solution in the shortest possible time.
04
Fast shipping: We promise to arrange delivery as soon as possible after receiving your order and choose the fastest express delivery method to ensure you receive the product as soon as possible. (DHL, FedEx, UPS, TNT)
FAQ
1 Who Are We?
SCBN TOOLS are based in Zhengzhou,Henan,China,originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China).
2 How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always multiple quality inspection steps in the production and final inspection before shipment;
3 What Can You Buy From Us?
Solid cbn inserts,tipped pcbn inserts,coating pcbn inserts,wiper pcbn inserts,CBN Grooving Inserts,Chipbreaker PCBN Inserts and any other customized CBN Inserts.
4 Why Should You Buy From Us Not From Other Suppliers?
1) Integrating R&D, production and sales.
2) Formerly known as Henan Advanced Materials Research Institute, located in China's Superhard material Base.
3) Known for "SCBN TOOLS" Brand and have exported our products to various countries.
5 What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Korean
