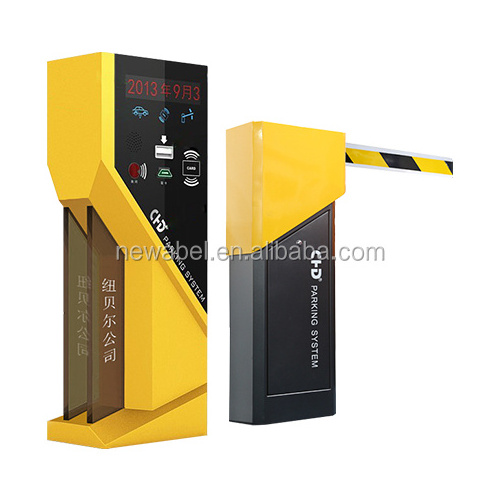

CCTV Automatic Parking System with Road Barrier Gate

CCTV Automatic Parking System with Road Barrier Gate

FOB Reference Price: Get Latest Price

≥1 Sets

US $200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 2 Years, 2years

Controlling Box Size::: 570 x 510 x 1320mm

color:: orange, other colors are optional

Material:: 2.5mm cold rolled steel

Certification:: CE/FCC/RoHS/ISO9001

Operation Mode:: RFID&Ticket

Application:: Parking Lot

Lifting speed:: 3-6S

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: CHD

Model Number:: CHD-DX-L06

Warranty:: 2 Years, 2years

Controlling Box Size::: 570 x 510 x 1320mm

color:: orange, other colors are optional

Material:: 2.5mm cold rolled steel

Certification:: CE/FCC/RoHS/ISO9001

Operation Mode:: RFID&Ticket

Application:: Parking Lot

Lifting speed:: 3-6S

Product Description

What is the details of our Car Parking management system ?

CHD-DX-L016 parking cabinet&barrier gate use large amount straight line match plane,highlight product tough,strong,splendid temperament;user large number of inclined interpenetration, make the product no lack of modern technology;and the appropriate use of transparent acrylic, make product dynamic and clever,let the product sedate and not too stiff.

According parking lot application standard design,integrate into intimate visual performance and reliable functional demands in one three-dimensional modeling,integrate into environment,full of human color;seal design, waterproof,dustproof,surface adopt imported powder automobile lacquer handing,anti corrosion,anti-ageing,suitable for outdoor environment use,under normal circumstances ten years do not fade;dismountable door design,easy to open check and maintain,has multi number of new concept design:material,color,apperance alternative.Applicable places:zone,commercial square,building,enterprise park,factory etc ground/underground car parking entry exit;Can be installed accessories:parking controller board,long range,middle range,proximity card reader,LED display screen,auto swallower/dispenser card machine,loop detector,pressure waves,voice system,intercom system,switch power,etc .

What is the Specifications of our Car Parking management system ?

Control box :

Size	1300mm(H)×500mm(W)×350mm(L)
Materia	sheet metal+plastic steel+strong board
Surface treatment	import powder paint
ESD	contact discharge±6kV,air discharge:±8kV
Technological characteristics	waterproof,dustproof,impact resistance,anti corrosion,anti-aging
Color	big yellow,silvery grey
Multiple compatible interfaces	configurable freely, support external charges display, full lots display, camera, RF card reader, voice speaker etc.

Barrier Gate

Barrier size	950mm x 302mm x 350mm
product structure	barrier gate consists of barrier controller board,cabinet, balance mechanism,barrierpole bracket,barrier pole.motor consists of reduction mechanism,crank mechanism etc;crank mechanism drive,reduce the mechanical fault, low noise,pollution-free,no need for maintenance.
Barrier pole	can use straight pole,folding pole,fence pole;length has 3m,6m,7m;appearance has round, four corners,eight corners;use high strength aluminium alloy pipe,out casing anti collision styrofoam,surface use yellow and black reflective film
Running speed	6m pole:4-6s,3m pole:2-4s
Working life	500 million
Features	High sensitivity magnetic-sensing limit control system, low voltage DC control, safe and reliable, accurate limit; Has power off manual, automatic up pole equipment; Special balance mechanism, keep pole up vertical, pole down horizontal and steady;When temperature higher than 135,the power will cut off automaticly to protect motor can not be burned out
