Quick Details
-
Model Number:
-
M2620
-
Style:
-
Protective case
-
Protective level:
-
IP67
-
Weight:
-
5.3kg
-
External Dim.(L*W*D):
-
570*418*285mm
-
Internal Dim.(L*W*D):
-
508*356*254mm
-
Depth:
-
48+206mm
-
Temperature Resistant:
-
-40~90°C
Quick Details
-
Color:
-
Brown, silver, black
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Tricases
-
Model Number:
-
M2620
-
Style:
-
Protective case
-
Protective level:
-
IP67
-
Weight:
-
5.3kg
-
External Dim.(L*W*D):
-
570*418*285mm
-
Internal Dim.(L*W*D):
-
508*356*254mm
-
Depth:
-
48+206mm
-
Temperature Resistant:
-
-40~90°C
Specification
|

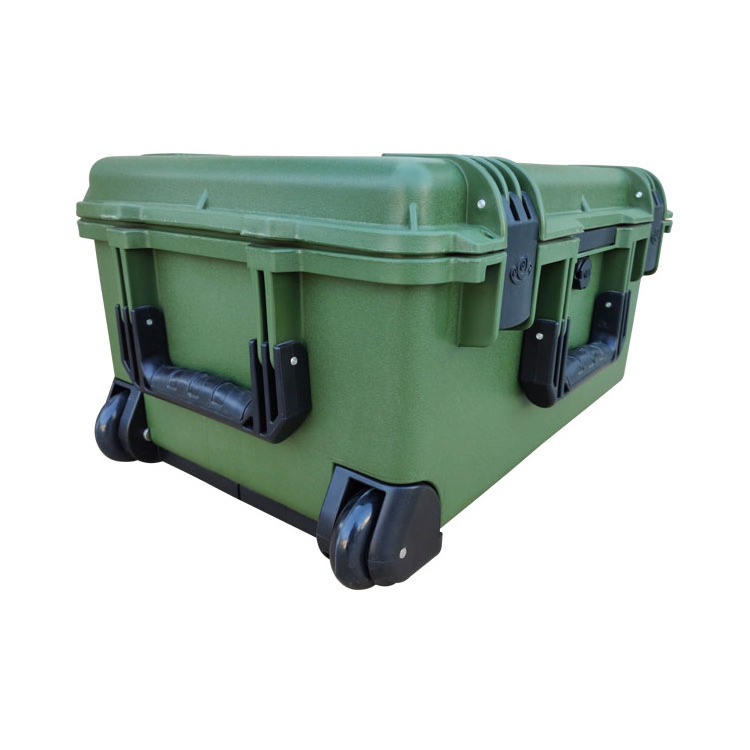

Type M2620 waterproof IP67
gentleman jack case
|
|
|
|
Model Name
|
M2620
|
|
|
External Dimension (L*W*D)
|
570*418*285 mm
|
|
|
Internal Dimension (L*W*D)
|
508*356*254 mm
|
|
|
Type
|
watertight airtight shockproof case
|
|
|
Waterproof
|
IP67
|
|
|
Material
|
Engineer PP
|
|
|
Wall thickness
|
4.5mm
|
|
|
Process
|
Injection molding
|
|
|
Warranty
|
Life-time warranty
|
|
|
Weight(empty)
|
13 pounds
|
|
|
Volume
|
45.93L
|
|
|
Buoyancy Max.(kg)
|
58.93kg
|
|
|
Wheels and Pull rod
|
Yes
|
|
|
Colors
|
Black/Yellow/Green
|
|
|
Range Temperature(°C)
|
—40~90 °C
|
|
Product Description
Packing & Delivery
Each hard-case have an individual carton and nylon bag.
Certifications
ISO 9001:2015
High-tech Enterprises
Trademark registration in USA
Testing Photos
Raining Test
Test conditions: the rainfall intensity is 1.7mm/min, the raindrop diameter ranges from 0.5mm ~ 4.5mm, the horizontal wind speed is no less than 18m/s, and the time is 120mins. There should be no water droplets in the carrying case after the test.
UnderWater Test
Test means: completely immerse the specimen in water in its service position as specified by client; The lowest point of enclosures with a height less than 850mm is located 1000mm below surface of the water;Test duration:30 minutes(minimum);
Accessories Support
Customized Logo Stickers
Customized cabinet modification
Customized EVA Foam/Sponge
Customized Lid Envelopes & Dividers
Customized Panels & Screen
Customized Rack Case
Nylon Wheels
Password padlock
