Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongke
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
as per machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Speed(m/s):
-
1.3-2.0
-
Capacity(t/h):
-
655-1284
-
Brand name:
-
Zhongke
-
Type:
-
belt conveyor
-
Valtage:
-
380v
-
Length(m):
-
≤20-40
-
Certification:
-
CE ISO CV
Quick Details
-
Power:
-
7.5 KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
500mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhongke
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
as per machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field maintenance and repair service
-
Speed(m/s):
-
1.3-2.0
-
Capacity(t/h):
-
655-1284
-
Brand name:
-
Zhongke
-
Type:
-
belt conveyor
-
Valtage:
-
380v
-
Length(m):
-
≤20-40
-
Certification:
-
CE ISO CV
Endless conveyor belt
Belt convey produced by our company has the strong points of large conveying amount, simple structure, easy maintainance, high standardization degree, etc. which is widely used in mining, metallurgy, coal and other industries. the belt conveyor can be used to transfer bulk materials or materials in pieces.
Features of conveyor
1). Large delivering capacity
2). Standard parts
3). Simple structure
4). Easy Maintenance
5). We offer a wide range of belt conveyors that are capable of handling heavy loads
6). Belt of the conveyor is fabricated from high grade mild steel, stainless steel
Belt conveyor technical parameters
|
Bell Width (mm) |
Length(m)/Power(KW) |
Speed (m/s) |
Capacity (t/h) |
||
|
500 |
≤12/3 |
12-20/4-5.5 |
20-30/5.5-7.5 |
1.3-1.6 |
78-191 |
|
650 |
≤12/4 |
12-20/5.5 |
20-30/7.5-11 |
1.3-1.6 |
131-323 |
|
800 |
≤6/4 |
6-15/5.5 |
15-30/7.5-15 |
1.3-1.6 |
278-546 |
|
1000 |
≤10/5.5 |
10-20/7.5-11 |
20-40/11-22 |
1.3-2.0 |
435-853 |
|
1200 |
≤10/7.5 |
10-20/11 |
20-40/15-30 |
1.3-2.0 |
655-1284 |
|
1400 |
≤10/7.5 |
10-20/11 |
20-40/15-30 |
1.3-2.0 |
655-1284 |
|
1600 |
≤10/7.5 |
10-20/11 |
20-40/15-30 |
1.3-2.0 |
655-1284 |
Sructure of conveyor belt
Belt conveyor system consists of two or more pulleys (sometimes referred to as drums), with an endless loop of carrying medium - the conveyor belt - that rotates about them.
One or both of the pulleys are powered, moving the belt and the material on the belt forward. The powered pulley is called the drive pulley while the unpowered pulley is called the idler pulley.
Workshop screen
Application:
This Rubber Belt Conveyor is mainly used in ore processing plant(like flotation separation plant, magnetic separation plant etc), stone production line, sand making plant, and so on

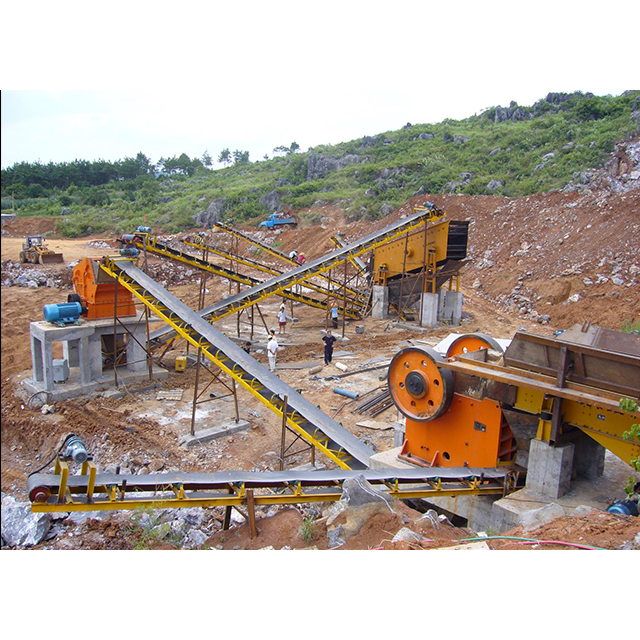

Working site
