Quick Details
-
Dimension(L*W*H):
-
2200*1530*1560mm
Quick Details
-
Place of Origin:
-
China
-
Voltage:
-
220/380v
-
Weight:
-
1 KG
-
Dimension(L*W*H):
-
2200*1530*1560mm
Product Overview

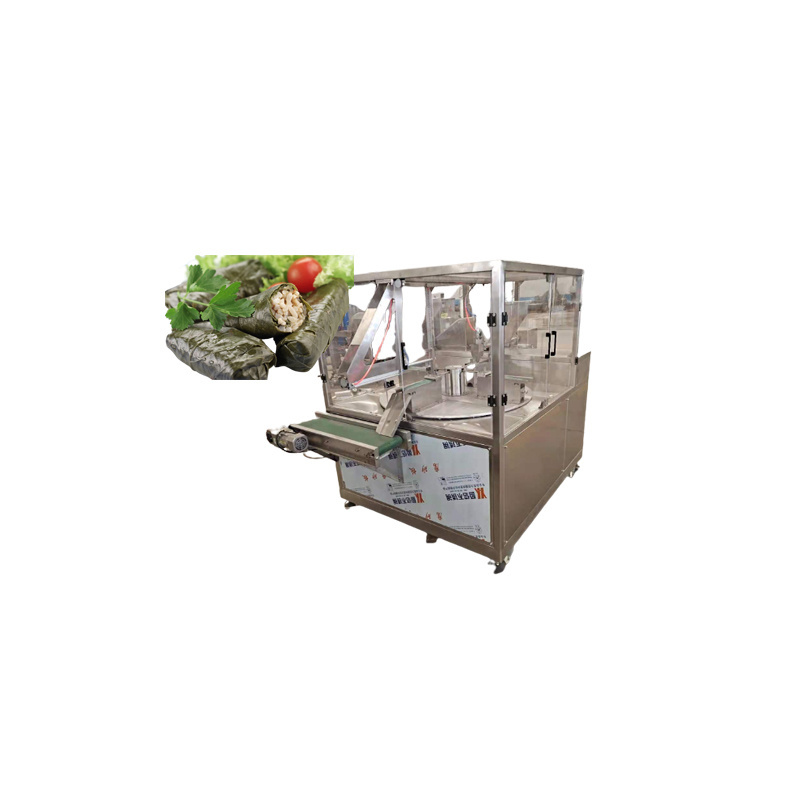

Grape leaf rice rolling machine
The utility model discloses a grape leaf rice rolling machine, which includes a frame structure and an upper screw conveying device, an automatic unloading device, an automatic rice rolling device, and a conveying device arranged on the frame structure;the screw conveying device includes a transmission motor, a transmission device, and a transmission device. shaft, conveyor mixing cage, and trough; the automatic unloading device includes a cylinder, an inserting knife, and a hopper unloading cylinder, and the cylinder drives the inserting knife to move up and down; the automatic rice rolling device includes a divider, a transmission motor, a synchronous pulley, and a rotating disk , former, former slider, guide block, reel cylinder, guide groove. The utility model has good restoration effect of wolfberry, and the restored wolfberry is round and plump. The utility model organically combines a screw conveying device, an automatic unloading device, an automatic rice rolling device and a conveying device to provide a grape leaf rice rolling machine with a high degree of integration. It not only has high grape leaf rice rolling efficiency, but also Easy to operate and maintain
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
Rice Hopper Volume
|
30L
|
|
|
|
2
|
Rotary Table Diameter
|
1000
|
|
|
|
3
|
Capacity
|
500pcs/hour
|
|
|
|
4
|
Overall Dimension
|
2200*1530*1560mm
|
|
|
|
5
|
Total Power
|
1KW
|
|
|
|
6
|
Rolling Parts Quantity
|
4 sets
|
|
|
|
7
|
Control System
|
PLC Control
|
|
|
