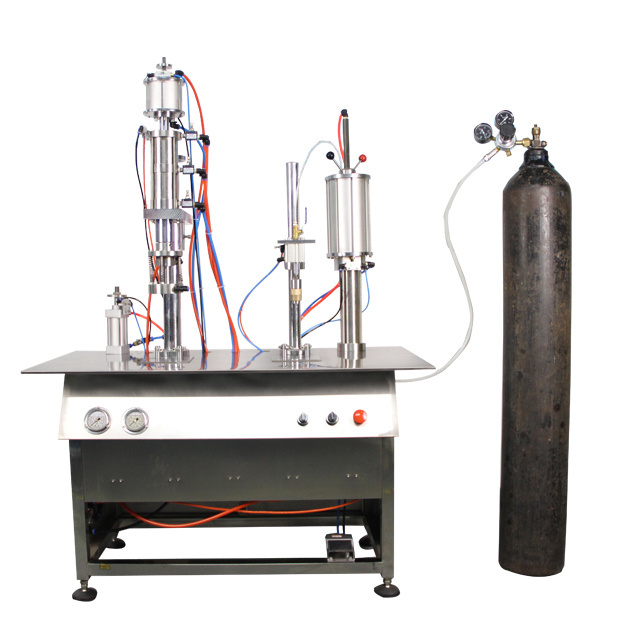

from left to right : Vacuum and Crimping Head and Gas Head.
The machine is applied to fill oxygen cans, portable oxygen, breathing mountain oxygen, sport oxygen cans .
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
0V
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
JRSEA
-
Dimension(L*W*H):
-
1000*550*1630mm
-
Weight:
-
150KG
-
Product name:
-
3 in 1 filling machine
-
Filling speed:
-
3000-5000cans/shift(8 hours)
-
liquid Filling volume:
-
20-750ml(can be choose) 20-500ml(can be choose)
-
Gas filling volume:
-
20-500ml(can be choose)
-
Sealing accuracy:
-
≤±1%
-
Bottle type:
-
Aerosol
-
Working Pressure:
-
0.65-1.0Mpa
-
Applicable aerosol can diameter::
-
35-65 (mm)
-
Applicable aerosol can height:
-
80-350(mm)
-
Packaging size:
-
1000*600*1680mm 150kg
-
Certification:
-
CE ISO
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
Plastic, Wood
-
Filling Accuracy:
-
air filling machine
-
Voltage:
-
0V
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
JRSEA
-
Dimension(L*W*H):
-
1000*550*1630mm
-
Weight:
-
150KG
-
Product name:
-
3 in 1 filling machine
-
Filling speed:
-
3000-5000cans/shift(8 hours)
-
liquid Filling volume:
-
20-750ml(can be choose) 20-500ml(can be choose)
-
Gas filling volume:
-
20-500ml(can be choose)
-
Sealing accuracy:
-
≤±1%
-
Bottle type:
-
Aerosol
-
Working Pressure:
-
0.65-1.0Mpa
-
Applicable aerosol can diameter::
-
35-65 (mm)
-
Applicable aerosol can height:
-
80-350(mm)
-
Packaging size:
-
1000*600*1680mm 150kg
-
Certification:
-
CE ISO
Product Description
Product Application
This machine consist of 1 head Vacuum Crimping device and 1 head propellant filler on One working table.
Saves labor, Good Quality and Good price.
The crimping head is mainly used to seal on the corrected and pressed valve with internal expanding mode. It needs to finish two steps respectively. Firstly, the pressure cylinder presses valves on the opening to make the valve rubber gasket flatten against the opening, usually the compression is 0.2- 0.3mm. Then, the pressure cylinder sends a signal to inform sealing cylinder to operate.
By replacement,to make the filling more than 99.9% purity.The machine also suit for filling propellant takes compressed air (purification) to substitute propane and butane liquefied petroleum gas.
|
SPECIFICATIONS
|
|
|
|
|||
|
Production capacity:
|
Production Capacity
|
4000-5000cans/shift
|
shift(8 hours)
|
|||
|
|
Max Gas volume
|
100-1000ml (special cans can be customized
|
ml
|
|||
|
|
Sealing accuracy
|
≤±1%
|
|
|||
|
Perfomances
|
Working Pressure
|
0.65-1.0
|
Mpa
|
|||
|
|
Maximum air consumption
|
0.5
|
(m3/min)
|
|||
|
|
Applicable aerosol can diameter
|
35-65
|
(mm)
|
|||
|
Machine
|
Applicable aerosol can height
|
80-350
|
(mm)
|
|||
|
|
Available valve
|
1"(25.4mm)
|
|
|||
|
|
Filling Accuracy:
|
≤±0.03
|
MPa
|
|||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts, and operation parts.
3) High pressure double crank to control the die opening and closing.
4)The sealing machine adopts mechanical motion control, simple air channel, rational Structure, adjustment is convenient, the sealing head is made of high quality stainless Steel, anti-fatigue, resistant to shock, sealing quality is reliable.
5) The machine is pneumatic.
6) Good quality product selling even to Europe and USA.
Certifications
Detailed Images
Machine Parts
Main Features
The capper is fast, reliable, steady and easy to adjust sealed diameter and sealed depth manually without any tool. Gas filling head has fully absorbed the advanced filling machine technology from the Swiss Pamasol Company. so as to accelerate filling speed and accurate measuring. The measuring cylinder of inflator is made of 304 stainless steel materials.
Machine Parts
2 cylinders from from left to right: Vacuum crimping cylinder and oxygen cylinder.
The sealing machine adopts mechanical motion control, simple air channel, rational Structure, adjustment is convenient, the sealing head is made of high quality stainless Steel, anti-fatigue, resistant to shock, sealing quality is reliable.
Direct connection with Oxygen tank
Connecting oxygen tank to the machine is very easy.
The machine is pneumatic ( no need electricity ).
Air compressor need. The machine is strong and reliable, our famous customer all from Australia, Canada, USA, Romania, Italia and Europeans countries. Producing oxygen canister has never been so easier till you use this machine.
