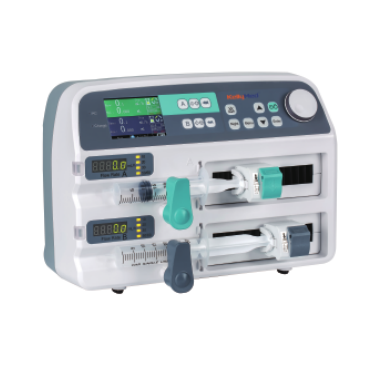

Dual Channel Syringe Pump

Model

SP -702

Syringe Size

10, 20, 30, 50/60 ml

Applicable Syringe

Compatible with syringe of any standard

VTBI

0.1-10000 ml
< 100 ml in 0.1 ml increments
≥100 ml in 1 ml increments

Flow Rate

Syringe 10 ml: 0. 1-420 m/h
Syringe 20 ml: 0.1-650 m/h
Syringe 30 ml: 0.1-1000 ml/h
Syringe 50/60 ml: 0.1-1600 ml/h
< 100 m/h in 0.1 m/h increments

≥100 ml/h in 1 ml/h increments

Bolus Rate

Syringe 10 ml: 200-420 m/h
Syringe 20 ml: 300-650 m/h
Syringe 30 ml: 500-1000 m/h
Syringe 50/60 ml: 800-1600 ml/h

Anti-Bolus

Automatic

Accuracy

±2% (mechanical accuracy s1%)

Infusion Mode

Flow rate: ml/min, ml/h
Time-based
Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h etc.

KVO Rate

0.1-1 ml/h (in 0.1 ml/h increments)

Alarms

Occlusion, near empty, end program, low battery, end battery,
AC power off, motor malfunction, system malfunction, standby,
pressure sensor error, syringe installation error, syringe drop off

Additional Features

Real-time infused volume, automatic power switching, automatic
syringe identification, mute key, purge, bolus, anti-bolus, system
memory, history log, separate channel alarm, power saving mode

Drug Library

Available

Occlusion Sensitivity

High, medium, low

History Log

50000 events

Wireless Management

Optional

Power Supply, AC

110/230 V (optional), 50/60 Hz, 20 VA

Battery

9.6±1.6 V, rechargeable

Battery Life

Power saving mode at 5 ml/h,
10 hours for single channel, 7 hours for double channel

Working Temperature

5-40℃

Relative Humidity

20-90%

Atmospheric Pressure

860-1060 hpa

Size

330*125*225 mm

Weight

4.5 kg

Safety Classification

Class Ⅱ, type CF
